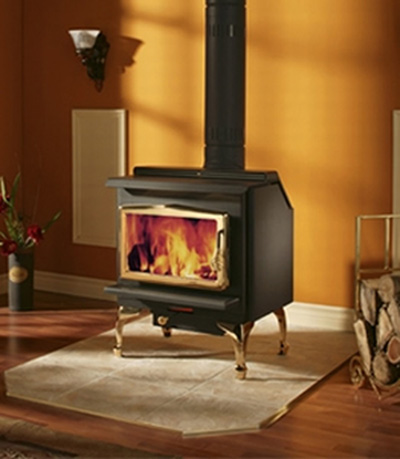

1100 Osburn Wood Stove - Discontinued

Osburn · 1 document

About

This model has been discontinued due to lack of demand, inventory is limited, please check for availability. This is an informational page for those who have already purchased the unit.

The Osburn 1100 woodstove offers a wide range of possible configurations. It is primarily a freestanding model with pedestal or legs (black, gold or brushed nickel plated) as options, but it can also be easily placed in an alcove or fireplace because its back face is angled at 45 degrees. The top air hood improves heat distribution, regardless of where the stove is installed. The Osburn 1100 burns standard 16'' logs and has a burn time of up to five hours in slow combustion mode. Overall, this versatile and compact wood stove gives a most impressive performance.

Osburn Model 1100 Woodburning Stove

  •  Non-catalytic, efficient secondary combustion
  •  Firebrick lined
  •  Removable baffle
  •  Front access ash pan with pedestal and leg models
  •  Large viewing area
  •  Mobile home and alcove approved
  • 18" firebox
  • 12" height under baffle
  • Clean glass air was system
  • Approved as a hearth mounted stove for masonry or zero clearance fireplacesGold plated door
  • Gold plated or black leg models (includes ash pan)
  • Fresh air kit
  • Rear mounted fan
  • Low profile elbow
  • Mobile home air control panel (Canada only)

Specifications

SpecificationsOsburn Model 1100 Wood Stove
Type of fuel Wood
Recommended surface 500 to 1,400 sq.ft.
Maximum output - EPA test wood 35,000 BTU/h.
Maximum output - seasoned cord wood 45,000 BTU/h.
Color Metallic black
Exterior dimensions
Width 23.37"
Depth 23.37"
Height 29.0"
Exhaust pipe diameter 6"
Minimum chimney height 12'
Firebox dimensions
Width18.0"
Depth12.5"
Height11.25"
Log positioning Over width
Maximum log length 16"
Door opening dimensions
Width15.5"
Height 8.5"
Type of door Ceramic glass
Glass surface 125 sq.in.
Weight 250 lbs (114 kg)
Warranty Limited lifetime
Test standard - safety ULC S-627 / UL 1482
Test standard - emissions EPA Method 28
This model is no longer sold new. Its manuals stay here, and we still supply parts.
