HomeBrandsNapoleon › Napoleon Huntsville 1100 Wood Stove - Discontinued

Napoleon Huntsville 1100 Wood Stove - Discontinued

Napoleon · 2 documents

About

Napoleon Huntsville 1100 Wood Stove features a solid, dynamic appearance with performance to match.  The Huntsville 1100 pedestal model is designed to provide you with outstanding heat efficiencies while achieving low emissions.

Napoleon Huntsville 1100 Wood Stove features a decorative, full canopy top.  The cooking trivet deflects heat forward into the room while providing an attractive "simmering" spot.  The canopy on the top is a feature that helps to convect heat off the stove and direct it out of the front of the stove instead of it radiating directly up to the ceiling.  Other features of the Napoleon lend to the convection nature of the stove.  Customers report that they have more even heat throughout their home with the Napoleon convection style stoves, such as the model 1100.

The appealing pedestal base provides a well concealed inlet for combustion air which can be drawn from outside to add even more heating efficiency.

The easy operation of a single lever burn control regulates primary and secondary air establishing a perfect mixture and providing a clean burn.

Wrap around side shields add a delicate balance of elegance and functional practicality helping to disperse heat evenly and reduce clearances to combustibles.

Large viewing area -- air wash in combination with high temperatures keeps the viewing glass clean.

The large ash dump with convenient folding lid and dual carrying handles ad to the ease of cleaning

The 6" flue assures you of efficiency and cost saving installations

Secondary air tubes insulated with ceramic fiber and protected with a stainless steel cover plate ensures complete combustion.

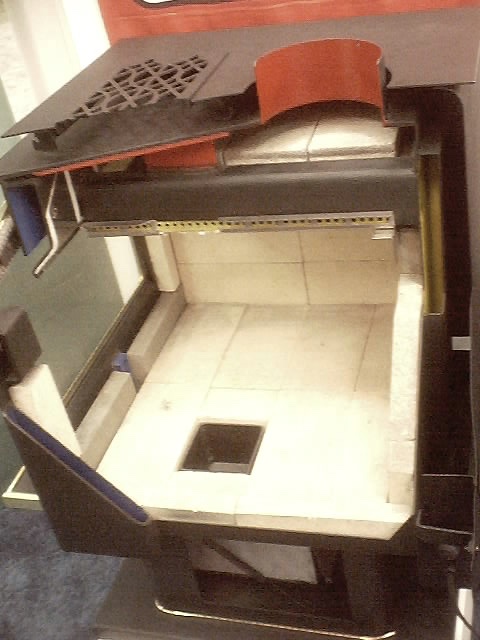

Upper firebox lined with ceramic fiber baffles. The advantage of light weight ceramic is three fold: Ease of installation: only two pieces, lighter, easier to handle, the thermal dynamics of ceramic fiber allows for quicker startup and a hotter, cleaner burn.

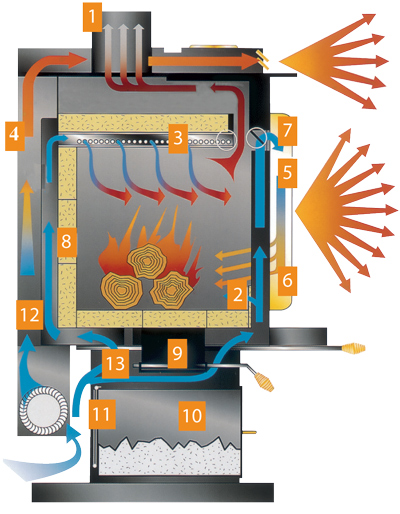

Cool room air is circulated around the firebox, heated and returned to the room.

The non-catalytic high tech design eliminates the need for a delicate ceramic catalytic combustor which can deteriorate over time.

The black trivet is a standard feature.

The Napoleon Huntsville 1100 Wood Stove is available in painted black and  porcelain enamel black or almond (green is no longer available).

President's Limited Lifetime Warranty

Specifications

SpecificationsNapoleon Huntsville 1100 Wood Stove
Emissions (grams per hour)4.1
Width x Height x Depth25 1/2" x 33 1/4" x 22 1/2"
Firebox Chamber (W.H.D.)18" x 12" x 13 1/2"
Firebox Capacity1.7 cu. ft.
Door Size (height x width)14 3/4" x 19 3/8"
Weight without bricks215 lb.
Weight of Bricks110 lb.
Approximate Area Heated* sq. ft.600-1,500
Heat output BTU/h**11,700 - 42,200
Heat output BTU/h (high burn)***55,000 BTU
Burn Time (low fire)*7 hours
Catalytic Combustorno
Mobile Home approvedyes
R-2000 approved (Canada) yes
Recommended log size 12"
Max. Log Size18"
Outside Combustion Airyes
Flue diameter 6"
Flue size prefabricated 6"
Minimum Clearances with Single Wall Chimney Connector from Stove to Combustibles
Rear 10"
Side 12"
Corner 6"
Minimum Clearances with Approved Double Wall Pipe from Stove to Combustibles
Rear 6"
Side 10"
Corner 2"
This model is no longer sold new. Its manuals stay here, and we still supply parts.
