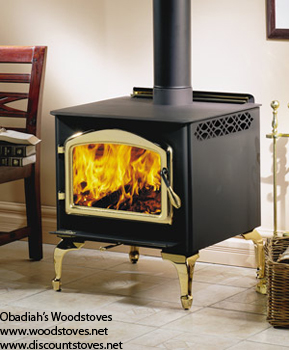

Napoleon Huntsville 1400PL Leg Stove - Discontinued — Manuals & Specs

Discontinued

Same great features of the 1100PL but with more heating capacity for larger rooms.

“This product has been discontinued.This page is provided for informational purposes.”

The easy operation of a single lever burn control regulates primary and secondary air establishing a perfect mixture and providing a clean burn

EPA approved to Phase 2 of the 1990 test Standards and below Washington's DEQ Phase 3 with emissions as low as 3.7 grams per hour

Economical 6" flue assures you of efficiency and cost saving installations

Secondary air tube insulated with ceramic fiber and protected with a stainless steel cover plate ensures complete combustion

Upper firebox lined with ceramic fiber baffles. The advantage of light weight ceramic is three fold:

Ease of installation: only two pieces

Lighter, easier to handle.

The thermal dynamics of ceramic fiber allows for quicker startup and a hotter, cleaner burn

Non-catalytic high tech design eliminates the need for a delicate ceramic catalytic combustor which can deteriorate over time.

Large viewing area -- air wash in combination with high temperatures keeps the viewing glass clean

President's Limited Lifetime Warranty

Specifications	Napoleon Huntsville 1400PL Leg Stove
Emissions (grams per hour)	3.7
Width x Height x Depth	25 1/2" x 33 1/4" x 27"
Firebox Chamber (W.H.D.)	18" x 12" x 18"
Firebox Capacity	2.25 cu. ft.
Door Size (height x width)	14 3/4" x 19 3/8"
Weight without bricks	250 lb.
Weight of Bricks	145 lb.
Approximate Area Heated* sq. ft.	1,000 - 2,000
Heat output BTU/h**	11,400 - 41,300

Heat output BTU/h (high burn)***	70,000 BTU

Burn Time (low fire)*	9 hours
Catalytic Combustor	no
Mobile Home approved	no
R-2000 approved (Canada)	yes
Max. Log Size	18"
Outside Combustion Air	no
Flue diameter	6"
Flue size prefabricated	6"
Minimum Clearances with Single Wall Chimney Connector from Stove to Combustibles
Rear	12"
Side	12"
Corner	6"
Minimum Clearances with Approved Double Wall Pipe from Stove to Combustibles
Rear	6"
Side	10"
Corner	4"
