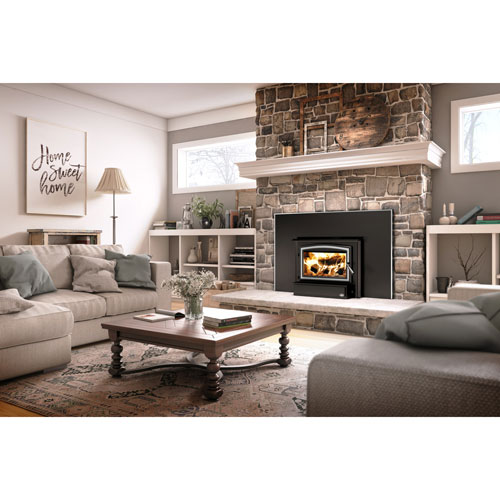

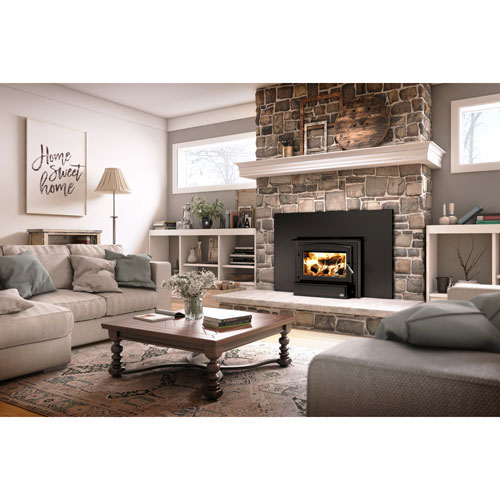

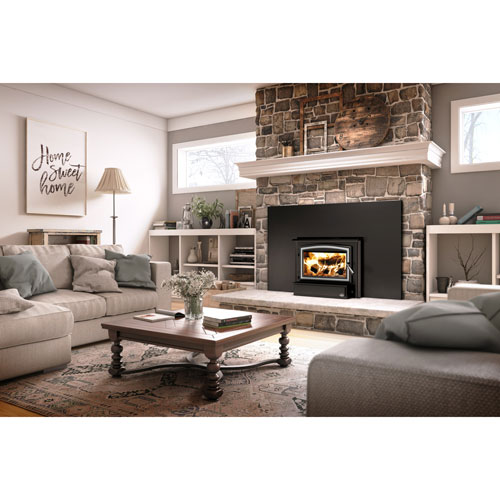

Osburn 1700 Wood Burning Insert
Osburn · 1 document
About
Like its bigger partner the Osburn 2000, the 1700 supplement offers a revamped variant of ideal size to give ambiance and warmth. Give yourself a genuine sanctuary of harmony with an eco-accommodating gadget that puts you at the center of a heating experience for a long time.
*Revised 7/20/20
Give yourself a genuine sanctuary of harmony with an eco-accommodating gadget whose average emissions outflow rate is extraordinarily low at 1.26 g/h! Like its bigger partner the Osburn 2000, the 1700 supplement offers a revamped variant of ideal size to give ambiance and warmth.
All around, this supplement is designed with top notch materials that put you at the center of a heating experience for a long time: high-thickness blocks, cast iron entryway and quiet blower for expanded strength. Find the various choices to modify the vibe of your apparatus, accessible in black or brushed nickel plated: entryway overlays, faceplates and faceplate trims
Features:
- The 1700 Model heats up to 1,800 sq. ft.
- Refractory lined bricks
- Secondary-air system
- Glass Air wash System
- Adjustable threaded legs
- Limited Lifetime Warranty
- UL listed
- EPA Certified
- 6 hr burn time
- 1.9 cu. ft. firebox volume
- 144 CFM Blower included equipped with an automatic heat sensor
Options:
|
Fresh Air Intake Kit Oval |
Insulated Flex Pipe for Fresh Air intake Kit (Available in three sizes) |
|
Fresh Air Intake Register w/ Air tight Damper |
Offset Liner Adapter |
|
Rigid Firescreen |
Specifications
| Model 1700 Wood burning Insert | |
| Fuel Type | Wood |
| Heating Area | 500 - 1,800 sq ft. |
| Firebox Volume | 1.9 cu. ft. |
| Max Burn Time | 6 hrs. |
| Max Heat Output | 65,000 BTU/hr (19 kW) |
| Optimum Efficiency | 78% |
| Average Particulate Emissions Rate | 1.26 g/hr |
| Average CO | 58 g/hr |
| Max Log Length | 18" |
| Flue Outlet Diameter | 6" |
| Minimum Chimney Height | 15 ft. |
| Glass Surface (W x H) | 15-3/4" x 9-3/8" |
| Overall Dimensions (H x W x D) | 21-1/4" x 27-1/8" x 22-3/8" |
| Door Opening Dimensions ( H x W) | 8-3/4" x 17-1/4" |
| Firebox Dimensions ( H x W x D) | 11-7/8" x 19-5/8" x 13-1/2" |
| Steel Thickness (Body x Top) | 3/16" x 5/16" |
| USA standard (emissions) | EPA 2020 |
| Warranty | Limited lifetime |
| Clearance to Combustibles | |
| Top - Measured from platform the appliance is installed on | 84" |
| Side mantle to Unit | 9" |
| Top mantle to Unit | 27" |
| Side Wall to Unit | 16" |
| Minimum Floor Protection in front | 16" |
