2200 Osburn Bay Window Wood Insert - Discontinued
Osburn · 2 documents
About
This product has been discontinued as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.
The Osburn 2200 insert - superior features in an eye-catching, high performance wood stove.
The Osburn 2200 Insert is focused on elegance and efficiency. Not only does it have a bay window to provide grace and beauty to it, but the window improves heat output. Designed to have a slow combustion rate to allow for longer burn times, the insert with the aid of an ultra silent standard blower, provides heat for many hours even through the night. The Osburn 2200 insert - superior features in an eye-catching, high performance wood stove.
Features: 2200 Osburn Bay Window Wood Insert
- 75,000 BTU/h.
- Heating capacity: 800 to 2,000 sq.ft.
- Firebox volume: 2.3 cu ft
- Maximum log length: 18"
- Adjustable handle
- Self-cleaning glass system
- 130 cfm blower
Options:
- Black or Brushed Nickel plated door overlay
- Black or Brushed Nickel plated Faceplate Trim Kits in three sizes
- Three different Faceplate sizes in Black or Brushed Nickel finishes
Specifications
| Specifications | Osburn 2200 |
| Type of fuel | Wood |
| Recommended surface | 800 to 2,000 sq.ft. |
| Blower | 130 cfm |
| Max. BTU - EPA test wood | 30,400 BTU/h. |
| Max. BTU - seasoned cord wood | 75,000 BTU/h. |
| Color | Metallic black |
| Minimum fireplace opening | |
| Width | 28" |
| Depth: | 17.75" |
| Height: | 21.75" |
| Exterior dimensions | |
| Width | 32 7/8 |
| Depth: | 28 3/8" |
| Height: | 23 1/8" |
| Exhaust pipe diameter | 6" |
| Firebox dimensions | |
| Width | 11 1/2" |
| Depth: | 17" |
| Height: | 19" |
| Log positioning | Over width |
| Maximum log length | 18" |
| Door opening dimensions | Width: 19.0" |
| Height: | 9.0" |
| Minimum clearances to combustibles | |
| Combustible side wall to unit | 17" |
| Combustible side mantle to unit | 10" |
| Combustible top mantle to unit | 14" |
| Combustible shelf to unit | 22" |
| Min. floor protection in front of unit | 16" |
| Projection in the room min / max | 10.5" / 10.5" |
| Glass surface | 265 po. ca. |
| Weight | 380 lbs (172 kg) |
| Warranty | Limited lifetime |
| Test standard- safety | ULC S-627 / UL 1482 |

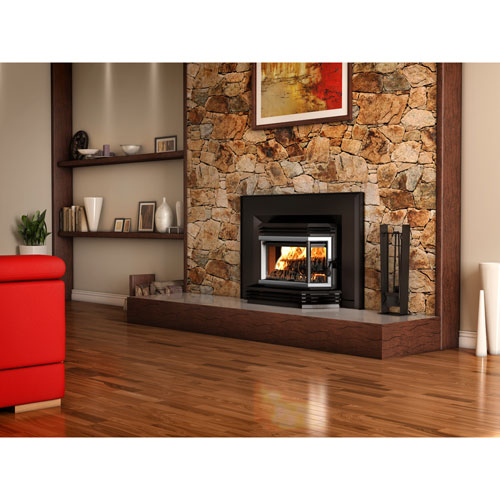

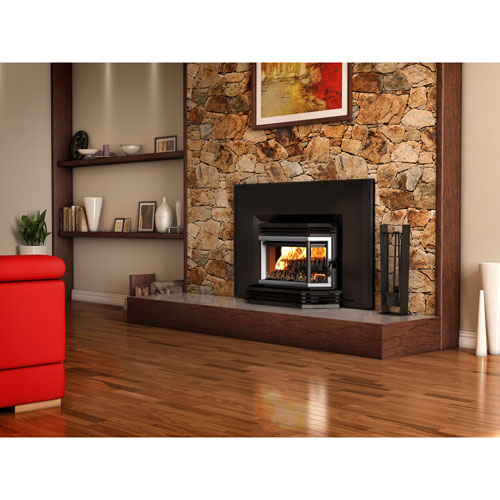

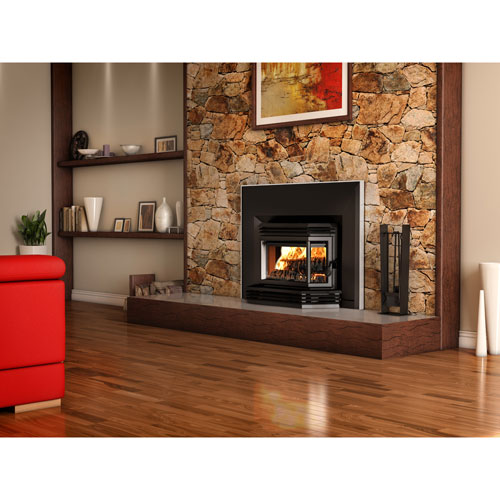

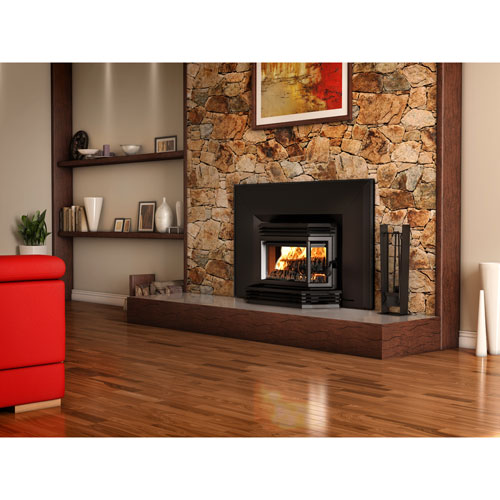

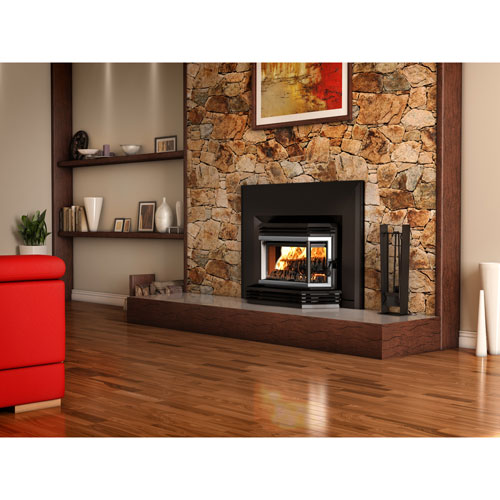

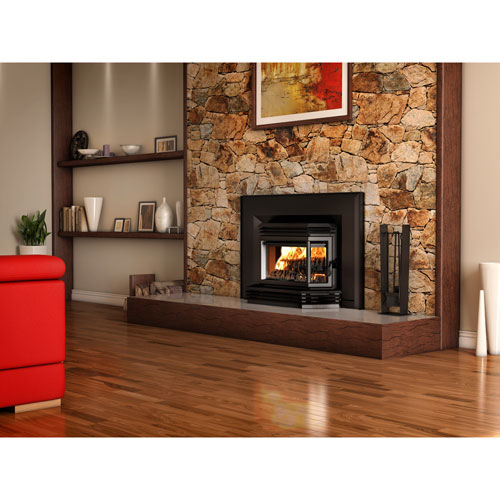

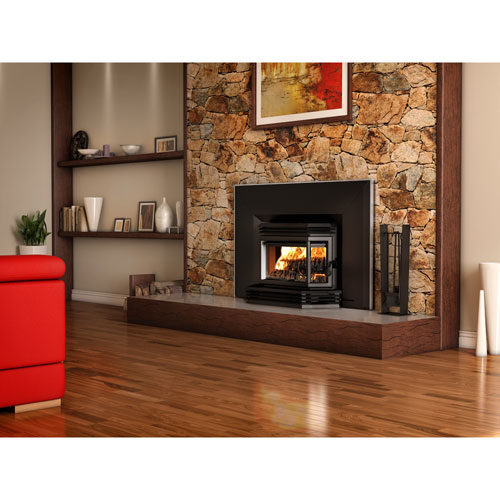

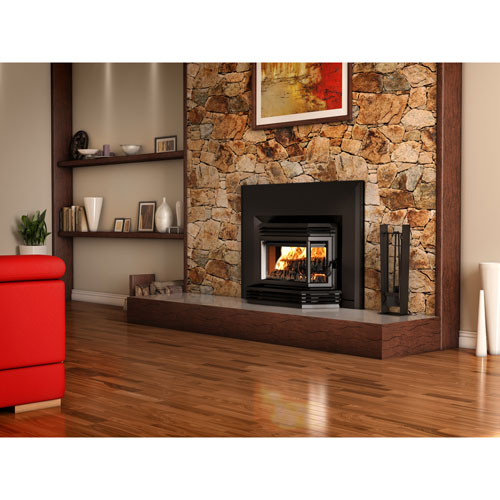

Photos
