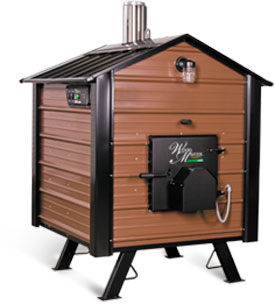

3300 WoodMaster Outdoor Wood Boiler/Furnace - Not Available

WoodMaster · 3 documents

About

This product is no longer available through Obadiah's.

The WoodMaster 3300 wood furnace, plumbed with a single heating loop, is an economical choice when there is no need for multiple hook-ups. The 3300 furnace comfortably heats an average-sized home and its hot water.

Features

  • No fuels enter the house to limit smoke, soot, fire hazards and the risk of dangerous carbon monoxide buildup
  • Round chamber design provides optimum internal air movement and water circulation
  • 40% fewer seams than a square box, less chance of cracking or leaking and minimal pitting
  • No dead spots, so creosote doesn't build-up
  • Digital Electronic Temperature Control (ETC)
  • Easy-to-read display

Color Options

  • Black
  • Charcoal
  • Brown
  • Green


Click here for Single Line PEX Pipe

Click here for Dual Line PEX Pipe

Specifications

SpecificationsWoodMaster 3300 Wood Boiler/Furnace
BTU's75,000 btu/hr on a 12 hr burn
Fire Box 34” x 32”
Door Size 20” x 21”
Thickness1/4” fire drum & water jacket
Draft ControlFan
Overall Size5’2” x 4’9” x 7’10”
Heating Area Approx. 2,000 sq.ft.
Total Water Capacity 105 gallons
WarrantyLimited Lifetime
Shipping Weight 1,421 lbs.
This model is no longer sold new. Its manuals stay here, and we still supply parts.
