AFS 1100 WoodMaster Pellet Boiler/Furnace - Discontinued
WoodMaster · 3 documents
PDF
Brochure
AFS-1100-brochure.pdf · 2.0 MB
PDF
Owner's Manual
AFS1100Manual.pdf · 572 KB
PDF
Warranty
AFS-1100-Warranty.pdf · 84 KB
About
THIS PRODUCT HAS BEEN DISCONTINUED, THIS PAGE IS UP FOR INFORMATIONAL PURPOSES ONLY

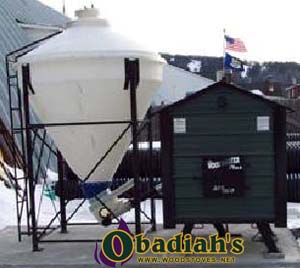

The WoodMaster AFS 1100 furnace uses wood pellets, corn, small grains and other materials to heat multiple buildings, including a home, garage or workshop, pool, spa, greenhouse or commercial structure.
Features
- No fuels enter the house to limit smoke, soot, fire hazards and the risk of dangerous carbon monoxide buildup
- 100% sawdust wood pellets
- Sawdust compressed and formed into 1/4-inch diameter cylinders and packaged in 40 lb. bags.
- Heat transfer design draws more heat from burning a comparable amount of corn, small grains or wood pellets than competitive furnaces
- Digital Electronic Temperature Control (ETC) is one center for operating temperature settings, blower, reset, water level indicator and nightlight
- Easy-to-read display
Click here for Single Line PEX Pipe
Click here for Dual Line PEX Pipe
Specifications
| Specifications | WoodMaster AFS 1100 |
| Fire Box | 34” x 32” |
| Door Size | 16” x 16” |
| Thickness | 1/4” fire drum & water jacket |
| Draft Control | Fan |
| Overall Size | 7’ x 5’ x 6’ |
| Heating Capacity | 175,000 Btu |
| Total Water Capacity | 120 gallons |
| Limited Warranty | 5 years |
| Shipping Weight | 1,800 lbs. |
| Colors | Black Charcoal Brown Green |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
Photos







Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
406-300-1776
