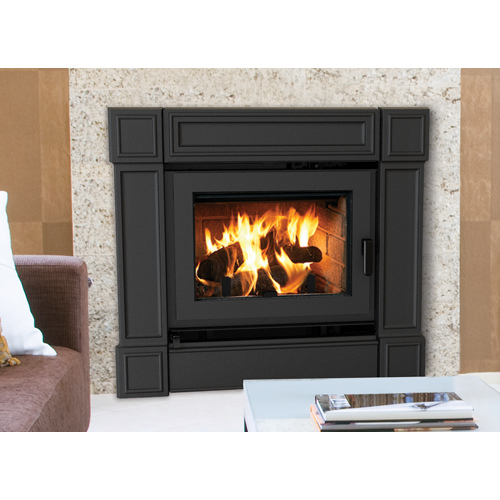

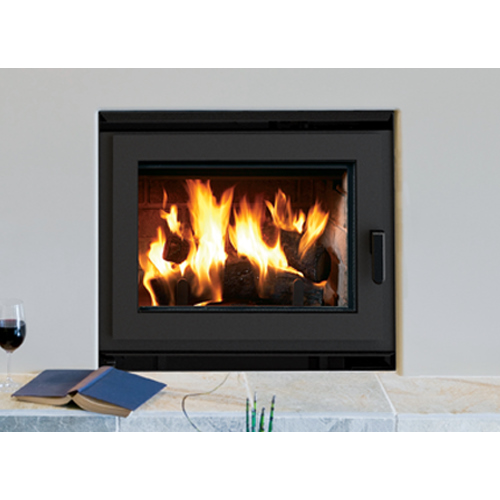

Astria Ladera High Efficiency Catalytic Wood-Burning Fireplace
Astria · 2 documents
PDF
Manual
Astria-Ladera-Wood-Burning-Catalytic-Fireplace-Manual.pdf · 4.5 MB
PDF
Specifications
Astria-Ladera-Wood-Burning-Catalytic-Fireplace-Specifications.pdf · 704 KB
About
The Ladera high-efficiency EPA certified wood-burning fireplace is a compact and stylish heater, perfect for any decor.
Including advanced combustion system technology and variable combustion air, this fireplace allows you to enjoy extended continuous burns without needing to add more wood to the fire as often. A compact, yet open firebox accepts logs up to 18 inches, resulting in large flames, long burn times and sustained warmth. And with a clean-face design and expansive viewing area, the Ladera allows you to take pleasure in the beauty of an unobstructed fire.
Features
- High efficiency, EPA certified wood heater
- Clean and stylish circulating radiant design
- Ceramic glass opening with air wash system that keeps the glass clean
- Precision laser-cut heavy door with heat resistant door handle and easy-close latch
- Primary air combustion control for variable heat output
- Advanced Combustion System with bypass control for maximum performance
- Heats up to 1,500 square feet
- 175 CFM blower included for gentle air distribution into the room
- 2.0 cubic feet insulated firebox that accepts up to 18" logs for increased performance
- White stacked, textured, interior panels with integrated ash lip and heavy steel log retainer
- Durable, high-temperature paint finish
- Includes insulated outside air kit (required for use)
- Lifetime Limited Warranty
Specifications
| Astria Ladera Wood Burning Fireplace | Specifications |
| Heating Area | 250-1500 sq. ft. |
| Firebox Volume | 2 cu. ft. |
| Max Burn Time | 8 hr. |
| Max Heat Output | 55,000 BTU/h |
| Overall Heat Output Rate Min to Max | 8,700 - 25,700 BTU/h |
| Average Efficiency | 63% |
| Average Particulate Emissions | 1.8 g/h |
| Max Log Length | 18" |
| Chimney Diameter | 6" |
| Min Chimney Height | 12 ft. |
| Overall Dimensions ( H x W x D) | 37-3/4"H x 36"W x 22"D |
| Firebox Dimensions (H x W x D) | 13-1/4"H x 19-1/2"W x 12"D |
| Weight | 215 lbs. |
| USA standard (Emissions) | EPA 2020 |
| Warranty |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
