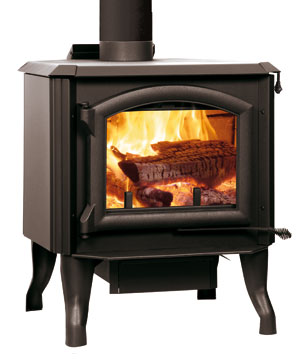

J.A. Roby Atmosphere Cookstove - Discontinued* — Manuals & Specs

*PRODUCT DISCONTINUED - This page is for informational purposes only.

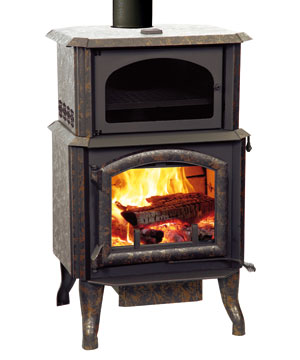

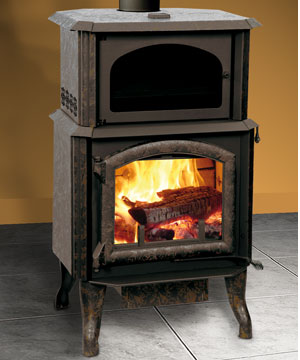

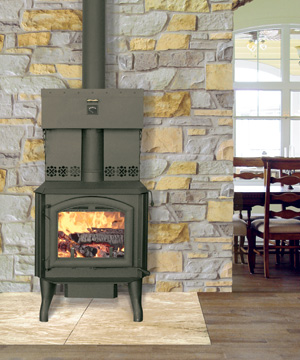

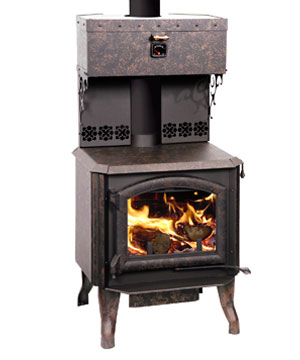

Model with Oven or Food Warmer options
Cast iron door
High efficiency combustion
Heating by convection and radiation
Air-wash system
Low clearances to combustible materials
Easy access ash drawer
Offered in a one-tone finish: metallic black or in two rustic style finishes: Metallic black hammered charcoal or Metallic black hammered brown

J.A. Roby Atmosphere	Without Oven / With Oven
Fuel	Wood / Wood
Weight	380 lbs / 172 kg / 400 lbs / 181 kg
Recommended Heating Area	500- 2000 pi² - 46- 186 m² / 500- 2000 pi² - 46- 186 m²
Heat Output	Up to 59,000 BTU/h / Up to 59,000 BTU/h
Type of chimney	2100° F. - 650° C / 2100° F. - 650° C
Recommended Flue	6" - 15.24 cm / 6" - 15.24 cm
Overall Dimensions W/H/D	26.5" x 42" x 26" - 67.3 cm x 106.7 cm x 66 cm / 26.5" x 32.6" x 26" - 67.3 cm x 73.7 cm x 66 cm
Firebox Dimensions W/H/D	19" x 13" x 18.5" - 48.3 cm x 33 cm x 47 cm / 19" x 13" x 18.5" - 48.3 cm x 33 cm x 47 cm
Door Opening	16" x 10 ½" - 40.64 cm x 26.67 cm / 16" x 10 ½" - 40.64 cm x 26.67 cm
Minimum Chimney Height	12' - 3.66 m / 12' - 3.66 m
Maximum Log Length	18" - 45.72 cm / 18" - 45.72 cm
Standard test - emissions	EPA / EPA
Standard test - safety	ULC- S-627 / UL 1482 / ULC- S-627 / UL 1482
Minimum clearances to combustibles
Side	12" - 30.5 cm / 12" - 30.5 cm
Corner	12" - 30.5 cm / 12" - 30.5 cm
Top (measured from floor)	84" - 213.4 cm / 84" - 213.4 cm

J.A. Roby Atmosphere Cookstove - Discontinued*
