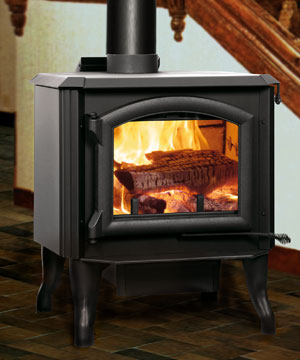

J.A. Roby Atmosphere Stove - Discontinued* — Manuals & Specs

*PRODUCT DISCONTINUED - This page is for informational purposes only.

Reaching up to 59 000 BTU/h, the Atmosphere has a high output and nice, even warmth that will keep any customer happy. Included in this model is a cast iron door and an ashtray drawer, which allow easy cleanup, and the option between a natural convection or radiation system. A fire-screen is also available as an option in order to prolong memorable moments of warmth. The Atmosphere is available in one tone or rustic style finish.

Features

One door model
Cast iron door
High efficiency combustion
Heating by convection and radiation
Low clearances to combustibles materials
Air-wash system
Easy access ashes drawer
Offered in one tone finish: metallic black, honey-glow or rustic style finish: Metallic black hammered charcoal, metallic black hammered brown

Options

Oven
Oven Grill
Food Warmer
Decorative Top
Blower thermodisc kit
Rigid fire-screen

Specifications	J.A. Roby Atmosphere
Type of fuel	Wood
Recommended heating area	500- 2000 pi² - 46- 186 m²
Maximum output	59000 BTU/h
Exteriors dimensions
Width	26 ½" - 67.31 cm
Height	29" - 73.66 cm
Depth	26" - 66.04 cm
Exteriors dimensions with oven
Width	26 ½" - 67.31 cm
Height	42" - 106.68 cm
Depth	26" - 66.04 cm
Type of chimney	2100° F. - 650° C
Exaust pipe diameter	6" - 15.24 cm
Recommended chimney diameter	6" - 15.24 cm
Minimum chimney height	12' - 3.66 m
Firebox dimensions
Width	19" - 48.26 cm
Height	13" - 33.02 cm
Depth	18 ½" - 46.99 cm
Door opening dimensions	16" x 10 ½" 40.64 cm x 26.67 cm
Minimum clearances to combustibles
Side	12" - 30.48 cm
Corner	12" - 30.48 cm
Top (measured from floor)	84" - 213.36 cm
Maximum log length	18" - 45.72 cm
Weight	380 lbs / 172.36 kg
Warranty	Limited lifetime
Standard test - emissions	EPA
Standard test - safety	ULC- S-627 / UL 1482
