Buck Model 91 Stove or Insert EPA 2020
Buck Stove · 1 document
About
The Buck Model 91 Catalytic Wood Insert used as a masonry fireplace insert or as a freestanding unit easily accepts 23” logs and heats up to 3,200 square feet with an astonishing 62,745 BTU’s per hour. Features include a factory installed blower, high efficiency heat exchanger, ash removal tray and over-sized glass door with air wash system.
*Revised 7/29/20
Features:
- Color: Black, Gold, Pewter
- Fuel Type: Wood
- Max BTU Output: 10,400 to 62,745
- Specific Use: Bedroom Approved
- Vent Type: Wood Chimney Vent
- Rated heating capacity of 1800 to 3200 square feet
- Firebox volume of 4.4 cubic feet
- Accommodates 22" logs placed front to back or 23" logs placed side to side
- Features a standard ash pan for easy clean up
- Heat circulating blower for even room heating
- Outstanding 86% overall EPA efficiency rating
- Overall stove weight: 620 pounds
- Uses 8" diameter stovepipe
- Catalytic design for lower combustion temperatures and cleaner overall operation
- Emissions of 1.9 grams per hour
Options
|

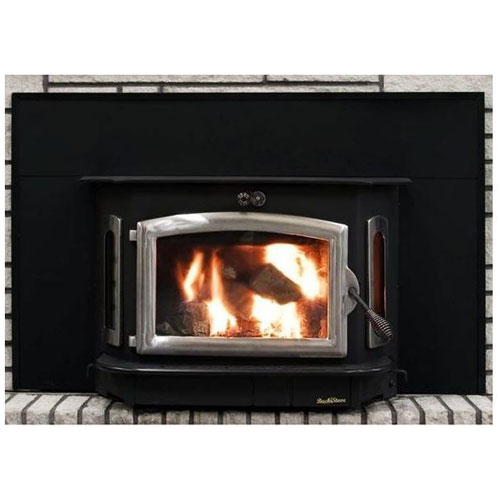

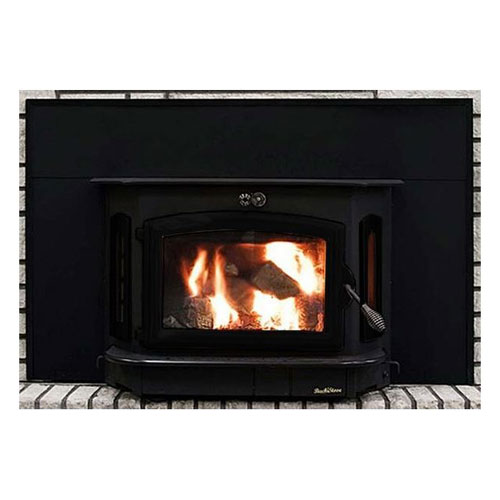

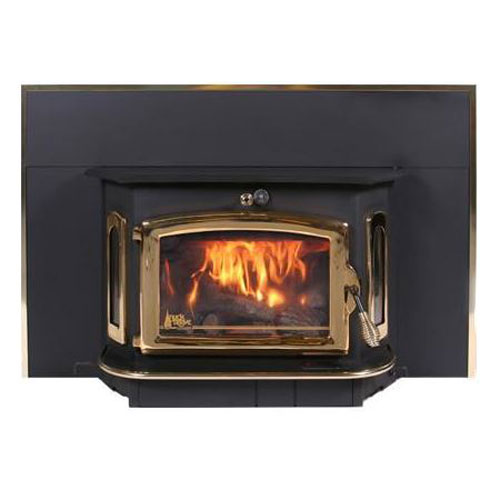

Door Colors Available in: Black, Pewter, and Gold
|
Insert Models Available with Standard (32"H x 49 1/2"W) and Oversize (35"H x 55 1/2"W) Surrounds |
Surround Trim Kit Available in: Black, and Gold
|
|
Regular Legs
|
Large Leg Kit
|
|
|
|
Black Pedestal
|
Specifications
| Specifications | |
| Stove Dimensions( W x H x D) | 23-3/16" H x 34-1/4"W x 28-7/8"D |
| Minimum Fireplace Dimensions (W x H x D) | 23-1/2"H x 31-3/4"W x 15-1/2"D |
| Freestanding Clearance to Combustible | 16" (Corner) / 23" (Rear) / 24" (Side) |
| Heating Capacity | 1,800 - 3,600 Sq. Feet |
| BTU output | 62,745 |
| Emissions | 1.9 g/h |
| Efficiency | 80.21% HHV basis |
| Firebox Volume | 4.4 cu ft |
| Log length | 22" (front to back) 23"(side to side) |
| Ash pan | Yes (comes standard) |
| Blower | Yes (comes standard) |
| Flue Size | 8” |
| Hearth Pad Size | 50" W x 54" D |
| Weight | 620 lbs |
| Mobile Home Approved | No |
| Pre Fab Approved | No |
