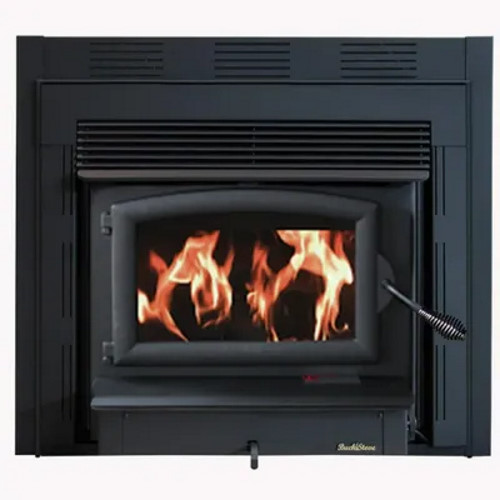

Buck Model 74 Non-Catalytic Zero Clearance Wood Fireplace
Buck Stove · 3 documents
PDF
Brochure
BuckStoveProductBrochure.pdf · 4.2 MB
PDF
Buck Tech Sheet
BuckStove-Tech-Sheet.pdf · 1.5 MB
PDF
Manual
Buck-Model-74-Wood-Stove-Insert-Manual.pdf · 3.4 MB
About
Currently Unavailable
The Buck Wood Burning Non-Catalytic Model 74 Zero Clearance Fireplace features a heating range of 1,500 up to 2,600 square feet, and is an ideal choice for zone heating, heating small homes, or even mobile home installations. EPA 2020 Approved.
Features:
- The Model 74 ZC Fireplace heats up to 2,600 square feet!
- Mobile Home Approved (With Outside Air Kit)
- Blower Included
- Minimum Framing Dimensions: 34-3/4"H X 37-1/2"W X 24-3/4"D
- EPA Tested Output BTU/H - 52,400
- Emissions G/H- 1.8
- Firebox Volume - 2.6 Cubic Feet
- Max Firewood Length - 22"
- Flue Size - 6"
- Efficiency - 73%
- Hearth Pad Size 38"W x 34"D
Door Options: Black, Gold, or Pewter
Specifications
| Specifications | Buck Model 21 Zero Clearance Wood Fireplace |
| Heat Area | 1500-2600 sq. ft. |
| Minimum Fireplace Dimensions | 34-3/4"H X 37-1/2"W X 24-3/4"D |
| Firebox Volume | 2.6 Cubic Feet |
| Max Log Length | 22" |
| Heat Output | 52,400 BTU |
| Emissions | 1.8 g/hr |
| Efficiency | 73% |
| Flue Pipe Diameter | 6" |
| Minimum Chimney Height | 15' |
| Hearth Pad Size | 38"W x 34" |
| Weight | 630 lbs |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
Photos


Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
406-300-1776
