Hearthstone Clydesdale 8491

Hearthstone · 2 documents

About

No Longer Available from Obadiah's.

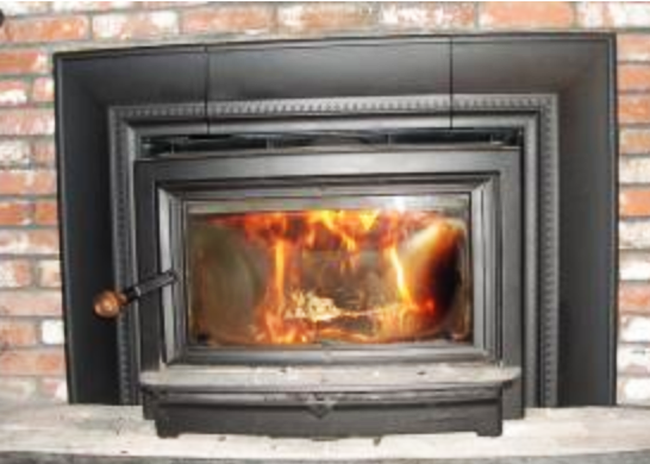

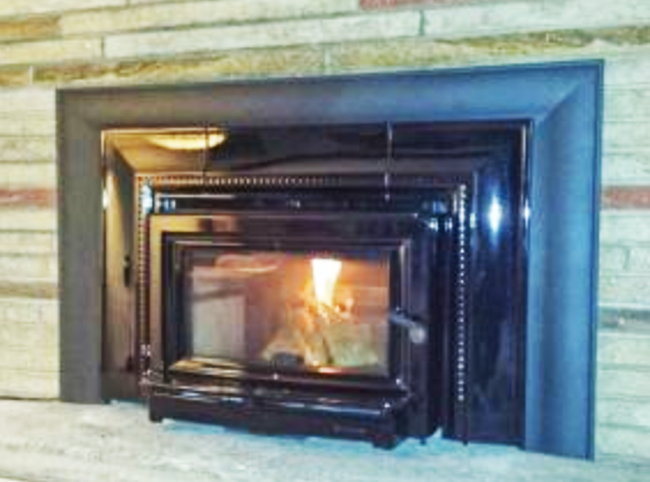

The Clydesdale 8491 wood burning fireplace insert is hand-crafted in Vermont by Hearthstone and is designed to heat a large space straight from a fireplace and with its thick soapstone panels that line the inside of the firebox, the unit will be warm long after the fire has gone out.  The Hearthstone 8491 wood-fired insert has generous depth and width allowing for loading wood up to 22” long to provide a strong burn time of up to 10 hours.

This stunning wood burning insert, the Clydesdale 8491, is in the Hearthstone Hergōm Cast Iron Collection - Hergōm being the Spanish foundry where every Hearthstone cast iron wood stove has its distinctive European beginnings.  Hearthstone has also incorporated into this beauty the benefits of advanced wood burning technology - without the cost and maintenance of a catalytic converter - to produce large amounts of heat and be clean burning being EPA certified.  Clydesdale 8491: warmth plus style!

Features:

  • The Hearthstone Clydesdale 8491 Wood Insert heats up to 2,000 sq.ft.
  • 2.4 cubic foot firebox holds up to 48 lbs of wood
  • Firebox soapstone-lined to ensure longer HeatLife (TM)
  • Large front door allows logs up to 22” in length for easy loading
  • Solid cast-iron with improved door handle and latch
  • Reversible door can be opened from the left hand side or the right
  • Three piece surround
  • Single Air intake – stove control is easy and can produce more consistent heat
  • Unmatched fire viewing –large glass door allows unobstructed view of the entire firebox while flame/light is present from gases ignited off the burning wood by a secondary air tube, even with low burning rate
  • Non-catalytic combustion system – complete combustion which equals 1) greater efficiency; more heat from less wood, and 2) clean burning; reduced smoke and creosote build-up
  • Quieter convection blower system mounted in rubber bushings with easy access speed control helps spread heat evenly throughout the home, the rheostat controls the blower speed
  • Removable baffle and secondary air plenum allow flue cleaning without moving the insert
  • Sealed convective air chamber allows better air flow and improved heating performance
  • Easy access to blower for cleaning
  • Easy access to draft test port
  • 2 position flue collar for installation flexibility
  • Depth adjusting surrounds for unit to fit more fireplaces
  • Leveling legs to adjust after installation in the fireplace

Optional Features:

  • Color Choices
  • Mantle Heat Shield reduces clearance requirements allowing more placement options
  • Screen for open-door fire viewing and listening
  • Surrounds caps to fill for raised firebox installations or simply to beautify
  • Aluminum Surround extension (36”H X 59”W)

Specifications

SpecificationsClydesdale 8491 Wood Insert
Heats up to2,000 sq. ft.
Burn TimeUp to 10 hours
Heat LifeUp to 12 hours
Size75,000 BTU
EPA Rating3.2 grams per hour
Efficiency (LHV)79%
Efficiency (HHV)72%
Width (without surround)31-1/2"
Height23"
Depth (includes ash lip)24-1/2"
Depth (minimum behind surround)12-3/4"
Maximum Log Length22"
Firebox Capacity2.4 cubic feet
Flue Exit & DiameterVertical, or 30 degree rear, 6" flue collar
Convection BlowerFactory Installed, Standard
Actual Weight (lbs.)490
Minimum fireplace dimensions
Width at Front32-1/2"
Width at Rear27"
Height at Front23-3/4"
Height at Rear21"
Depth13"
Clearances (Combustible Surface)
Top of Insert to Mantle or Top Trim27"
Top of Insert to Mantle with Shield Kit11"
Side of Insert to Side Wall12"
Side of Insert to Side Trim9"
Hearth Pad
Minimum Size (US)38-1/4" W x 18 " D
Minimum Size (Canada)100 cm x 46 cm
This model is no longer sold new. Its manuals stay here, and we still supply parts.
