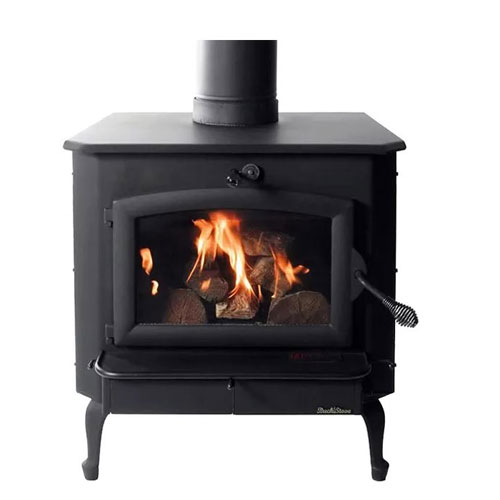

About the Buck Model 80 Catalytic Wood stove or insert - Discontinued

This Model has been Discontinued, this page is up for informational purposes only

New Buck Corporation proudly produces all of their wood stoves in the United States of America. Striving to provide each customer with excellent Service on our quality Product made by hard working People with American Pride. From the designing of the stove, to bending and shaping of the first piece of metal, to welding each piece together and painting and packaging for shipping, all of our stoves are assembled by hand with care and precision.

Buck Stove Company Established 1975, Commitment to Excellence

New Buck Corporation proudly produces all of their wood stoves in the United States of America. Striving to provide each customer with excellent Service on our quality Product made by hard working People with American Pride. From the designing of the stove, to bending and shaping of the first piece of metal, to welding each piece together and painting and packaging for shipping, all of our stoves are assembled by hand with care and precision. We are confident that whichever Buck Stove product you choose, you will receive many years of operation and enjoyment.

Units with this logo meet or exceed EPA emissions standards for the continental United States. A “W-O” below this symbol ensures that the unit is also fully certified for use in Washington and Oregon







Features

  • Stove Dimensions: 29 1/2" W x 23 3/4" H x 22 7/8" D
  • Minimum Fireplace Dimensions: 23 7/8" H x 29" W x 15 1/2" D
  • Heat Capacity - 1.500 - 2,600 Sq. Feet
  • EPA Tested Output BTU/H - 40,500
  • Emissions G/H- 2.6
  • Fireplace Volume - 2.6 Cubic Feet
  • Max Firewood Length - 22"
  • This model comes with an ashpan
  • this model comes with a blower
  • Flu Size - 8"
  • Efficiency - 72%
  • This model is not Pre Fab Approved
  • This model is not Mobile Home Approved
  • Weight - 464 Lbs
  • Hearth Pad Size 37" W x 40" D

Options

Door Available in Black, Gold, or Pewter



Spring Handle Available in Gold or Black

Damper Rod Spring Handle Available in Black or Gold

Queen Anne Legs ( 7 3/4") Available in Black, Gold, or Pewter



Queen Anne Legs ( 8 11/16") Available in Black, Gold, or Pewter

Insert Surround Available in Standard or Oversized

Pedestal Style



Freestanding Style

Specifications

Product Specifications
Heating capacity1,500 - 2,600 sq. ft.
BTU/h OutputUp to 40,500
Emissions g/hr2.6
Firebox Volume (cu. ft.)2.6
Firewood Length17" front to back
Ash Pan and BlowerCome Standard
Flue Size8"
Overall Dimensions ( W x H x D)29 1/2" x 23 3/4" x 22 7/8"
Minimum Fireplace Dimensions (W x H x D)29 x 23 7/8" x 15 1/2"
Overall EPA EfficiencyUp to 72%
Mobile Home - Pre-Fab Approved? No - Yes
Weight464 lbs
Hearth Pad Size (W x D)37" x 40"
Clearance to Combustibles - Fireplace Insert
Mantle24"
Sidewall12"
Trim Kit Size Top9"
Trim Kit Size Side9"
Clearance to Combustibles - Freestanding
Corner20"
Rear26"
Side24"
