Cookstoves Gem Pac by Margin Stoves — Manual
Cookstoves · Manual · PDF, 5.9 MB
About the Gem Pac by Margin Stoves
Lead time ranges from 4 - 12 weeks depending on the time of the year. Plan to order ahead of when you will need the stove.
Scroll down for prices
- Heats up to 1,500 Sq. Ft.
- Black, white, or almond porcelain enamel finish
- Easy ash removal
- Finger-tip damper controls
- Beautifully finished porcelain oven
- Water reservoir (optional)
- Stove Pipe mounted on cook top is standard
Gem Pac cookstove is manufactured in Canada by Margin Stoves and has been in business since 1975. The Gem Pac cookstove comes standard with a cast iron cooktop for even cooking.
Features:
|
Options:
|
Specifications
| Gem Pac | Without Reservoir / With Reservoir |
| Overall size | 35" D x 40" W x 62"H / 35" D x 50" W x 62" H |
| Overall height | 64" / 64" |
| Height to cooktop | 33" / 33" |
| Cooking surface | 24" x 35" / 24" x 35" |
| Oven | 20" W x 13" H x 20" D / 20" W x 13" H x 20" D |
| Firebox | 17" L x 9 1/2" W x 14" D / 17" L x 9 1/2" W x 14" D |
| Log Length | 17" / 17" |
| Approx. burn time | 6 to 9 hours / 6 to 9 hours |
| Approx. heating area | 1,500 sq. ft / 1,500 sq. ft |
| Flue outlet size | 7 inches / 7 inches |
| Reservoir capacity | / 20 gallons rear or 5 gallons on the side |
| Shipping weight | 450 lbs. / 500 lbs. |
| Safety Testing | UL 1482 for U.S.A. / UL 1482 for U.S.A. |
| Safety Testing | CSA B366.2m Canada / CSA B366.2m Canada |
| Safety Testing | ULC-S627 for Canada / ULC-S627 for Canada |
| Gem Pac Clearances to Combustibles | |
| Back wall to unit | 6" / 6" |
| Firebox Side wall to unit | 26" / 26" |
| Back wall to pipe | 5" / 5" |
| Other sidewall to unit | 6" / 6" |
| Firebox Side wall to pipe | 39-1/2" / 39-1/2 |
| Other Sidewall to pipe | 6" / 6" |
| Chimney Connector | |
| Unprotected Surface | 18" / 18" |
| Protected Surface | 6" / 6" |

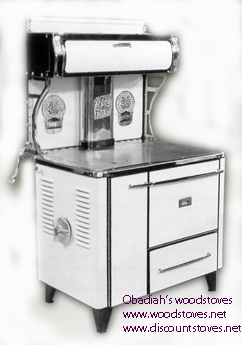

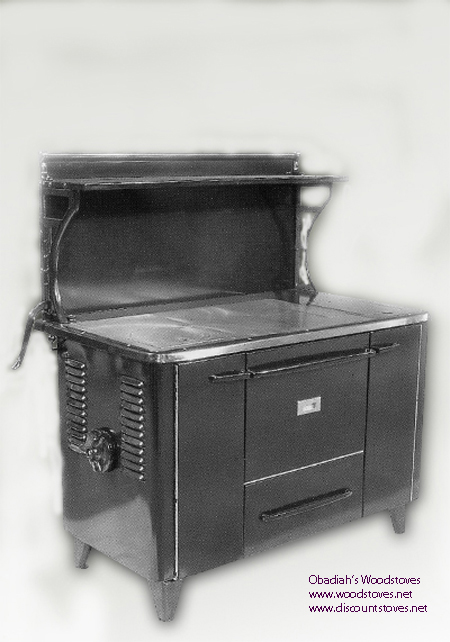

Photos


Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
