Drolet Tundra II Wood Burning Furnace - Discontinued — Brochure
Drolet · Brochure · PDF, 2.6 MB
About the Drolet Tundra II Wood Burning Furnace - Discontinued
This product has been discontinued and is no longer available. This page is for informational purposes only.
Introducing a completely re-engineered wood furnace, the Tundra II. This high efficiency furnace utilizes 30% less wood to produce the same amount of heat than those of conventional wood furnaces and meets the new EPA clean-air standards.
Introducing a completely re-engineered wood furnace, the Tundra II. This high efficiency furnace utilizes 30% less wood to produce the same amount of heat than those of conventional wood furnaces and meets the new EPA clean-air standards.
Key features of the Tundra II include an adjustable rectangular hot air plenum with the ability to accommodate between 6-10, 6 inch diameter heating ducts, allowing for greater flexibility for easier installation and an electronic probe that measures the temperature in the plenum and adjusts the blower speed to ensure maximum comfort.
Features:
- The Tundra II Wood Furnace produces up to 49,638 BTU/hr
- Glass Air-wash System
- 1,400 CFM Blower included
- Firebox Lined with Refractory Bricks - Provides Better Heat Distribution
- Stainless-Steel Secondary-Air System - To Improve Gas Combustion
- Adjustable Threaded Legs
- Easy to Access Ash Drawer
- High Efficiency EPA Certified Appliance
- Limited Lifetime Warranty
Options:
|
Cardboard Frame Air Filter w/ Support |
Cold Air Return Housing w/ Filter |
|
Digital Wall Thermostat |
Triple Hot Air Supply Adapter Kit |
|
Washable Aluminum Air Filter w/ Support |
Specifications
| Fuel Type | Dry Cordwood |
| Heating Area (sq. ft.) | 1,000 - 2,500 |
| Firebox Volume (cu. ft.) | 3.6 |
| Overall Dimensions (H x W x D) | 63-1/2" x 33-1/4" x 49-1/8" |
| Door Opening Dimensions (H x W) | 10" x 13-3/4" |
| Firebox Dimensions (H x W x D) | 16-1/8" x 17" x 22-5/8" |
| Filter - Dimensions (W x H x D) | 15" x 20" x 1" |
| Glass Surface Dimensions (W x H) | 14-3/8" x 10" |
| Weight | 652 lbs (296 kg) |
| Max Burn Time | 10 hrs. |
| Overall Heat Output Rate | 15,436 - 49,638 BTU/hr (4.5 - 14.5 kW) |
| Average Overall Efficiency | 76.7% (HHV) 82.9%(LHV) |
| Delivered Heat Output Rate | 12,635 - 44,857 BTU/hr (3.7 - 13.1 kW) |
| Max Input Capacity (Dry Cordwood) | 310,000 BTU |
| Average Delivered Efficiency | 62.7% (HHV) 68.3%(LHV) |
| Optimum Efficiency | 85% |
| Average Emissions Rate | 0.654 lb/mmBTU ( .282 g/MJ) |
| Average Electrical Power Consumption | 250 W |
| Max Log Length | 21" |
| Log Positioning | Over Depth |
| Chimney Diameter | 6" |
| Flue Outlet Diameter | 6" |
| Type of Chimney | Can/ULC S629, UL 103 HT (2100 degrees F) |
| Baffle Type | C-Cast |
| Approved for Alcove / Mobile Home Installation | No |
| Door Type | Single, Glass w/ Cast Iron Frame |
| Glass Type | Ceramic Glass |
| Blower (HP/speed/CFM) | 1/4 / 4 / 1,400 |
| Steel Thickness (Body / Top) | 3/16" / 1/4" |
| Air Return Plenum Dimensions (H x W) | 22" x 14-1/2" |
| Hot Air Plenum Dimensions (H or D) | 18-1/2 - 26-1/2" |
| Hot Air Plenum Dimensions (W) | 22-1/4" |
| USA Standards on Emissions | EPA |
| Canadian Standards on Emissions | CSA B415.1-10 |
| USA Standard (Safety) | UL 391 |
| Canadian Standard (Safety) | CAN/CSA B366.1 |
| Tested and Listed as per applicable Standards | By an Accredited laboratory (CAN/USA) |
| Warranty | Limited Lifetime |

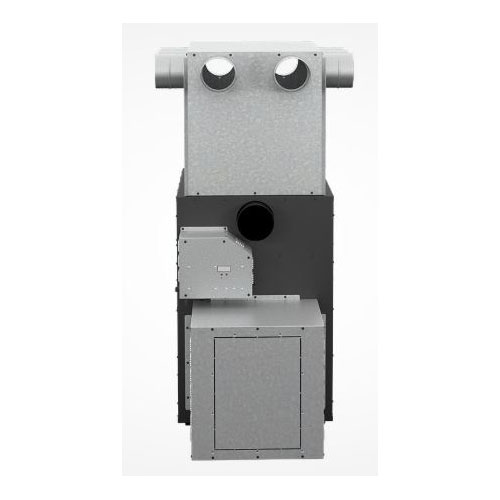

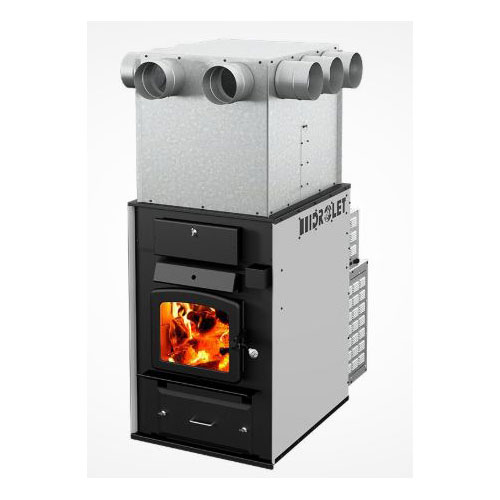

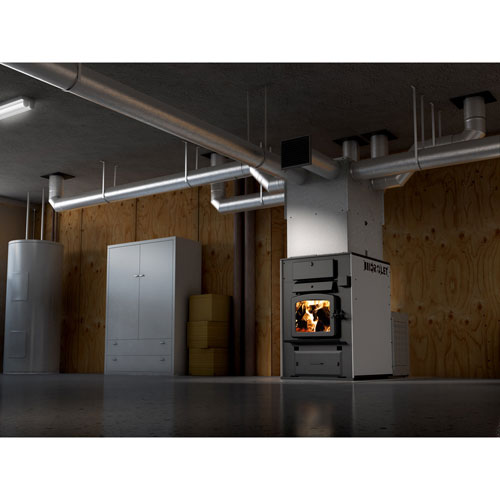

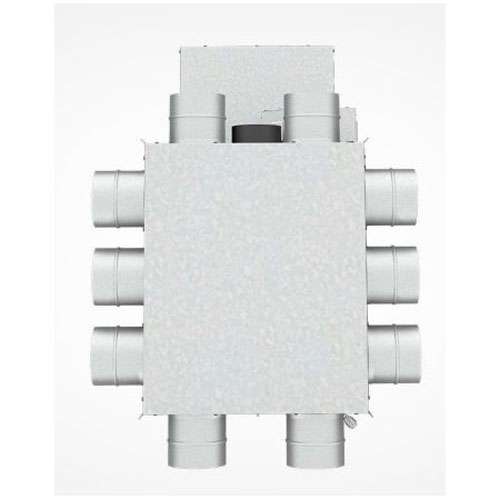

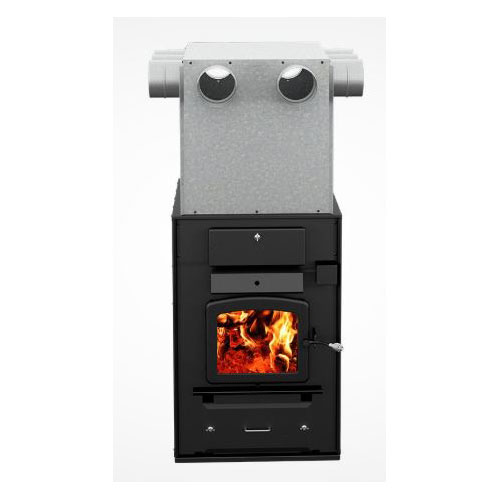

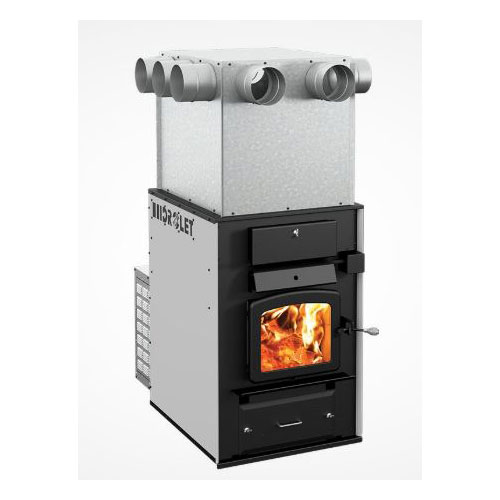

Photos
