Drolet Outback Chef Wood Burning Cook Stove - Discontinued — Manual
Drolet · Manual · PDF, 9.5 MB
About the Drolet Outback Chef Wood Burning Cook Stove - Discontinued
This product has been discontinued and is no longer available.
Introducing the Outback Chef cook stove specifically designed with all the Italian know-how for a simple to use, and unsurpassed cooking of food and heating of your home, must have for tranquil cottage life.
Introducing the Outback Chef cook stove specifically designed with all the Italian know-how for a simple to use, and unsurpassed cooking of food and heating of your home, must have for tranquil cottage life. With a compact design, offering you a modern and refined charm with a distinguished classic look the Outback Chef suits any interior. Four doors and a cast-iron top to mesh perfectly with the anthracite enameled steel panels and protective cook top cover, revisit the good old days with the Outback Chef domestic wood burning cook stove, a most contemporary tradition.
Features:
- Ash Drawer
- Warming Drawer
- Cast Iron Cooktop
- Italian Made
- Anthracite Enameled Steel Side Panel
- Four Doors - giving practical access to the fire, ashes, oven, stove drawer and accessories
- Chrome Handrail
- Hot Air Bypass Trap for Regulating Oven Heat
Specifications
| Fuel type | Dry cordwood |
| Max Heat Output | 40,536 BTH/hr (11.88 kW) |
| Overall dimension | 33 5/8''H x 40" W x 25-7/8"D |
| Firebox – dimension | 10 1/4''H x 8-3/8"W x 16-3/4"D |
| Oven Dimensions | 11 3/4" H x 11-1/2" W x 17-3/4" D |
| Door opening – dimension | 6 1/2'' H x 8-3/8"W |
| Weight | 545 lbs ( 248 kg) |
| Firebox nominal volume (cu. ft.) | 1.08 |
| Maximum log length | 16'' |
| Log positioning | Over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Baffle type | High quality vermiculite |
| Approved for a mobile home installation | No |
| Shipping Weight | 545 lb (248 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 7 3/8'' X 10 3/4'' |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |

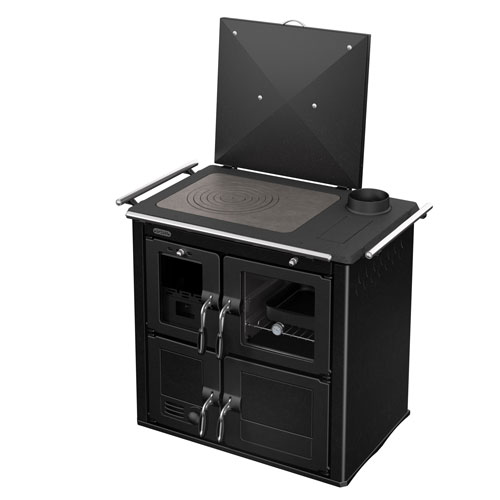

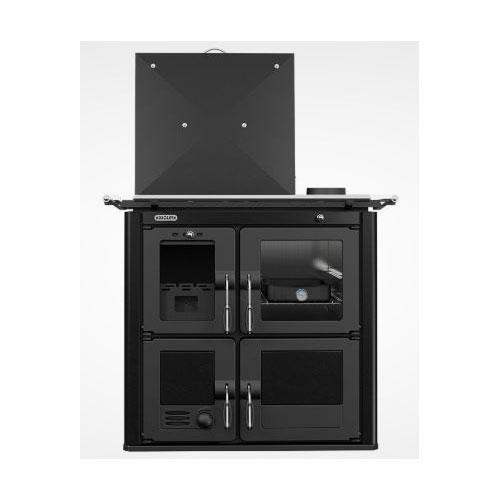

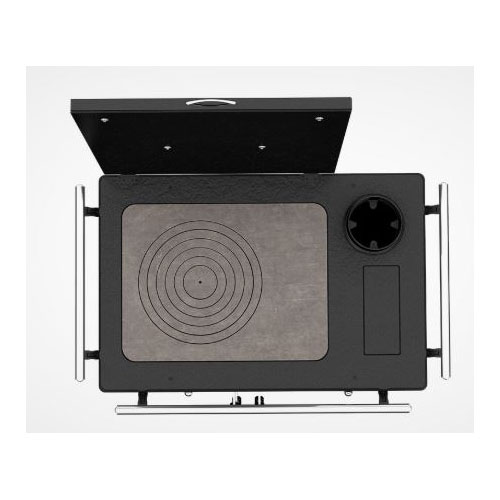

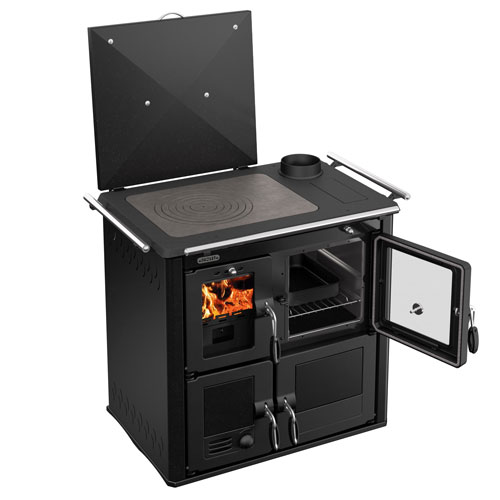

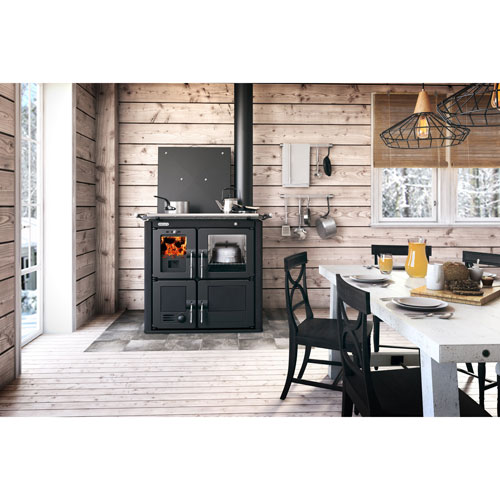

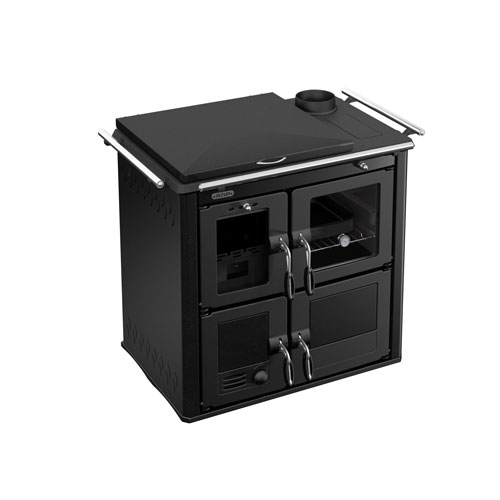

Photos
