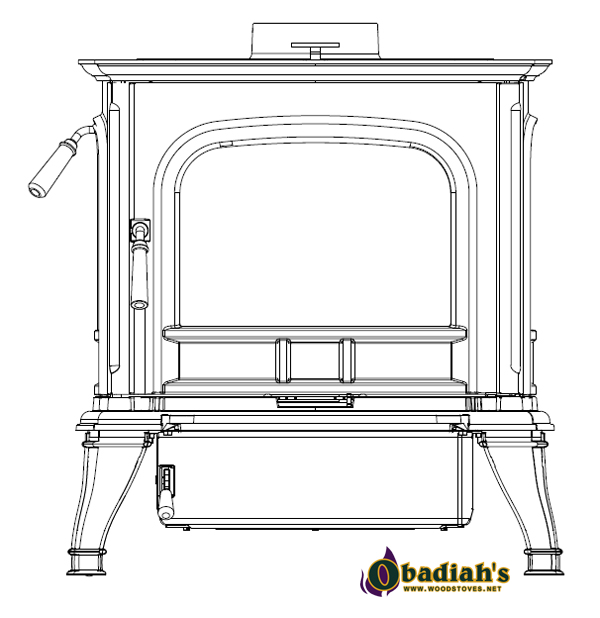

Harman Oakleaf Modern Wood Stove — Owner's Manual

Harman · Owner's Manual · PDF, 12.8 MB

Owner's Manual · PDF · 12.8 MB
Oakleaf-OM.pdf
Download / view PDF ↓

About the Harman Oakleaf Modern Wood Stove

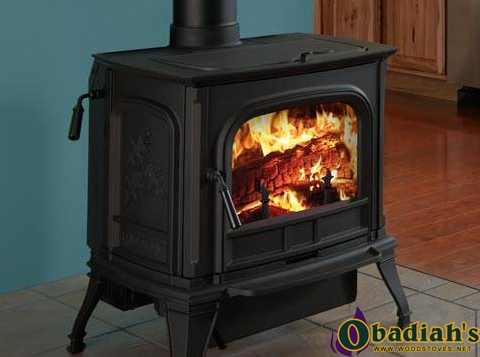

The Harman Oakleaf Modern Wood Stove is a practical and efficient option for heating your home.  The Oakleaf comes equipped with Harman's FireDome technology, which helps to deliver even heat and very long burns.  Two combustion cycles completely burn the wood, smoke and exhaust.  Take advantage of distinctive, powerful and eco-friendly heating by ordering yours from Obadiah's Woodstoves today!

Features:

  • FireDome combustion system
  • Even heat and long burns
  • Front and top loading for convenience and extended performance
  • Large ash pan for less frequent maintenance
  • Rear and bottom heat shield
  • Top or rear vent convertible



Options:

  • Cooking grill



Controls:

Specifications

Specifications Harman Oakleaf Modern Wood Stove
Width 25"
Height w/Top Vent29.13"
Height w/Rear Vent27.25"
Depth 27.63"
Maximum Log Length 18"
EPA 1st Hour Peak BTU's 45,100
Heating Capacity 1,000 - 2,600 Sq. Ft.
Emissions 2.2 Grams/Hr
Efficiency 63%
Firebox Size 1.7 Cu. Ft.
Fuel Wood
Shipping Weight 410 lbs.

Photos

Harman Oakleaf Modern Wood Stove — Owner's ManualHarman Oakleaf Modern Wood Stove — Owner's ManualHarman Oakleaf Modern Wood Stove — Owner's ManualHarman Oakleaf Modern Wood Stove — Owner's Manual
