Hearthstone Phoenix 8612 - Not Available* — Diagram
Hearthstone · Diagram · PDF, 291 KB
About the Hearthstone Phoenix 8612 - Not Available*
No Longer Available from Obadiah's.
The Phoenix 8612 wood stove is hand-crafted in Vermont by Hearthstone and is a designed to keep a midsize home warm and with its soapstone panels it’ll be warm long after the flames have gone out. Don’t be mistaken though, this hybrid woodstove is also manufactured with cast iron for quick-heating. Quick and lingering heat plus the ease and convenience of a separate ash removal drawer and a self-cleaning window makes the Hearthstone 8612 one sweet stove.
Each stove is a complement of cast iron and hand-selected soapstone - making each Phoenix beautifully unique!
*PRODUCT NOT AVAILABLE - this page is for informational purposes only.
This stunning stove, the Phoenix 8612 is in the Hearthstone Select Collection of soapstove stoves. Hearthstone has also incorporated into this beauty the benefits of advanced wood burning technology - without the cost and maintenance of a catalytic converter - to produce large amounts of heat and be clean burning. Phoenix 8612: warmth plus style!
Features:
- 2.2 Cubic foot firebox
- Firebox holds 44 lbs of 21” logs
- Single Air intake – stove control is easy and can produce more consistent heat
- 45-degree flue collar – flexible installation for freestanding unit or as a hearth stove
- Non-catalytic combustion system – complete combustion which equals 1)greater efficiency; more heat from less wood, and 2)clean burning; reduced smoke and creosote build-up
- Unmatched fire viewing – flame/light present from gases ignited off the burning wood by a secondary air tube, even with low burning rate
- EPA Certified
Optional Features:
- Outside air adapter – provides improved efficiency in “airtight” homes and reduces cold drafts along the floor
- Rear heat shield – allows more placement options by reducing clearance requirements, and creates a convection passageway between shield and back of stove to allow optional fan to circulate air through the house more effectively
Color Finishes:

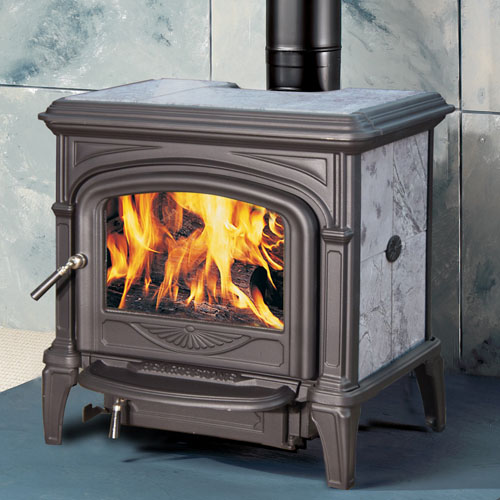

Matte Black
Brown Enamel

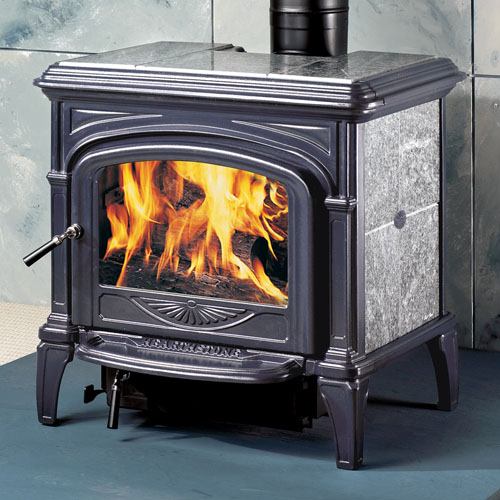

Blue Black Enamel

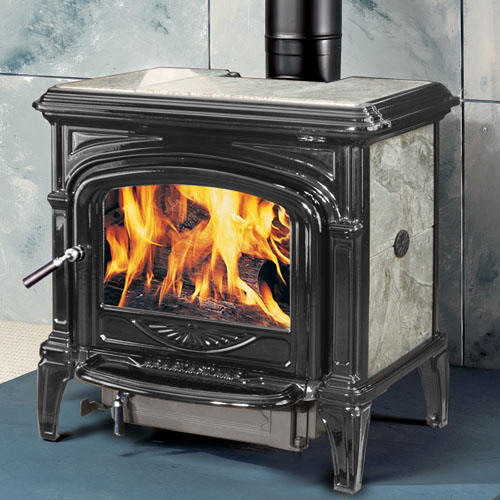

Black Enamel
SoapStone Finish - Polished Gray
About Soapstone Stoves:
The firebox of a soapstone stove is actually constructed of stone - soapstone holds and radiates heat but also has the benefit of being able to withstand direct flames indefinitely. The stove’s top, back and sides are made of thick pieces of stone forming the interior and exterior wall of the stove.
The heat quality of stone is more even and comfortable than steel, cast iron or refractory bricks and the surface temperature is safer in that it does not get as hot.
In addition, natural patterns in soapstone are beautiful and that beauty transfers to the attractive uniqueness of each stove and high temperatures only deepens the stone’s rich color.
Soapstone stoves crafted by Hearthstone use a combination of materials maximizing the benefits of each to deliver warmth plus beauty.
Specifications
| Specifications | PHOENIX 8612 Wood Stove |
| Heats up to | 2,000 sq. ft. |
| Burn Time | Up to 8 hours |
| Heat Life | Up to 12 hours |
| Size | 60,000 BTUs |
| EPA Rating | 2.4 grams per hour |
| Efficiency | 75% |
| Width | 28" |
| Height (includes flue collar) | 27.5" |
| Depth (includes flue collar) | 24" |
| Maximum Log Length | 21" |
| Firebox Capacity | 2.2 cubic feet |
| Flue Diameter | 6" flue collar |
| Flue Exit | 45 degree exit |
| Clearances (With single wall pipe & no rear heat shield) | |
| Side | 20" |
| Rear | 25" |
| Corner | 18" |
| Clearances (With double-wall pipe & rear heat shield) | |
| Side | 16" |
| Rear | 13" |
| Corner | 12" |
| Hearth Pad | |
| Minimum Size (US) | 42" W x 42" D |
| Minimum Size (Canada) | 135 cm x 117 cm |
| Accessories Description | Hearthstone SKU |
| 3" Outside Air Adaptor | 96-56322 |
| DRAFT METER: WOODSTOVES | 90-99000 |
| Gloss Black Spray Paint | 90-58150 |
| Gloss Blue-Black Spray Paint | 90-58159 |
| Gloss Brown Spray Paint | 90-58120 |
| Gloss Seafoam Spray Paint | 90-58161 |
| Matte Black Spray Paint | 90-58110 |
| REAR HEAT SHIELD, PHOENIX | 96-58602 |
| TOUCH UP BLACK ENAMEL | 90-58007N |
| TOUCH UP BLUE BLACK ENAMEL | 90-58059N |
| TOUCH UP BROWN ENAMEL | 90-58004N |
| TOUCH UP SEAFOAM ENAMEL | 90-58061N |
