Hearthstone Tribute 8040 — Diagram

Hearthstone · Diagram · PDF, 284 KB

Diagram · PDF · 284 KB
schematic-tribute.pdf
Download / view PDF ↓

About the Hearthstone Tribute 8040

No Longer Available from Obadiah's.



The Tribute 8040 wood stove is hand-crafted in Vermont by Hearthstone and is a designed to keep a large room or small house warm and welcoming.  With its 1-1/4” soapstone panels, the woodstove will be warm long after the flames have gone out with a HeatLife rating of 9 hours.  Hearthstone Heritage style in a smaller package, that’s the Hearthstone 8040.

Each stove is a complement of cast iron and hand-selected soapstone - making each Tribute beautifully unique!

This stunning stove, the Tribute 8040 is in the Hearthstone Select Collection of soapstove stoves.  Hearthstone has also incorporated into this beauty the benefits of advanced wood burning technology (without the cost and maintenance of a catalytic converter) to produce large amounts of heat and be clean burning.  Tribute 8040: warmth plus style!



Features:

1.2 cubic foot firebox, holds up to 20 lbs of wood
Easy loading door for logs up to 16” in length
Single Air intake – stove control is easy and can produce more consistent heat
Unmatched fire viewing – flame/light present from gases ignited off the burning wood by a secondary air tube, even with low burning rate

Optional Features:

Outside air adapter – provides improved efficiency in “airtight” homes and reduces cold drafts along the floor
Rear heat shield – allows more placement options by reducing clearance requirements, and creates a convection passageway between shield and back of stove to allow optional fan to circulate air through the house more effectively
Fan with built-in thermostat and rheostat (rear heat shield required) – helps spread heat evenly throughout the home, fan only operates when the stove is at a significant heat level and the rheostat controls the fan speed
Screen, allows for open door fire viewing


Color Finishes:

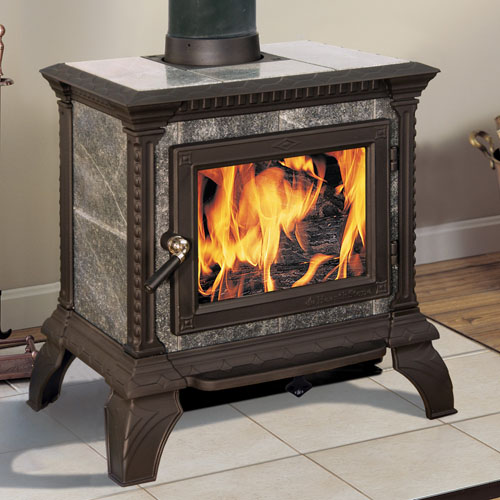

Matte Black

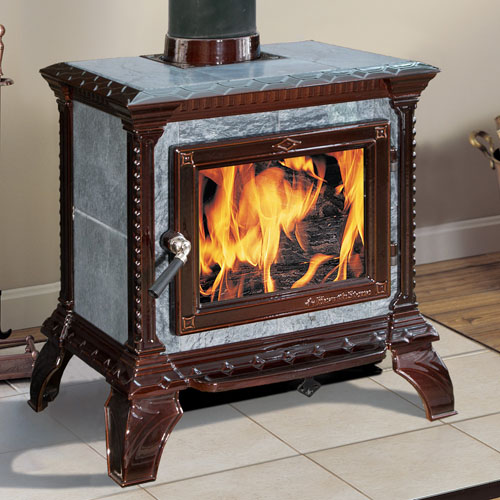

Brown Enamel

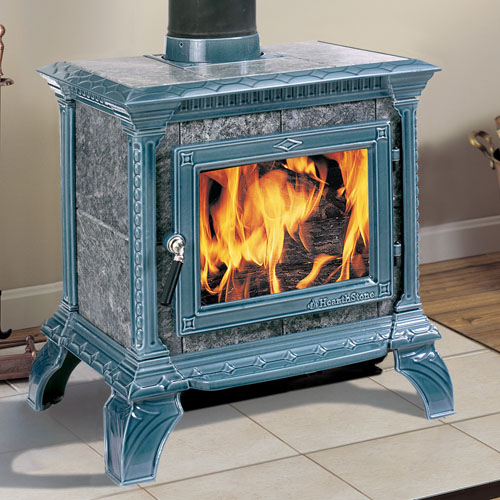

Seafoam Enamel



Soapstone Finish - Polished Gray



About Soapstone Stoves:

The firebox of a soapstone stove is actually constructed of stone - soapstone holds and radiates heat but also has the benefit of being able to withstand direct flames indefinitely.  The stove’s top, back and sides are made of thick pieces of stone forming the interior and exterior wall of the stove.

The heat quality of stone is more even and comfortable than steel, cast iron or refractory bricks and the surface temperature is safer in that it does not get as hot.

In addition, natural patterns in soapstone are beautiful and that beauty transfers to the attractive uniqueness of each stove and high temperatures only deepens the stone’s rich color.

Soapstone stoves crafted by Hearthstone use a combination of materials maximizing the benefits of each to deliver warmth plus beauty.

Specifications

SpecificationsTribute 8040 Wood Stove
Heats up to1,000 sq. ft.
Burn TimeUp to 5 hours
Heat LifeUp to 7 hours
Size36,000 BTUs
EPA Rating2.9 grams per hour
Efficiency83%
Width24"
Height (includes flue collar)25-3/4"
Depth18"
Maximum Log Length16"
Firebox Capacity1.2 cubic feet
Flue Exit & Diameter6" top exit only
Ash PanNo
Optional Blower KitYes
Actual Weight (lbs.)313
Alcove CertifiedYes
Mobile Home CertifiedYes
Clearances (With single wall pipe & no rear heat shield)
Side16-1/2"
Rear19"
Corner17"
Clearances (With double-wall pipe & rear heat shield)
Side16-1/2"
Rear8"
Corner7"
Hearth Pad
Minimum Size (US)29" W x 31-1/8" D
Minimum Size (Canada)97 cm x 107 cm
Accessories DescriptionHearthstone SKU
3" Outside Air Adaptor90-53400
Convection Blower: 8021/804090-57210
DRAFT METER: WOODSTOVES90-99000
Gloss Black Spray Paint90-58150
Gloss Blue-Black Spray Paint90-58159
Gloss Brown Spray Paint90-58120
Gloss Seafoam Spray Paint90-58161
HEATSHIELD: REAR,TRI90-68400
Matte Black Spray Paint90-58110
SCREEN, TRIBUTE90-69400
TOUCH UP BLACK ENAMEL90-58007N
TOUCH UP BLUE BLACK ENAMEL90-58059N
TOUCH UP BROWN ENAMEL90-58004N
TOUCH UP SEAFOAM ENAMEL90-58061N
