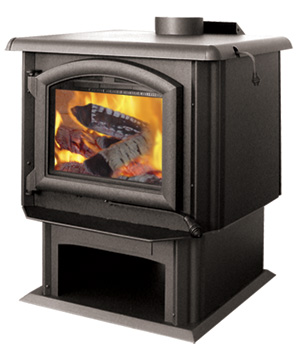

About the J.A. Roby Tison Wood Stove - Not EPA Approved
Note: This stove is NOT EPA approved, and thus cannot be sold into most states. This product can be shipped into, MI, TN, WI, HI, and Canada.
With emission levels as low as 1.34 Gr / H, the Tison from J.A. Roby is currently the best in its class for environmental awareness, certified to Canadian standard B415.1-10.
Note: This stove is NOT EPA approved, and thus cannot be sold into most states. This product can be shipped into, MI, TN, WI, HI, and Canada.
Reaching up to 88% efficiency when burning dry cordwood, and heating up to 2500 ft2, the Tison is a highly efficient wood stove that provides an easy access ash drawer and great visibility of the wood fire. For better heat distribution, it also includes the option of 2 fans and 1 thermodisc. With high environmental awareness, this model is suitable for certified Novoclimate houses.
Features
- One cast iron door model
- High efficiency 88% with dry seasonned wood
- Low emissions 1.349Gr/h
- LHV 78%
- Heating by convection and radiation
- Air wash system
- Ashtray
- Log length 19"
- Heat up to 2500 ft²
- Offered in metallic black
Options
- Chrome edges (3) ND
- Decorative chrome grill door
- Outdoor air intake for certified Novoclimate houses
- Fans (2) and thermodisc
- Firescreen
Specifications
| Specifications | J.A. Roby Tison |
| Type of fuel | Wood |
| Recommended heating area | 500 - 2500 pi² |
| Maximum output | 95000 BTU/h (Dry seasonned wood) |
| Exteriors dimensions | |
| Width | 27 ¾" - 70.49 cm |
| Height | 29" - 73.66 cm |
| Depth | 30" - 76.2 cm |
| Type of chimney | 2100º F. -650º C. |
| Exaust pipe diameter | 6" - 15.24 cm |
| Recommended chimney diameter | 6" - 15.24 cm |
| Minimum chimney height | 12' - 3.66 m |
| Firebox dimensions | |
| Width | 19" - 48.26 cm |
| Height | 12 ¼" - 31.12 cm |
| Depth | 19 ½" - 49.53 cm |
| Door opening dimensions | 16" x 10 ½" 40.64 cm x 26.67 cm |
| Minimum clearances to combustibles | |
| Back | 12" - 30.48 cm |
| Side | 18" - 45.72 cm |
| Corner | 18" - 45.72 cm |
| Top (measured from floor) | 84" - 213.36 cm |
| Maximum log length | 19" - 48.26 cm |
| Weight | 320 lbs / 145.15 kg |
| Warranty | Limited lifetime |
| Standard test - emissions | B415.1-10 |
| Standard test - safety | ULC-S-627.00 |
Photos
