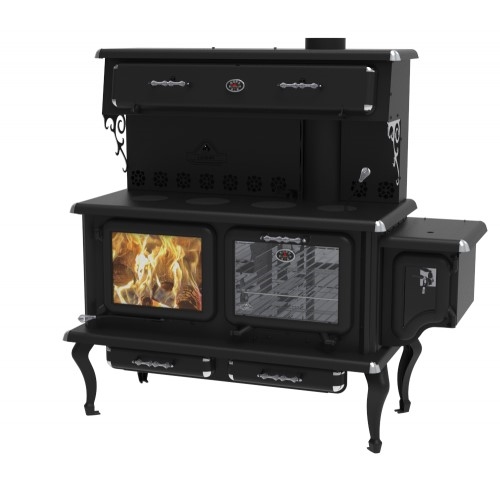

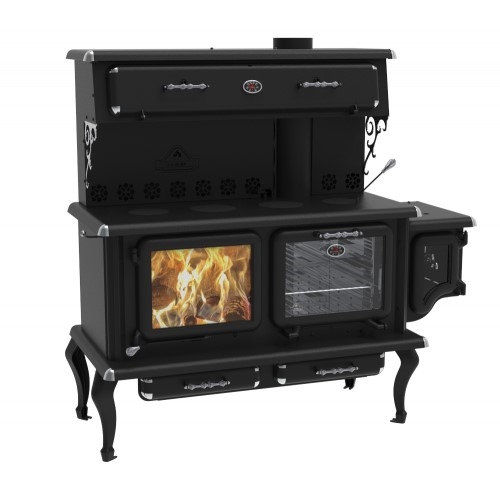

The J.A. Roby Newton Wood Burning Cookstove heats up to 2,500 square feet. It features a baking oven, cooking surface, warming shelf, and storage drawers. Chrome accents improve its aesthetics, while the air-wash system keeps maintenance to a minimum.

Features

• Model with three cast iron doors
• High efficiency CSA B415.1-10
• EPA Exempt certified
• Recommended heating area (sq. ft.): 1 000 - 2 500
• Color: Metallic black
• Model black cast iron legs
• Handles, corners and chromed ornaments
• Convection and radiation heating system
• Glass air-wash system
• Storage drawers
• Cooking area 16'' X 47''
• Glass oven door
• Food warmer
• Thermometers on oven and food warmer
• Low clearance to combustible material
• Baffle: Fiber ceramic
• Outdoor air intake
• Firebox lined with refractory bricks for better heat distribution
• Stainless steel secondary air system improving gas combustion
• Recommended chimney: 6''
• Low emissions 1.02 g/h
• LHV 79.46%
• Log length: 19''
• Tested as per applicable standards by Intertek

Options

• Decorative black top and mirror (TDDNM)
• Decorative chrome top and mirror (TDDCM)
• Outdoor air intake package kit (ECPAE)
• Additional oven rack for cookstove (CUISINIEREGF)

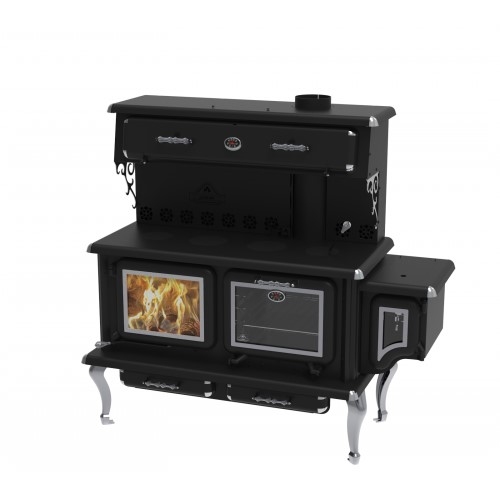

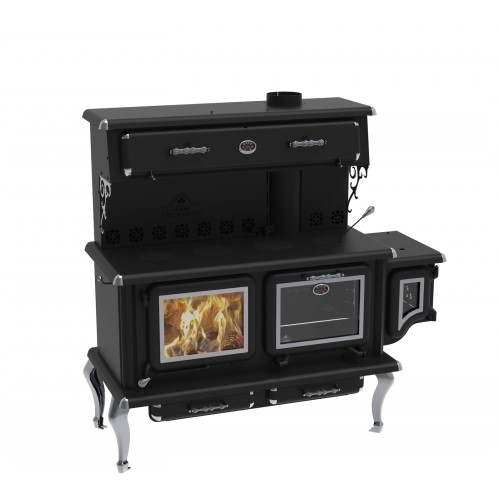

• Chrome cast iron legs
• Black enameled cast iron cooking plate, right (PLAQUECUID)
• Black enameled cast iron cooking plate, left (PLAQUECUIG)

Outdoor Air Intake Package (ECPAE)

• 10ft insulated air duct
• Wall grill/connector
• 2x Clamp
