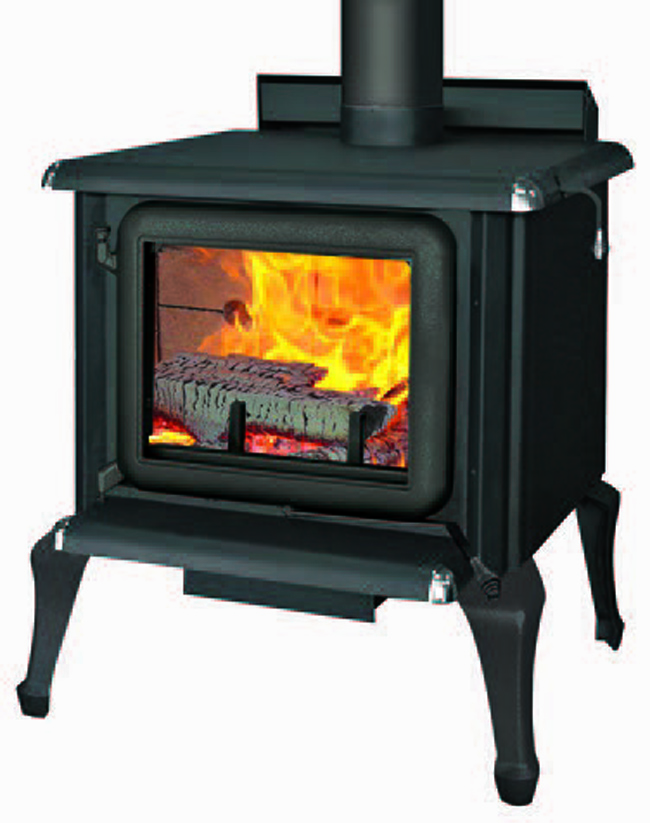

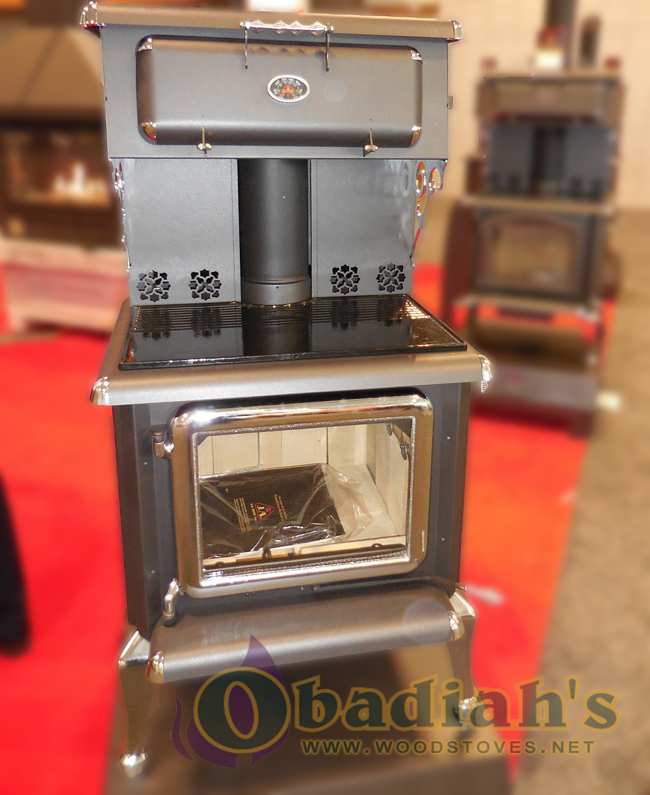

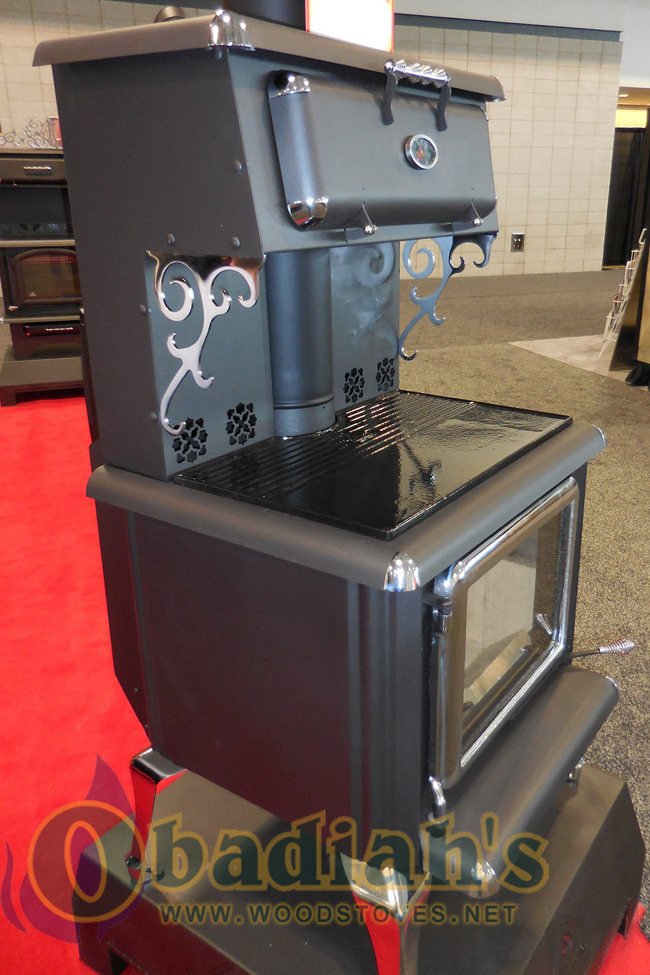

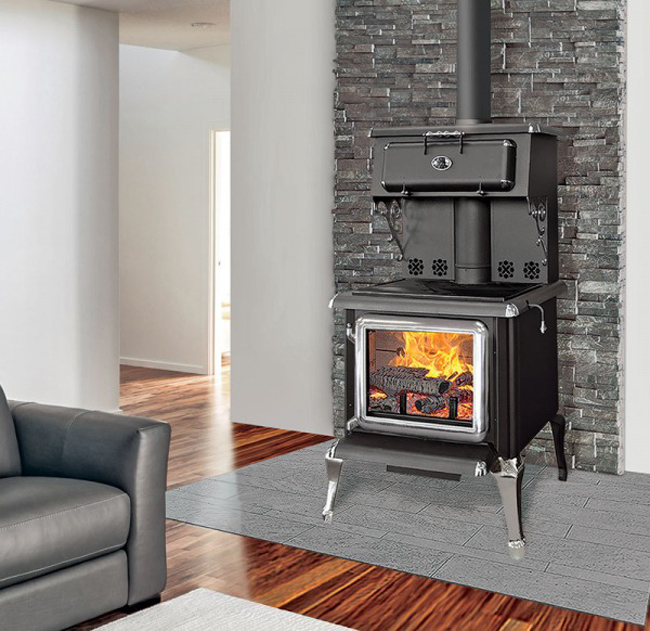

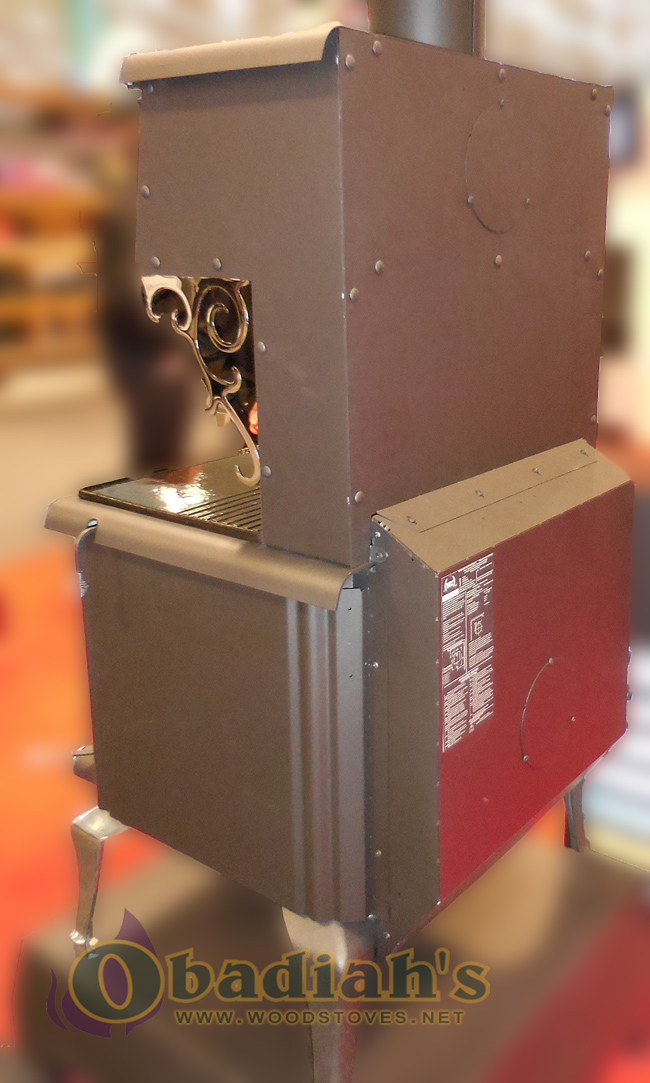

J.A. Roby 2500 Cuisiniere Wood Cookstove - Not EPA Approved — Warranty

J.A. Roby has done it again with the Roby 2500 Cuisiniere compact and fuel efficient wood fired cookstove! The little sister to the J.A. Roby Cuisiniere SE, the 2500 Cuisiniere is a small, clean burning stove that would fit perfectly in your home or cabin where space is limited. With a heating capacity of up to 2,500 sq feet and a 22 hour optimum burn time, the 2500 Cuisiniere is sure to give you peace of mind and keep the family comfortably warm all night long. Measuring just 26" wide, the J.A. Roby 2500 Cuisiniere wood fired stove packs a punch into a petite, contemporary cookstove and gives you the ability to cook a feast on the cook top or warm leftovers in the convenient warmer.

Note: This stove is NOT EPA approved, and thus cannot be sold into most states. This product can be shipped into Canada only.

Click on the tabs below for useful information, owner's manual, photos, and more!

Note: This stove is NOT EPA approved, and thus cannot be sold into most states. This product can be shipped into Canada only.

Features

• Cast iron and glass firebox door
• Convection and radiant heat
• Glass air wash system
• Easy access ash drawer
• Low clearances to combustibles
• Refractory brick lined firebox for better heat distribution
• Stainless steel secondary-air system to improve gas combustion
• Warming closet
• EPA exempt (learn more here)
• Washington State Approved (learn more here)
• Mobile home approved
• Intertek tested and approved

Options

• Chromed cast iron legs
• Firescreen
• Outdoor air intake
• Chromed square cast-iron door
• Two 150 CFM blower and thermodisc

Clearance to Non-combustibles

• Minimum clearance of 12 inches to the rear wall (for a smoke simple pipe with a heat shield) and 18" lateral MINIMUM clearance
• In the case with a smoke simple pipe without heat shield, you must installed the cooker stove that the smoke pipe is to 18 inches of all non-combustible material therefore the MINIMUM clearance at the rear of the stove will be 16¼" (41.3cm).

• For a 45° corner installation, or other corner installation, the minimum clearance between the cook stove and non-combustible material must be 18".

Floor Protection Minimum Clearances

Your stove must be installed on a non-combustible material plate to protect the floor and avoid fire would be caused by:

• Projections of sparks when door opening  or loading logs
• The heat radiation when stove runaway should have an ignition to the floor and the coating.
• Flow of creosote when there is a fire chimney

The coating used must be non-combustible and approved according to standard UL1618 for USA or approved to the locals codes (Example: cement, brick, ceramic tiles...)
Floor protection plate minimum dimensions.
The following dimensions are the minimums values and it can be higher.

Canada

• 41-7/8" (106 cm)
• 47-5/8" (115.88 cm)
• 3/8" thickness (1 cm)

Unites States

• 41-7/8" (106.42 cm)
• 45-5/8" (115.88 cm)
• 3/8" thickness (1 cm)

It’s necessary to protect the floor behind the horizontal connecting pipe section to the chimney of 2" (5cm) besides connecting pipe and up to the vertical connecting pipe. You can extend the protection plate while respecting the clearances of each side of stove.
