About the Roby Mystere Cookstove - Discontinued*
*PRODUCT DISCONTINUED - This page is for informational purposes only.

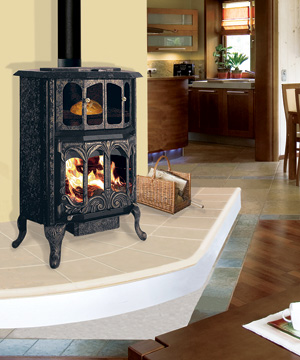

The Mystere from J.A. Roby is a smart and stylish choice for anyone looking to add a small wood-fired cook stove to their home where space is limited. It features a highly efficient combustion system with low clearances and large, cast-iron and glass bay doors for your fire viewing pleasure.
Click on the tabs below for useful information, installation manual, photos, and more!
*PRODUCT DISCONTINUED - This page is for informational purposes only.
The Mystere offers a 20" x 12" viewing window and many stylish options to fit your needs exactly, without having to sacrifice the even warmth and highly efficient combustion. EPA certified, the Mystere also offers an oven that can give you the opportunity to enjoy the traditional way of cooking on a wood fire.
Features
- Wood stove model with cooktop (oven optional)
- Two cast-iron and glass bay flame view doors
- High efficiency combustion
- Convection and radiation heating system
- Air-wash system
- Low clearance to combustible materials
- Easy access ash drawer
- Can be used as an extra cooking stove
- Offered in two one-tone finishes: metallic black or honey-glow brown or in two rustic style finishes: Metallic black hammered charcoal or metallic black hammered brown
Options
- Oven
- Blower thermodisc kit
- Rigid fire-screen
Specifications
| J.A. Roby Mystere | Without Oven / With Oven |
| Fuel | Wood / Wood |
| Weight | 380 lbs / 172 kg / 400 lbs / 181 kg |
| Recommended Heating Area | Up to 1850 ft² / Up to 172 m² / Up to 1850 ft² / Up to 172 m² |
| Heat Capacity | Up to 52,000 BTU/hr / Up to 52,000 BTU/hr |
| Burn Time | 3 to 5 hours / 3 to 5 hours |
| Overall Dimensions W/H/D | 26" x 31" x 27 ¾" - 66 cm x 78.7 cm x 70.5 cm / 26" x 46" x 27 ¾" - 66 cm x 116.8 cm x 70.5 cm |
| Firebox Dimensions W/H/D | 18" x 12" x 17¾" - 45.7 cm x 30.5 cm x 44.5 cm / 18" x 12" x 17¾" - 45.7 cm x 30.5 cm x 44.5 cm |
| Door Opening | 17 ½" x 9 ½" - 44.5 cm x 24.1 cm / 17 ½" x 9 ½" - 44.5 cm x 24.1 cm |
| Type of Chimney | 2100° F. - 650° C / 2100° F. - 650° C |
| Recommended Flue | 6" - 15.2 cm / 6" - 15.2 cm |
| Minimum Chimney Height | 12' - 3.7 m / 12' - 3.7 m |
| Standard test - emissions | EPA / EPA |
| Standard test - safety | ULC-S627-00 / ULC-S627-00 |
| Minimum clearances to combustibles | |
| Rear | 8" - 20.3 cm / 8" - 20.3 cm |
| Side | 12" - 30.5 cm / 12" - 30.5 cm |
| Corner | 12" - 30.5 cm / 12" - 30.5 cm |
| Top (measured from floor) | 84" - 2.1 m / 84" - 2.1 m |
