Majestic Windsor Non-Catalytic EPA Wood Stove - Discontinued — Manual

Majestic · Manual · PDF, 677 KB

Manual · PDF · 677 KB
Windsor_WR247001_Manual.pdf
Download / view PDF ↓

About the Majestic Windsor Non-Catalytic EPA Wood Stove - Discontinued

This product has been discontinued and all inventory has been sold. This page is for informational purposes for those who have already purchased the unit.

Constructed from sturdy premium steel and cast iron, the Windsor Series of Wood Burning Stoves deliver long-term, reliable heat. These low-maintenance noncatalytic stoves use airflow and a baffle system to reburn smoke and gasses, providing a clean, efficient burn. They also feature an Airwash system, which circulates air to keep the large glass doors clear of soot and ash. Available in 3 sizes each offered in 2 styles, you can choose the Windsor model that best matches the needs of your home. Keep your home warm all winter long with the Majestic Windsor Wood Stove.

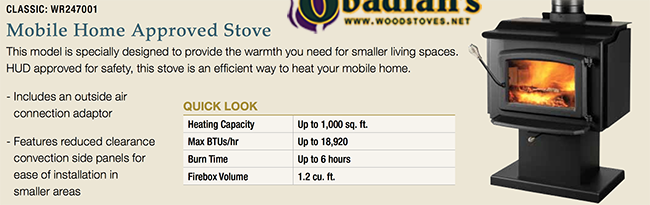

The Windsor line is cast in our energy-efficient factory using recycled materials. Your new stove or insert is both crafted with eco-friendly processes and designed to be an effective heating source for your home. The WR247 model is mobile home approved!

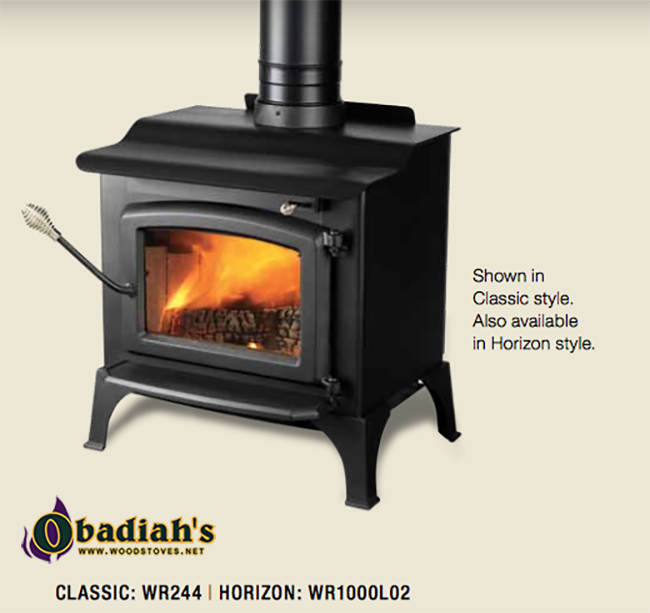

  • COMPACT YET COZY
    Create a warm and cozy environment with our smallest wood burning stove. This model is perfect for heating smaller areas like single rooms or a smaller home up to 1,000 sq. ft. in size.

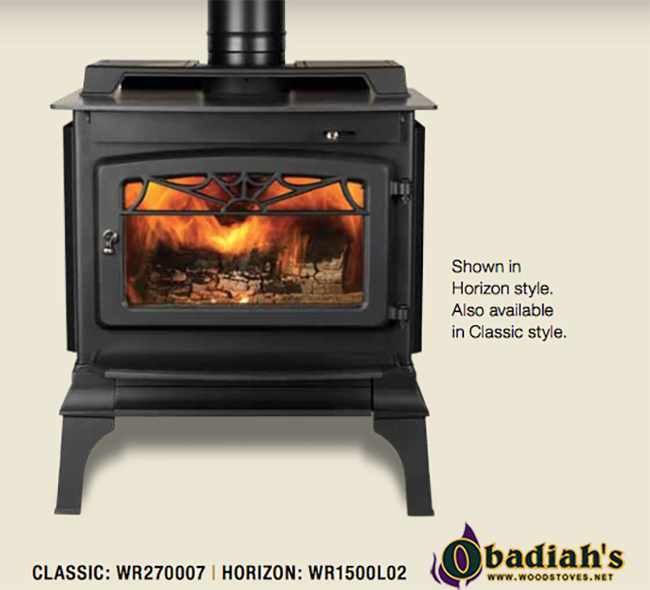

  • ALL-AROUND WARMTH
    With a maximum heating area of up to 1,500 sq. ft., this stove is designed to heat well in most areas. Create a warm and inviting area wherever you choose to install it.

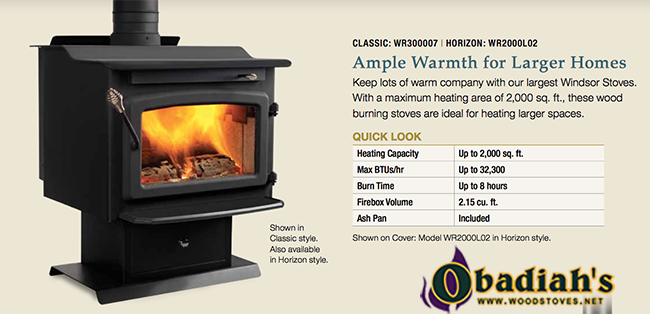

  • MORE HEAT FOR MORE SPACE
    Turn up the heat with our largest Windsor stoves. With a maximum heating area of 2,000 sq. ft., this wood burning stove is ideal for heating larger spaces.
  • CHOOSE YOUR STYLE: CLASSIC OR AMBASSADOR
    The Classic style features a traditional cast iron door, as well as a 3/16" rolled top. The Ambassador design comes equipped with cast iron legs and door featuring an eye-catching sunburst design. Plus, it offers additional durability with a thicker 5/16" top. For more flexibility in installation, convective side panels come standard with the Ambassador style.

Options

Specifications

ModelWindsor WR1000L02 Wood Stove / Windsor WR1500L02 Wood Stove
Size:Small / Medium
Dimensions:20-1/2 (W) x 23-3/4 (H) x 27 (D) / 22-1/4 (W) x 28-1/4 (H) x 30 (D)
Heating Capacity:Up to 1000 / Up to 1500
Max BTU/H (Wood):26,100 / 29,301
Efficiency: 74.50% at 5.3 grams / 63% at 4.4 grams
Burn Time:Up to 6 hrs. / Up to 8 hrs.
Log Size:18 / 22
Color/Finish:Classic Black / Classic Black
Termination:Top / Top
Certifications:OMNI / OMNI
ModelWindsor WR2000L02 Wood Stove / Windsor WR244 Wood Stove
Size:Large / Small
Dimensions:26 (W) x 26-1/2 (H) x 31 (D) / 20-5/8 (W) x 22-1/2 (H) x 26 15/16 (D)
Heating Capacity:Up to 2000 / Up to 1000
Max BTU/H (Wood):32,300 / 26,100
Efficiency: 63% at 2.7 grams / 74.50% at 5.3 grams
Burn Time:Up to 8 hrs. / Up to 6 hrs.
Log Size:20 / 18
Color/Finish:Classic Black / Classic Black
Termination:Top / Top
Certifications:OMNI / OMNI
Model Windsor WR247001 Wood Stove / Windsor WR270007 Wood Stove
Size:Small / Medium
Dimensions:20-3/8 (W) x 22-3/4 (H) x 31-3/4 (D) / 20-7/8 (W) x 27 (H) x 29-9/16 (D)
Heating Capacity:Up to 1000 / Up to 1500
Max BTU/H (Wood):18,920 / 29,301
Efficiency: 65.30% at 5 grams / 63% at 4.4 grams
Burn Time:Up to 6 hrs. / Up to 8 hrs.
Log Size:18 / 22
Color/Finish:Classic Black / Classic Black
Termination:Top / Top
Certifications:OMNI / OMNI
Model Windsor WR300007 Wood Stove
Size:Large
Dimensions:25-1/8 (W) x 26-1/2 (H) x 31-1/2 (D)
Heating Capacity:Up to 2000
Max BTU/H (Wood):32,300
Efficiency: 63% at 2.7 grams
Burn Time:Up to 8 hrs.
Log Size:20
Color/Finish:Classic Black
Termination:Top
Certifications:OMNI
