Napoleon Ascent GX36NTR Direct Vent Gas Fireplace — Specifications

Napoleon · Specifications · PDF, 1.1 MB

Specifications · PDF · 1.1 MB
AscentX36B36Specs_1.pdf
Download / view PDF ↓

About the Napoleon Ascent GX36NTR Direct Vent Gas Fireplace

New and Improved Napoleon Ascent GX36 Direct Vent Gas Fireplaces now includes a safety screen. The Ascent series has a multitude of options to fit any style decor.

UNIT INCLUDES: SAFETY BARRIER, BUILT-IN ADJUSTABLE FLAME/HEAT CONTROL, SHUT OFF, DUAL RECEPTACLE JUNCTION BOX, CERAMIC GLASS
DOOR, PAN STYLE BURNER, EXCLUSIVE PHAZER® GLOWING LOG SET AND EMBERS, SAFETY SCREEN, 20FT WIRE AND FIRESTOP. 40% FLAME/HEAT
ADJUSTMENT FOR MAXIMUM COMFORT AND EFFICIENCY. BATHROOM/BEDROOM/BEDSITTING ROOM/MOBILE HOME APPROVED. 26,000 BTU's (Uses 4" x 7" direct vent pipe)

Napoleon’s Ascent™X 36 enhances ambiance in any room with the most industry realistic, exclusive PHAZER® log set and glowing ember bed. The clean face design of the Ascent™X 36 maximizes optimal viewing to ensure your new fireplace is enjoyed to the fullest. An approved safety barrier comes standard on the Ascent™X 36, meeting tomorrow’s safety standards today.

Product Features

  • Exclusive PHAZER® log set and glowing ember bed are the most realistic in the industry
  • Clean face design with no louvers
  • Millivolt or Electronic ignition systems available
  • Flex connector complete with shut off (Electronic ignition system only)
  • Pan style burner
  • Standard safety screen

Options

  • Optional Interior Brick Radiant Panels

    Newport Brick Liner - Available only for GX36
  • Optional decorative panels (x3) Optional decorative fronts or 2″ trim kit
  • Optional remote control
  • Optional blower kit

Specifications

SpecificationsAscent GX36
Minimum Fireplace Requirements 35″ H x 35 1/2″ W x 16″ D
FuelNatural Gas/Propane w/conversion kit
BTUs 26,000
Efficiency 70.1%
Venting (Top/Rear Vent)4" x 7" Direct Vent
Mobile Home Approved Yes
BlowerOptional
Glass Size 23 – 11/16″H x 37-11/16″W (893 sq. Inches)
Weight96 lbs
WarrantyLimited Lifetime

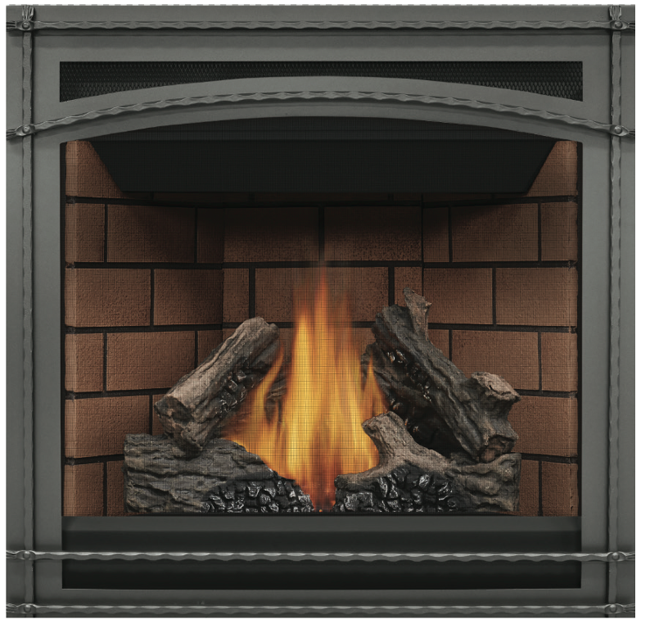

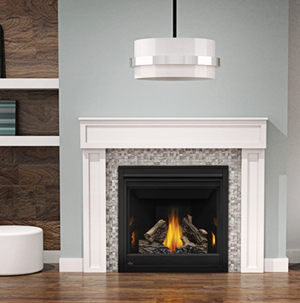

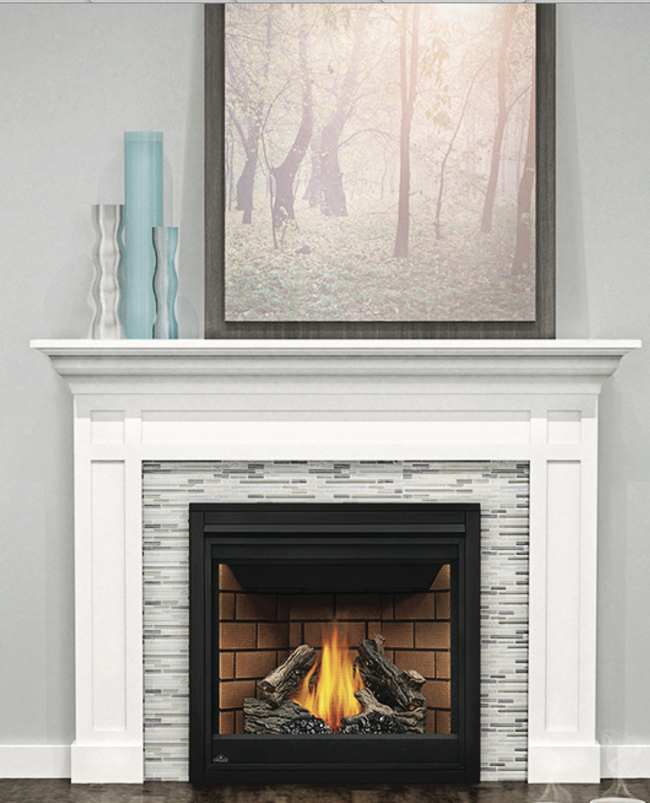

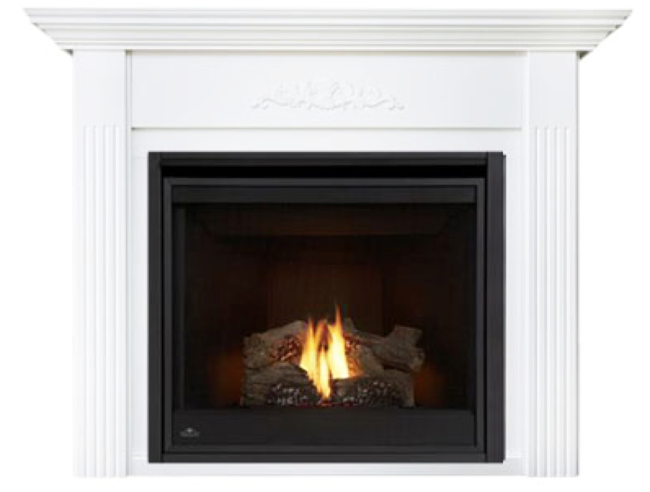

Photos
