About the Obadiah's 1600 Non-Catalytic Stove - Discontinued
This product has been discontinued as it does not meet 2020 EPA requirements. This page is for informational purposes only.
Obadiah’s 1600 Non-Catalytic Freestanding Woodstove by High Valley is highly efficient and durable. It exceeds emission standards set by the EPA and even Washington State! Producing 60,000 BTU’s and designed with a stainless steel re-burn system to maximize performance, this rustic wood stove can heat spaces up to 2,700 square feet and burn steady for up to 15 hours. Whether you are high in the mountains or low in the valleys, this wood-burning stove can be the focal point of your home with the optional Traditional Style trim kit and rivet accents.
Obadiah’s has partnered with High Valley Stoves to bring you durable and efficient woodstoves. After spending over a decade interacting with countless manufacturers and customers on how to get the most out of home heating, Obadiah’s is able to bring a seasoned quality to their stoves, that you simply won’t find anywhere else. As always, Obadiah’s puts the customer’s trust first because without our customers, there is no Obadiah’s.
Features
- Single air control that regulates the fire
- Air wash system cleans the ceramic glass viewing window
- Double wall construction gives you convection heat with radiant heat from the front
- Optional Variable speed 75 CFM blower with rheostat and bracket
- Step-top cooking surface
- Washington State Approved!
- EPA approved
- Mobile home approved (with the outside air kit)
- Cast Iron Door
- Non-Catalytic Combustion
- Stainless Reburn Combustion Tubes
- Firebrick Lined Firebox
- Overnight Burntime
- Flat Black Finish
Options
- Plated Door Door Colors: Copper, Pewter, Dark Pewter, and Gold
- Hand-Rubbed Color Finishes Available in Bronze, and Copper
Specifications
| Specifications | Obadiahs 1600 Non-Catalytic Woodstove |
| Height | 30" |
| Width | 27" |
| Depth | 30.5" |
| Weight | 581 lbs |
| Firebox | 2.7 cu ft |
| Max Long Length | 21" |
| Flue | 6" Top or Rear Vent |
| Rear Flue Height | 28.75" to Flue Top |
| Emissions | 2.7 gr/hr |
| Efficiency | 79.7% |
| Burn Time | Up to 15 hr |
| Output | 60,000 BTU/hr |
| Heat Capacity | Up to 2,700 sq ft |
| Blower | 75 CFM |
| Tested | UL 1492 |
| Floor Protector | UL 1618 Type 1 Ember Protection |
| Minimum Size | US = 43"W x 49"D |

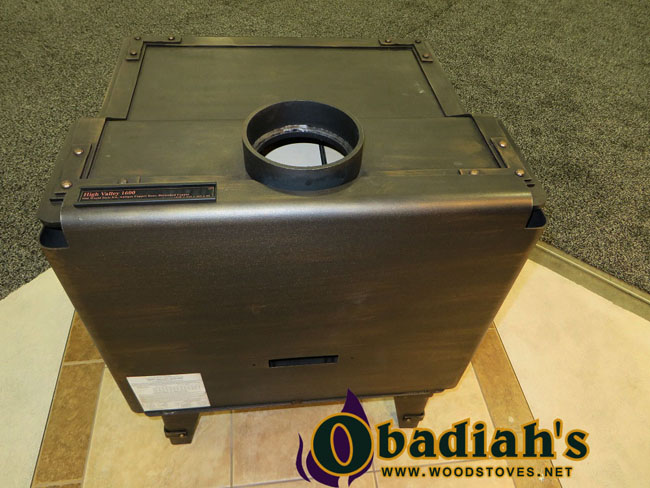

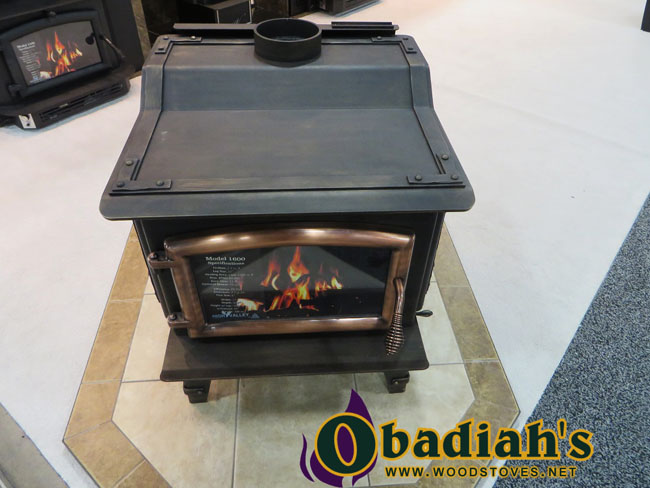

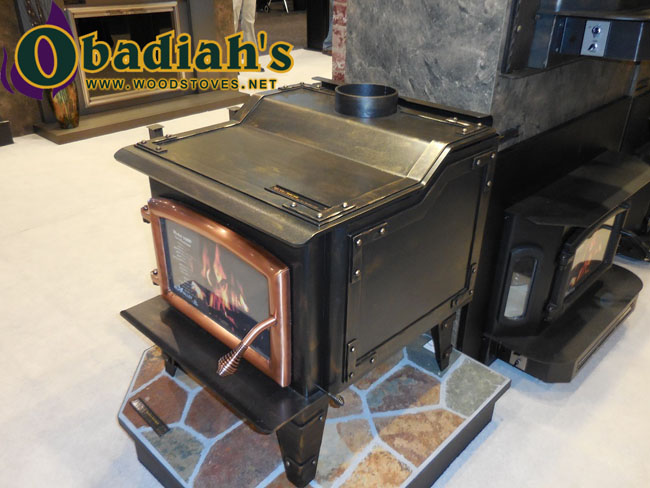

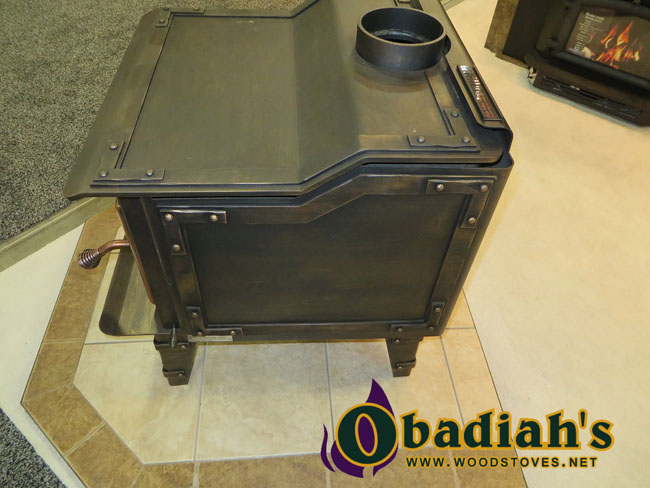

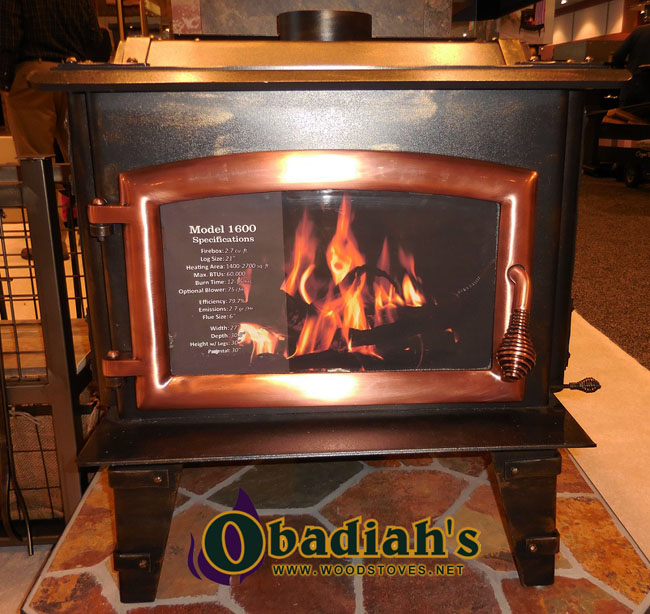

Photos
