About the Quadrafire Explorer III Wood Stove - Discontinued

This product has been discontinued and is no longer available. This page is for informational purposes only.

The Quadrafire Explorer III Wood Stove provides maximum heat and a clean burn with the Quadra-Fire four point burn system, delivering 70,300 BTUs of performance. Operation of a wood stove has never been easier with the Automatic Combustion Control System. Quadrafire steel wood stoves are built to last with durable plate steel. Order yours from Obadiah's Woodstoves today!

Features:

70,300 BTUs - heats 1,500 to 4,000 square feet, based on climate and home efficiency
EPA certified with low emission levels of 2.0 grams per hour
3.0 cu. ft. firebox capacity / 22" recommended log length
Up to 15 hours of burn time from each load of wood
Easy start up
Large ash drawer for easy cleanup

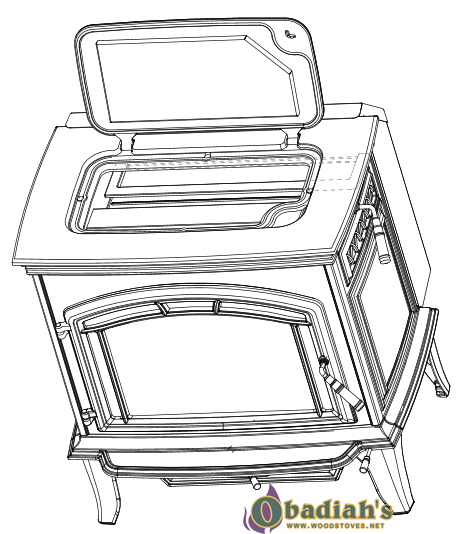

Top loading door

Options:

Stove finishes (Black, Porcelain Mahogany, Porcelain Black)

More Stove finishes (Porcelain Blue, Porcelain Frost)

Firescreen

Fan kit

Specifications

Specifications	Quadrafire Explorer III Wood Stove
Width	30.13"
Height	31.38"
Depth	28"
Recommended Log Length	22"
EPA 1st Hour Peak BTU's	70,300
Heating Capacity	1,500 - 4,000 Sq. Ft.
Emissions	2.0 Grams/Hr
Efficiency	74.4%
Firebox Size	3.0 Cu. Ft.
Fuel	Wood
Shipping Weight	545 lbs.
Maximum Burn Time	15 Hours

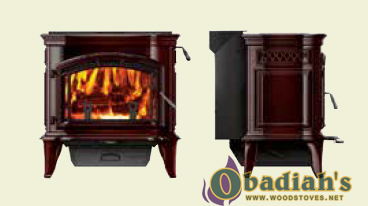

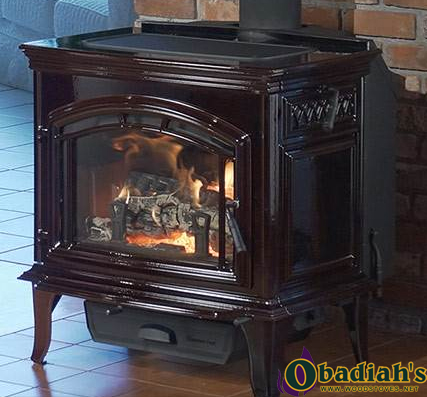

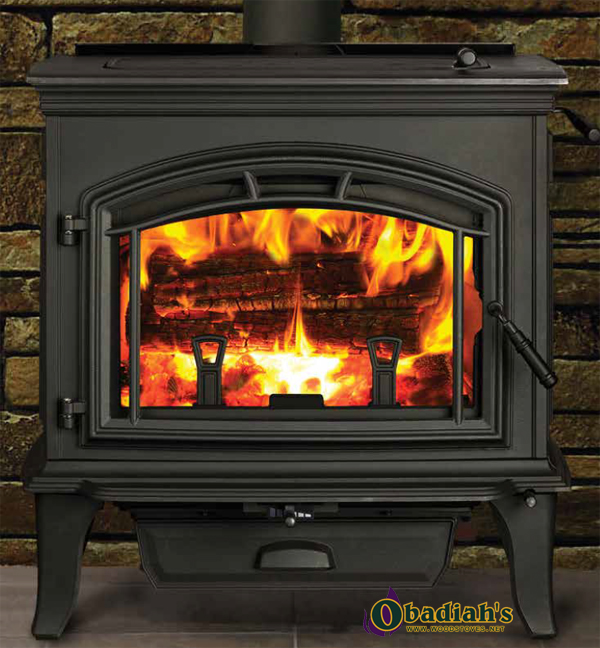

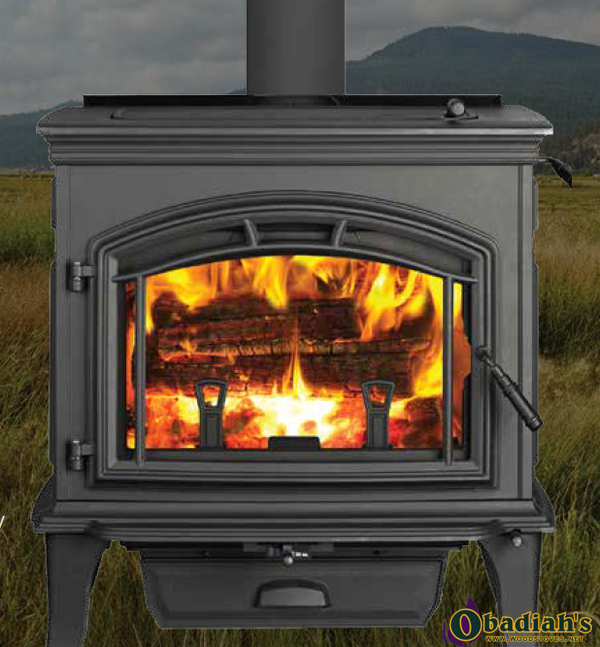

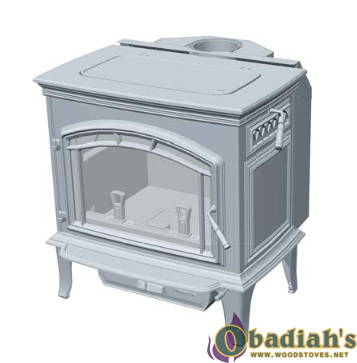

Photos

Quadrafire Explorer III Wood Stove - Discontinued — Owner's Manual

Need help with this?

We have sold and serviced these appliances since 1999. If you need a part or advice, call us.

406-300-1776
