Regency Hampton H35 Cast Iron Large Direct Vent Gas Stove — Manual
Regency · Manual · PDF, 15.3 MB
About the Regency Hampton H35 Cast Iron Large Direct Vent Gas Stove
This product is no longer available through Obadiah's. This page is for informational purposes only.
The Regency Hampton H35 is the perfect traditional style cast iron gas stove for heating large spaces. With a wide variety of accessories and styles to choose from, the Hampton H35 is sure to fit any traditional style home. Stay warm with the Regency Hampton H35 Cast Iron Direct Vent Gas Stove.
The Regency Large Hampton Gas Stove features the most realistic gas fire available. Complement the classic style with a decorative glass grill or add double screen doors to get the look of a real wood fire. Direct vent technology allows you to put your Hampton Gas Stove exactly where you want it without needing a chimney. The Hampton H35 is backed by the industry’s most comprehensive Limited Lifetime Warranty.
Features
- Durable cast iron exterior provides both beauty and radiant heat
- Heat radiating ceramic glass provides maximum viewing area
- Platinum infused glowing embers enhance the fire
- Heavy duty cast iron doors complete the wood fire affect.
- Direct vent technology protects your in-home air quality.
- Safety screen included
- Controllable heat with Proflame remote control
- Operates on natural gas or propane
- Limited Lifetime Warranty
Options
- Rich porcelain, enamel finishing adds subtle elegance
- Whisper quiet variable speed blower to push the heat
Specifications
| Specifications | Hampton H35 NG / Hampton H35 LP |
| Maximum BTU | 30,000 / 29,500 |
| Turn Down BTU | 21,500 / 24,000 |
| Efficiency | 74% / 76% |
| EnerGuide Rating | 66.34% / 67.72% |
| View Area | 301 sq. in. / 301 sq. in. |
| Room Size | Large / Large |
| Vent Type | Direct Vent / Direct Vent |
| Minimum Supply Pressure | 5.0” W.C. (1.25 kPa) / 12.0” W.C. (3.00 kPa) |
| Manifold Pressure - High | 3.8” W.C. (0.95 kPa) / 11” W.C. (2.74 kPa) |
| Manifold Pressure - Low | 1.1” W.C. (0.27 kPa) / 2.9” W.C. (0.72 kPa) |
| Orifice Size | #33 DMS / #51 DMS |
| Orifice Size - (De-rated BTU Conversion) | #37 DMS / #52 DMS |
| Minimum Input | 18,000 BTU/h (5.28 kW) / 17,500 BTU/h (5.13 kW) |
| Minimum Input - (De-rated BTU Conversion) | 14,300 BTU/h (4.19 kW) / 15,000 BTU/h (4.39 kW) |
| Maximum Input | 36,000 BTU/h (10.55 kW) / 34,000 BTU/h (9.97 kW) |
| Maximum Input- (De-rated BTU Conversion) | 30,000 BTU/h (8.79 kW) / 28,500 BTU/h (8.35 kW) |
| Vent Sizing | 4” Inner / 6-5/8” Outer / 4” Inner / 6-5/8” Outer |
| Approved Venting Systems | |
| Flex Vent Systems | FPI AstroCapTM Flex Vent / FPI AstroCapTM Flex Vent |
| Rigid Pipe Vent Systems | Simpson Direct Vent Pro®, American Metal Products® Amerivent Direct Security Secure Vent®, Selkirk Direct-TempTM, Metal-Fab® Sure Seal, ICC Direct Vent / Simpson Direct Vent Pro®, American Metal Products® Amerivent Direct Security Secure Vent®, Selkirk Direct-TempTM, Metal-Fab® Sure Seal, ICC Direct Vent |
| Unit Dimensions | |
| Width (front) | 26.875" / 26.875" |
| Height | 28" / 28" |
| Depth | 21" / 21" |

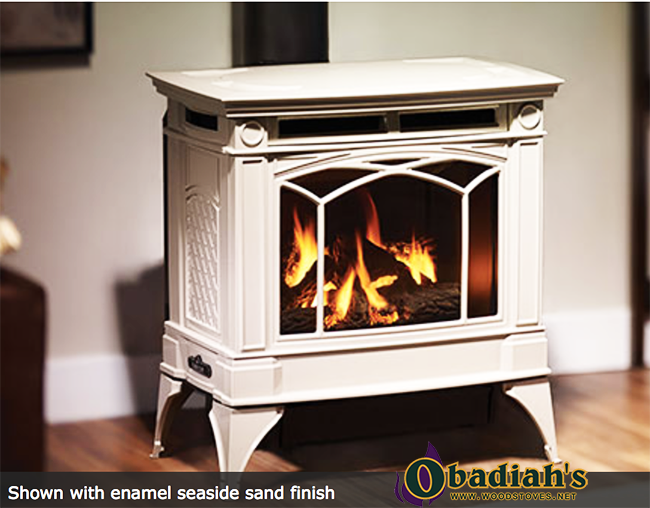

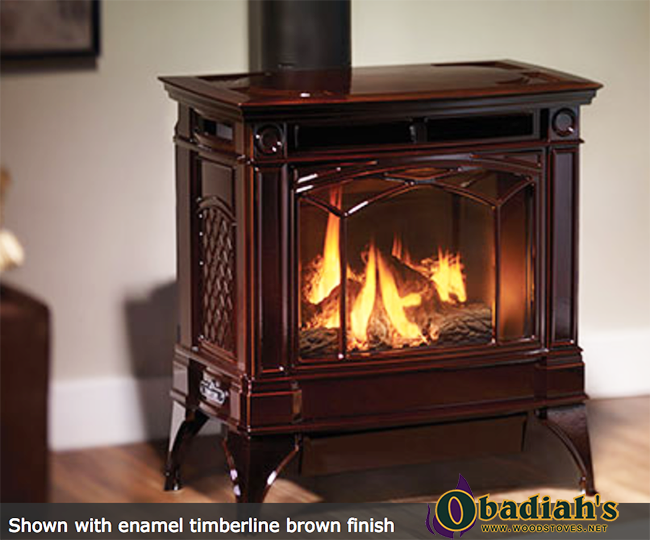

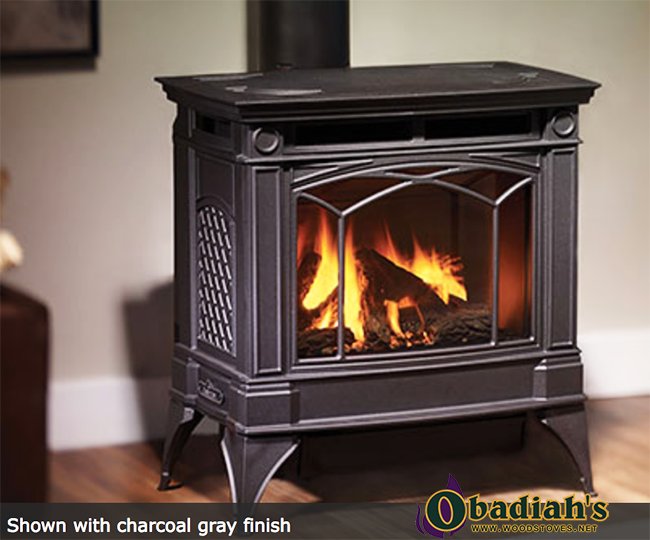

Photos
Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
