Regency Hampton HI400 Catalytic Large Wood Insert - Discontinued — Specifications
Regency · Specifications · PDF, 684 KB
About the Regency Hampton HI400 Catalytic Large Wood Insert - Discontinued
This product has been discontinued in the USA as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.
The Regency HI400 Hampton Series Wood Insert is styled perfectly to fit any traditional designed large home. The Hybrid Catalytic Combuster technology meets all 2015 EPA regulations, so no worries. The HI400 is a Large Wood Insert is to be installed in a full masonry application. The HI400 produces a High-BTU output, allowing up to 2,600 sq ft to be toasty warm. The Regency Hampton HI400 is a cast iron insert, allowing heat to radiate for hours after the fire goes out.
Perfectly, and traditionally styled, this hybrid wood insert by Hampton completes the look of any room – with modern, efficient technology, and a classic traditional design; you get the best of both worlds – without sacrificing style or efficiency. The Hampton HI400 is the next generation of wood inserts, with the ability to heat homes up to 2600 square feet while meeting strict 2016 EPA standards.
Features
- Eco-Boost™ Technology
- 2.6 cu. ft. firebox accommodating 22" logs
- Single lever bypass damper
- Single-lever air control
- High performance brick-lined firebox
- Clean glass airwash system
- 250 sq. inch viewing area
- 110° opening door for easy loading
- Single load of wood providing warmth for up to 14 hours*
- EPA Certified, providing an environmentally friendly and clean burn
- Simple single draft rod for heat adjustment
- * Length of burn time and BTU output depend upon wood species used, moisture content of wood, elevation, climate conditions and installation.
Options

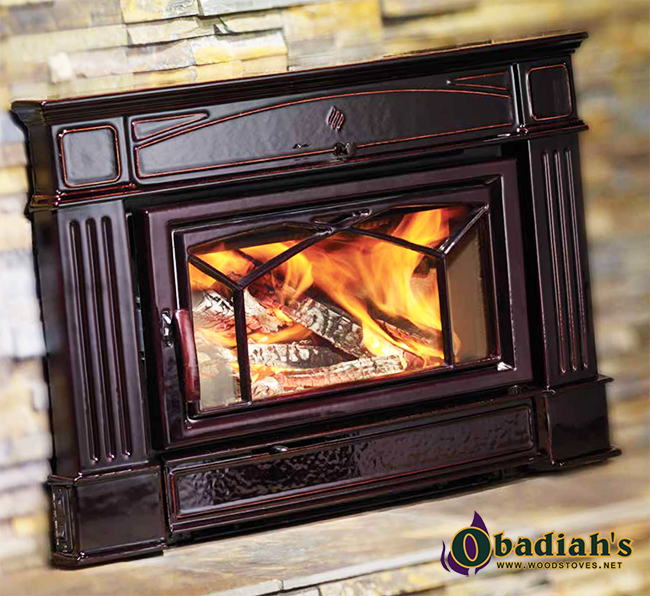

- Enamel Faceplate
- Temperature sensitive blower automatically turns on and off
Specifications
| Specifications | Hampton HI400 Wood Insert |
| Maximum BTU | 77,000 |
| Log Size | 22" |
| Burn Time | up to 14 hrs. |
| Optimum Efficiency | 86.1% |
| Firebox Capacity | 2.6 cu. ft |
| Emissions (gms/hr) | 1.8 |
| View Area | 250 sq. in. |
| Room Size | 2600 sq. ft. |
| Minimum Fireplace Opening* | |
| Width (front) | 28.8125" |
| Height | 21.75" |
| Depth | 19" |

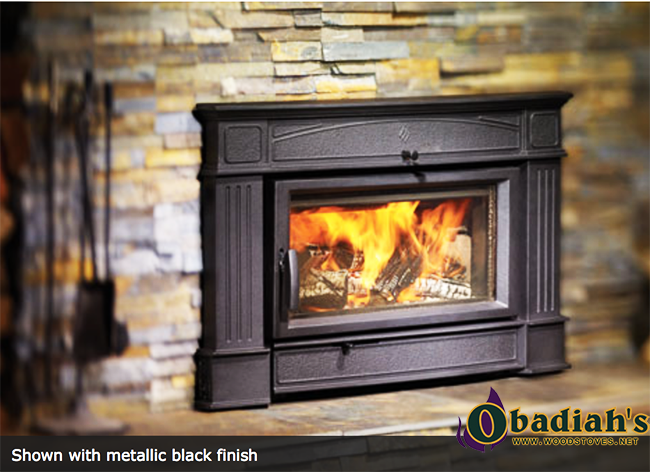

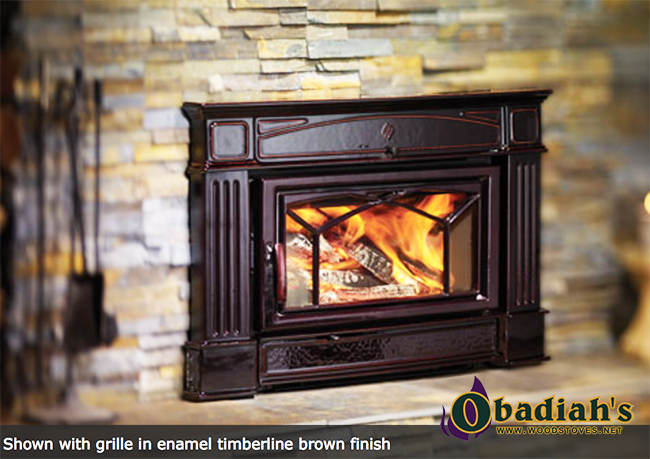

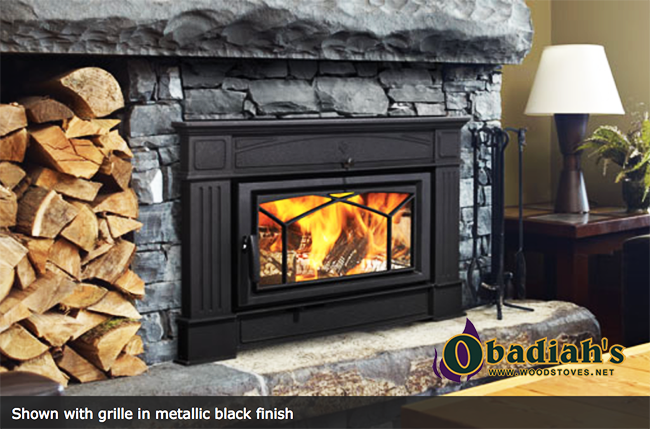

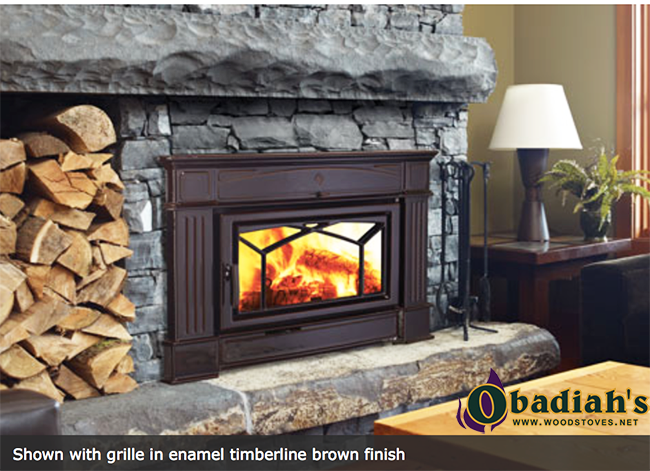

Photos






Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
