Regency HZ33CE Contemporary Direct Vent Gas Fireplace — Specifications

Regency · Specifications · PDF, 1.1 MB

Specifications · PDF · 1.1 MB
HZ33CE_Specifications.pdf
Download / view PDF ↓

About the Regency HZ33CE Contemporary Direct Vent Gas Fireplace

This product is no longer available through Obadiah's. This page is for informational purposes only.

Perfect for small to medium-sized contemporary living spaces, Regency’s Horizon HZ33CE gas fireplace features a clean, louverless face that allows surround materials to be installed to the edges for an elegant, minimal, clean face appearance. Your eye will be drawn to the flames as they emerge from a bed spanning the full 33" length of the fireplace. With plenty of design accessories, achieving the right look is easy with available ceramic spa stones, reflective crystals or volcanic stones. Porcelain enamel inner panels reflect the flames, conveying dancing light. Heat-radiating ceramic glass provides a clear view of the fire while helping to deliver heat into the space.

Features

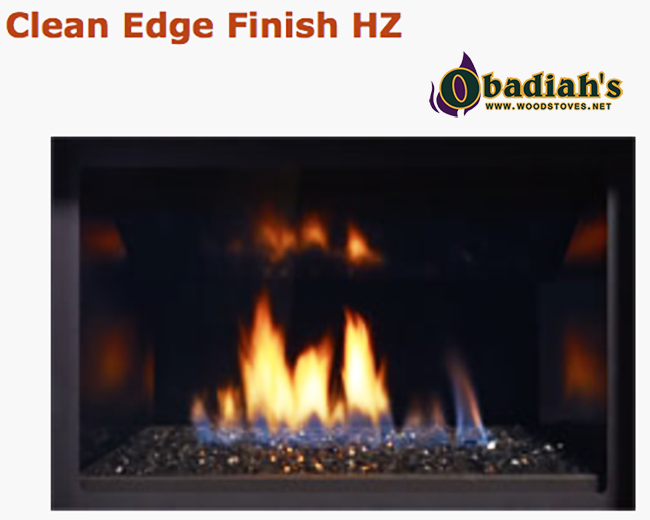

  • Clean face, louverless design with disappearing ceramic glass. No need for a surround or faceplate, finish you wall right to the edge of the fireplace.
  • Dancing flames emerge from a stunning fire bed that encompasses the entire floor of the fireplace.
  • Proflame remote control (included)
  • Safety screen (included)
  • High radiant heat output delivered through a 416 square inch ceramic glass
  • Electronic Ignition with SureFireTM switch
  • Concealed yet easily accessible control plate at the front of the unit, can be lifted to reveal quick access to the valve and heat control
  • Variable speed blower to distribute the heat further into the room
  • Direct vent technology protects your in-home air quality
  • Operates on natural gas or propane
  • Limited Lifetime Warranty

Options

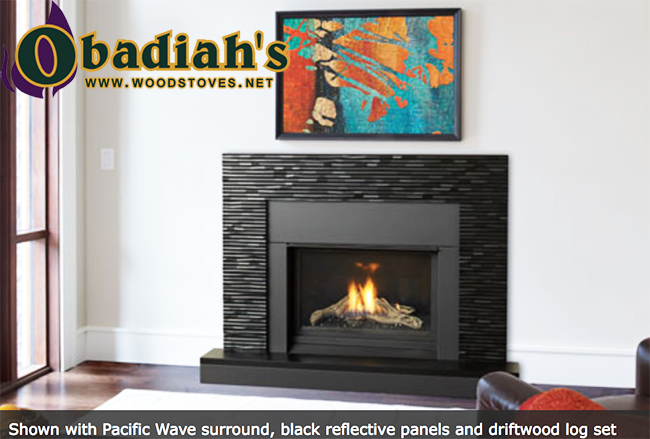

• Pacific Wave surround

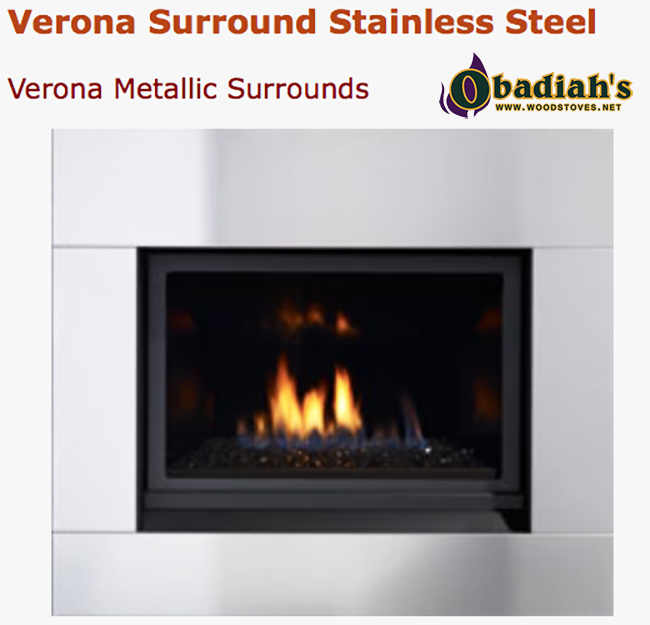

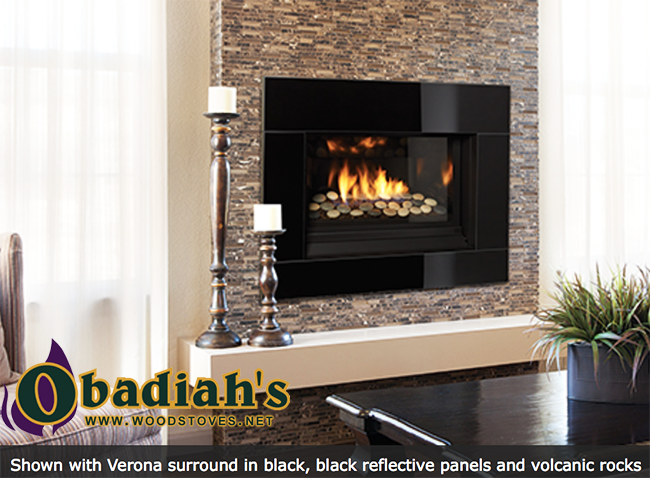

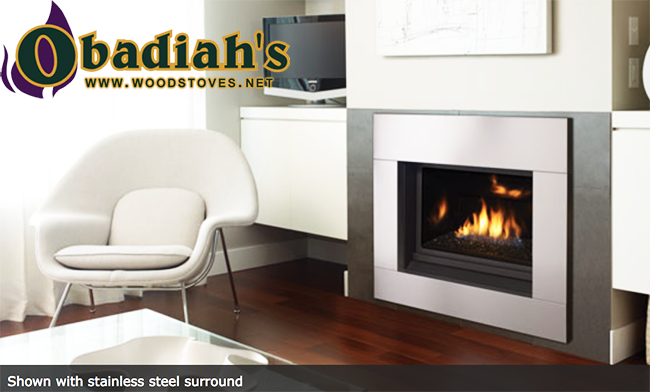

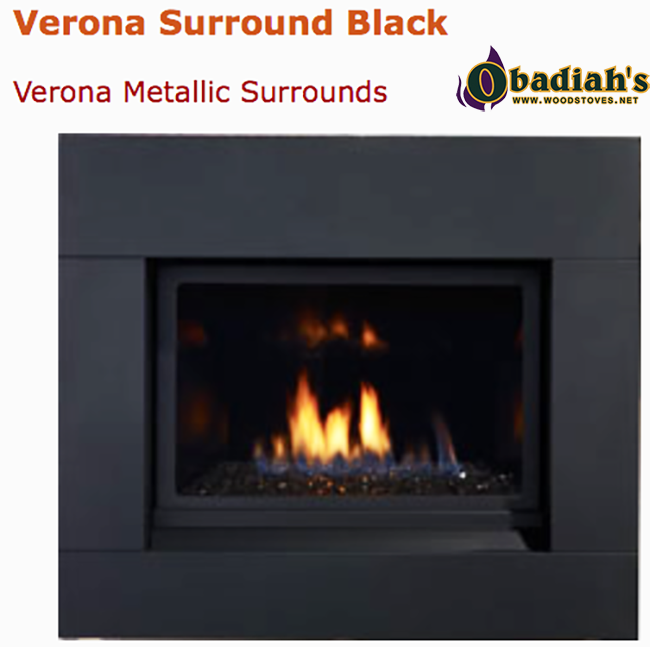

• Verona surround in 2 colors
• Black enamel inner reflective panels
• Driftwood log set
• Crystals in various colors
• Firebeads in various colors
• Volcanic stones or ceramic spa stones • Wall thermostat
• Propane conversion kit
• Vertical or horizontal vent terminations • Variable speed blower
• AstroCap venting system

Specifications

ModelHZ33CE-NG10 / HZ33CE-LP10
Fuel TypeNatural Gas / Propane
Minimum Supply Pressure5” W.C. (1.25 kPa) / 11” W.C. (2.73 kPa)
Manifold Pressure - High3.5” W.C. (0.87 kPa) / 10” W.C. (2.48 kPa)
Manifold Pressure - Low1.6” W.C. (0.41 kPa) / 6.4” W.C. (1.59 kPa)
Orifice Size -Altitude 0-4500 ft.#47 DMS / #56 DMS
Minimum Input Altitude 0-4500 ft. (0-1372m)12,000 BTU/h (3.51kW) / 12,500 BTU/h (3.66 kW)
Maximum Input Altitude 0-4500 ft. (0-1372m)17,000 BTU/h (4.98 kW) / 15,000 BTU/h (4.39kW)
Vent Sizing4” Inner / 6-5/8” Outer / 4” Inner / 6-5/8” Outer
WarrantyLimited Lifetime / Limited Lifetime
Efficiency69.00% / 69.00%
EnerGuide Rating65.71% / 65.60%
View Area416 sq.in. / 416 sq.in.
Clean Front Dimensions
Width (front)29.4375" / 29.4375"
Height21.375" / 21.375"
Depth16" / 16"
Venting Systems
Flex VentFPI AstroCapTM Flex Vent / FPI AstroCapTM Flex Vent
Rigid VentSimpson Direct Vent Pro® Selkirk Direct-TempTM Metal-Fab® Sure Seal ICC Excel / Simpson Direct Vent Pro® Selkirk Direct-TempTM Metal-Fab® Sure Seal ICC Excel
