Regency HZ40E Linear Contemporary Direct Vent Gas Fireplace — Specifications
Regency · Specifications · PDF, 1.0 MB
About the Regency HZ40E Linear Contemporary Direct Vent Gas Fireplace
This product is no longer available through Obadiah's. This page is for informational purposes only.
The Regency HZ40E Direct Vent Gas Fireplace is a dramatic linear contemporary fireplace that includes today’s sleek, wide contemporary fireplace styling in any medium size living space. With extended options, you can add a tasteful surround in a variety of modern finishes or enjoy a clean finish with no louvers or faceplates. What sets the Regency Horizon apart from all others is the strong, impressive fire that appears like magic through a firebed of crystals or spa stones.
Regency Direct Vent Gas Fireplaces are sleekly styled to applaud any modern designed decor. With high efficiency ratings, and a limited lifetime warranty, you are sure to be pleased with your Regency HZ40E zero clearance gas fireplace.
Features
- Clean contemporary lines with picture frame quality
- Sleek wide view firescape framed by choice of three modern frames
- Double the fire drama with reflective panels for a stronger fire show
- Proflame remote control (included)
- Safety screen (included)
- 30" burner covered with crystals offers an impressive landscape fire
- Electronic ignition with SureFire™ switch for optimal operating efficiencies and convenient operation
- Non-reflective ceramic glass for a clear view of the fire
- Operates on natural gas or propane (must specify)
- Direct vent
Options
- Vibrant crystals or relaxing spa stones replace traditional logs
Specifications
| Model | HZ40E-NG10 / HZ40E-LP10 |
| Fuel Type | Natural Gas / Propane |
| Minimum Supply Pressure | 5” W.C. (1.25 kPa) / 11” W.C. (2.73 kPa) |
| Manifold Pressure - High | 3.5” W.C. (0.87 kPa) / 10” W.C. (2.48 kPa) |
| Manifold Pressure - Low | 1.6” W.C. (0.41 kPa) / 6.4” W.C. (1.59 kPa) |
| Orifice Size -Altitude 0-4500 ft. | #40 DMS / #53 DMS |
| Minimum Input Altitude 0-4500 ft. (0-1372m) | 18,000 BTU/h (5.28 kW) / 21,000 BTU/h (6.15 kW) |
| Maximum Input Altitude 0-4500 ft. (0-1372m) | 26,000 BTU/h (7.61 kW) / 25,500 BTU/h (7.47 kW) |
| Vent Sizing | 4” Inner / 6-5/8” Outer / 4” Inner / 6-5/8” Outer |
| Warranty | Limited Lifetime / Limited Lifetime |
| Venting Systems | |
| Flex Vent | FPI AstroCapTM Flex Vent / FPI AstroCapTM Flex Vent |
| Rigid Vent | Simpson Direct Vent Pro® Selkirk Direct-TempTM Metal-Fab® Sure Seal ICC Excel / Simpson Direct Vent Pro® Selkirk Direct-TempTM Metal-Fab® Sure Seal ICC Excel |

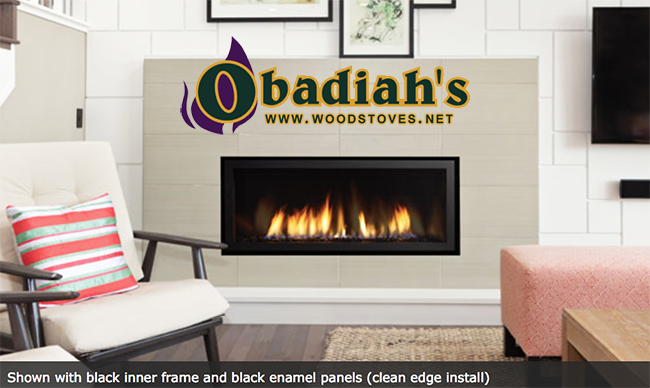

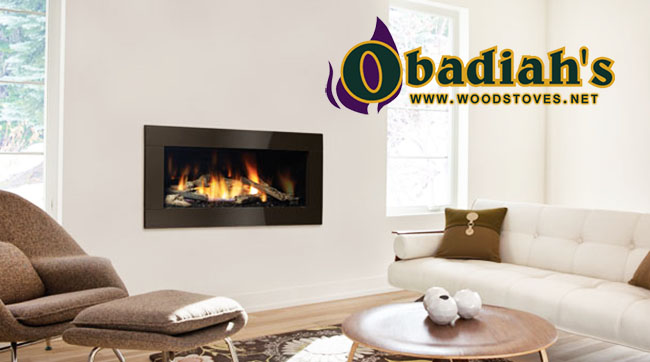

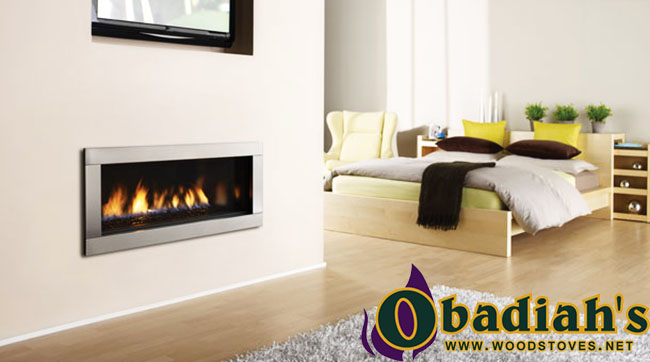

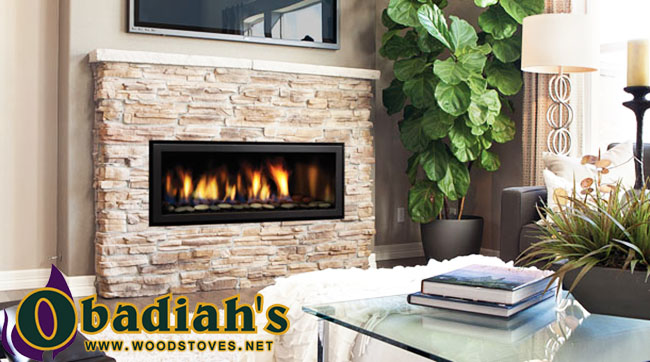

Photos
