Regency HZ42STE See-Thru Linear Direct Vent Gas Fireplace — Specifications
Regency · Specifications · PDF, 964 KB
About the Regency HZ42STE See-Thru Linear Direct Vent Gas Fireplace
This product is no longer available through Obadiah's. This page is for informational purposes only.

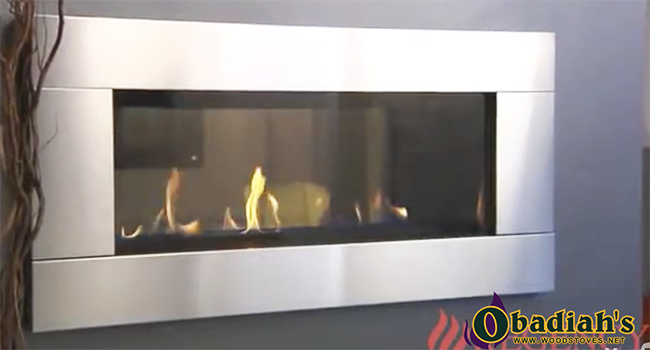

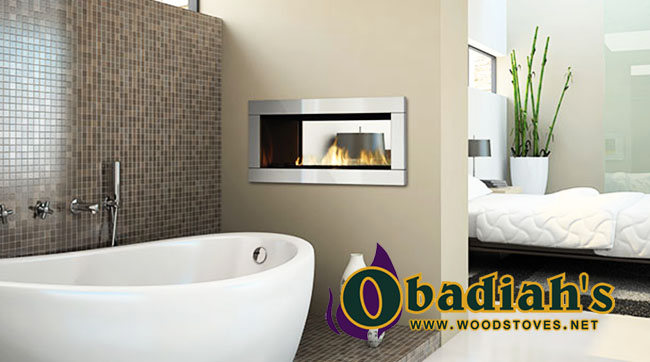

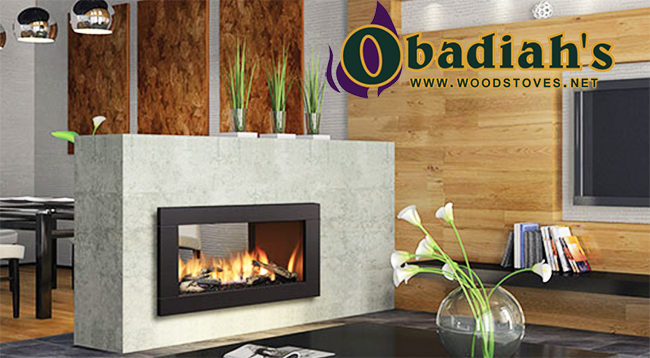

The Regency Horizon HZ42STE See-Through Direct Vent Gas fireplace can be used to create two amazing fire views from separate rooms using one fireplace. The Regency Horizon See Through is a cost effective way to divide a larger space while maintaining an open feel. This beautifully designed gas fireplace is sure to compliment any contemporary style home.
Regency Direct Vent Gas Fireplaces are known for the Superior quality and design. The HZ42STE Linear See Thru Gas fireplace offers options to suit any decor.
Features
- Clean contemporary lines with picture frame quality
- Double the fire drama with reflective panels for a stronger fire show
- Outstanding long, full, lazy flames that can be turned down for optimum heat control
- Accent light enriches the realism of the fire
- Decorate two different ways in two different rooms
- 30" burner covered with crystals for a landscape fire
- Non reflective ceramic glass for a clear view of the fire
- Electronic Ignition with SureFire switch
- AstroCap venting
- Operates on natural gas or propane
- Direct vent
- Limited Lifetime Warranty
Optional Accessories
- Vibrant crystals or relaxing river stones replace traditional logs
Specifications
| Model | HZ42STE-NG10 / HZ42STE-LP10 |
| Fuel Type | Natural Gas / Propane Gas |
| Minimum Supply Pressure | 5” W.C.(1.25 kPa) / Propane Gas 12” W.C. (2.98 kPa) |
| Manifold Pressure - High | 3.5” W.C. (0.87 kPa) / 10” W.C. (2.49 kPa) |
| Manifold Pressure - Low | 1.6” W.C. (0.40 kPa) / 6.4” W.C. (1.59 kPa) |
| Orifice Size | #40 DMS / #53 DMS |
| Minimum Input Altitude 0-4500 ft. (0-1372m) | 17,500 BTU/h (5.13 kW) / 19,500 BTU/h (8.79kW) |
| Maximum Input Altitude 0-4500 ft. (0-1372m) | 26,000 BTU/h (7.62 kW) / 24,500 BTU/h (10.84 kW) |
| Vent Sizing | 4” Inner / 6-5/8” Outer / 4” Inner / 6-5/8” Outer |
| Viewing Area | 928 Sq. inches / 928 Sq. inches |
Photos
