Regency Pro-Series F5200 Wood Stove — Manual

Regency · Manual · PDF, 6.2 MB

Manual · PDF · 6.2 MB
Regency-Pro-Series-F5200-Wood-Stove-Manual.pdf
Download / view PDF ↓

About the Regency Pro-Series F5200 Wood Stove

This product is no longer available through Obadiah's. This page is for informational purposes only.

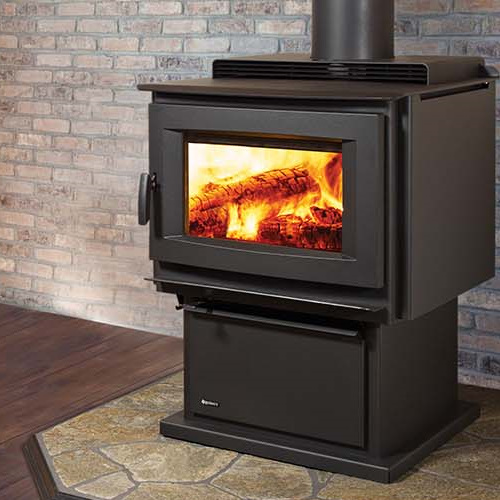

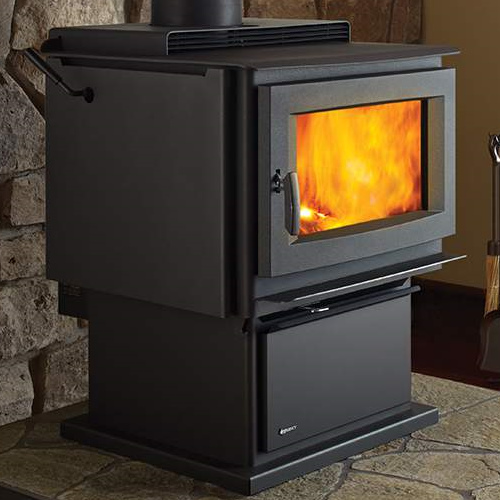

The Regency Pro-Series F5200 Wood Stove is one of the original Regency stoves that features Eco-Boost triple burn technology. The F5200 wood stove lets you load an impressive 90 pounds of fuel. Its clean, classic design provides the perfect backdrop to the wide view cast door giving you a large fire view that will take your breath away!

Features

  • The Regency Pro-Series F5200 heats up to 3,000 square feet!
  • Load wood front to back or side to side
  • Large fire viewing area
  • Heat radiating ceramic glass
  • Heavy duty cast hinges
  • Solid forged steel adjustable cam lock
  • Front mounted air adjustment & side mounted catalytic bypass
  • Easy-to-read catalytic thermometer
  • High performance brick-lined firebox
  • Non-obtrusive air wash curtain
  • Welded ash lip
  • Rear heat deflector allowing for closer clearances
  • Mobile home and alcove approved
  • 170° opening door for easy loading
  • Heavy duty 3/16 in. steel firebox
  • Triple-burn technology creates longer and more complete burns
  • Limited Lifetime Warranty

Specifications

Specifications Regency Pro-Series F5200
Overall Dimensions 39-3/4"H x 29"W x 31-3/16"D
Heating Capacity 3,000 Sq. Ft.
Max Heat Output 80,000 BTUs
Flue Size 6"
Minimum Chimney Height 15'
Max Log Length 22"
Viewing Area 213 sq. in.
Emissions 0.9 g/h
Efficiency 86%
Firebox Size 4.4 Cu. Ft.
Fuel Wood
Maximum Burn Time 30 Hours

Photos
