Superior Astria Gemini / Superior DRT3000 Traditional Direct Vent Gas Fireplace — Specifications
Superior · Specifications · PDF, 664 KB
About the Astria Gemini / Superior DRT3000 Traditional Direct Vent Gas Fireplace
This fireplace meets all 2015 ANSI barrier requirements.
The Astria Gemini / Superior DRT3000 Traditional direct-vent gas fireplace series warms up the room with a traditional log appearance and offers design versatility that will aesthetically enhance any room.
Modest, yet refined, the new Astria Gemini / Superior DRT3000 Series direct-vent gas fireplaces combine beauty, efficiency and value into one package. These fireplaces offer a clean-face heat circulating design combined with a realistic energy saving flame, glowing embers, and oak logs for a traditional touch. To suit the mood of the occasion, you have complete comfort and flame control with high and low settings that are operated from the flip of a wall switch. New controls offer energy saving pilotless ignition with standard seamless battery backup, so you can count on your fireplace to provide heat even during a power outage. Astria Gemini / Superior DRT3000 Series gas fireplaces are also a leader in heating efficiency and cost less to operate. With optional accessories like remote control and stylish interior liners, you can customize the Astria Gemini / Superior DRT3000 fireplace to compliment any room.
Features
- Select from four sizes - 33", 35", 40" and 45" - to accommodate the size of your room and heating needs.
- Oak logs and glowing embers deliver an elegant fire presentation.
- A newly designed pan burner produces brilliant flames for a vibrant presentation and hours of enjoyment.
- High/Low flame operation allows you to adjust the flame intensity and heat.
- Clean, radiant design blend with any style of mantel or trim.
- Heat-circulating design increases warm air distribution for exceptional supplemental heat.
- High/low flame control allows you to control the ambiance in the room for maximum comfort and enjoyment.
- Choose from Millivolt ignition system or energy saving intermittent pilot electronic ignition. Both systems provide reliable operation during a power outage.
- Standard IPI/CPI switch for easier operation during severe cold temperatures.
- Standard on/off and high/low flame control allows you to control the flame in the room from a conveniently located wall switch (provided).
- Easy access to control area without having to remove the safety barrier.
- Combo (top/rear) venting (except 33” models) for maximum installation flexibility.
- 2015 ANSI barrier compliant.
- Approved for use in any room including bedrooms.
Optional Accessories
- Optional blower helps circulate warm air into a large room for maximum comfort.
- Optional wireless remote controls deliver the ultimate convenience.
- Added options like a wall thermostat or thermostat remote control for easy and trouble free operation.
- Add an optional ceramic fiber brick liner for a more traditional look.
Specifications
| Model | Gemini 33 / DRT3033 / Gemini 35 / DRT3035 |
| Venting Type | Direct Vent / Direct Vent |
| Framing Width | 33-3/4" / 35-3/8" |
| Framing Height | 34-1/4" / 36-1/4" |
| Framing Depth | 14-1/2" / 18" |
| BTU | 13,000 / 14,000 / 15,000 / 16,000 |
| Style | Traditional / Traditional |
| View Style | Front View / Front View |
| Controls | Optional Remote / Optional Remote |
| Warranty | Limited Lifetime Warranty / Limited Lifetime Warranty |
| Model | Gemini 40 / DRT3040 / Gemini 45 / DRT3045 |
| Venting Type | Direct Vent / Direct Vent |
| Framing Width | 40 3/8" / 45 3/8" |
| Framing Height | 41-1/4" / 41-1/4" |
| Framing Depth | 18" / 18" |
| BTU | 19,000 / 20,000 / 21,500 |
| Style | Traditional / Traditional |
| View Style | Front View / Front View |
| Controls | Optional Remote / Optional Remote |
| Warranty | Limited Lifetime Warranty / Limited Lifetime Warranty |

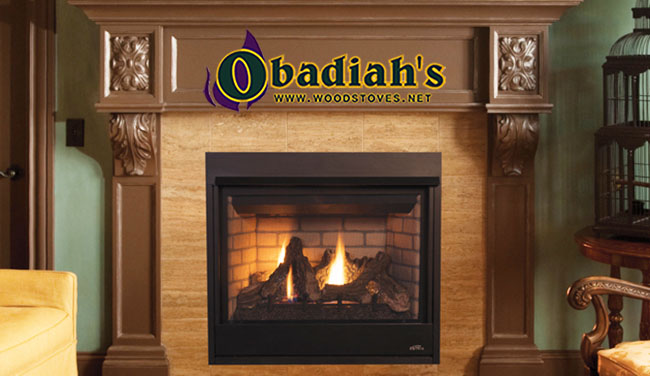

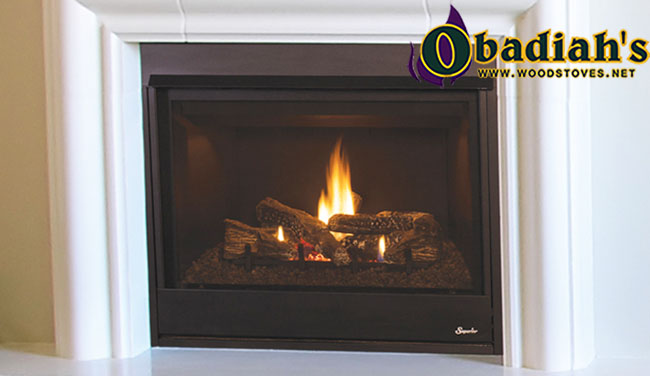

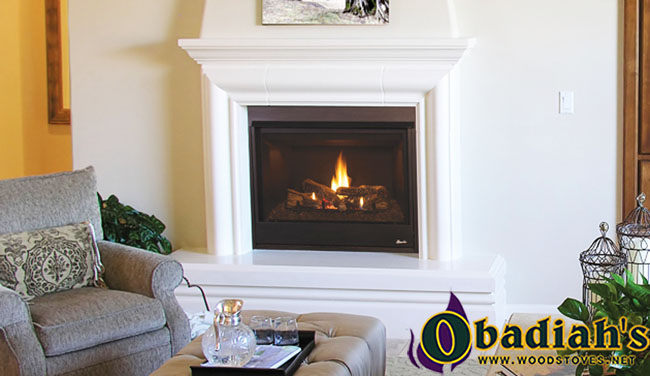

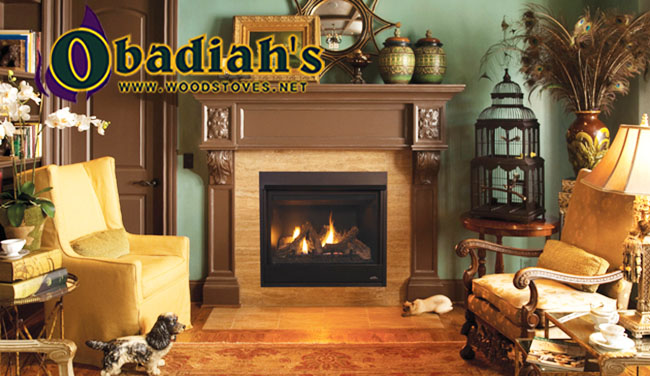

Photos
