Supreme Duet See-Thru Fireplace - Discontinued — Brochure

Supreme · Brochure · PDF, 904 KB

Brochure · PDF · 904 KB
DuetFireplaceBrochure.pdf
Download / view PDF ↓

About the Supreme Duet See-Thru Fireplace - Discontinued

This product has been discontinued as it does not meet 2020 EPA Emission Standards. This page exists for informational purposes only.

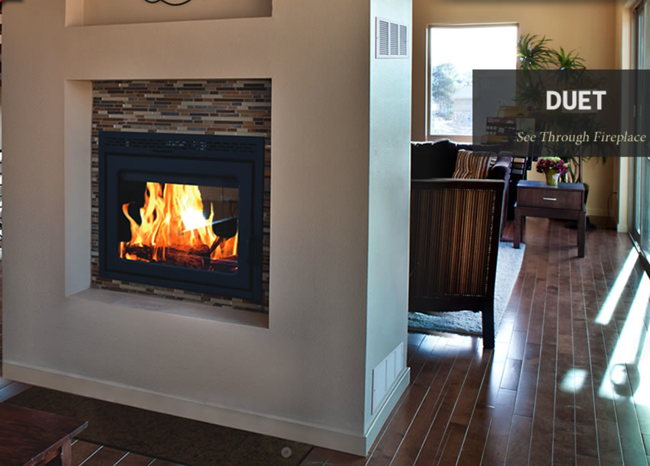

Supreme Duet See-Thru Wood Fireplace can be installed as a Zero Clearance or as a masonry insert. The front glass offers an expansive (332 square inch glass) viewing area, and 100,000 BTU's operating at High Efficiency to ensure your toasty warm. Phase III EPA: 3.5 g/hour with EPA method 28 & 5G2.2 g/hour with CSA method B-415.1.10. This beautifully designed wood fireplace is perfect for contemporary and traditional designs to fit all your decor and heating needs.

A BBQ grill is stored inside the fire chamber to allow users to cook their favorite meals when the wood is reduced to embers. The food is cooked evenly and quickly because the heat is well retained inside this unique stainless steel firebox.

Features



  • Stainless Steel Firebox
  • Automatic Air Control
    (Patent No. US 7,325,541 B2)


  • Chimney Sweeping Cap
  • (2) Blowers (125 CFM each)
  • Unique Door Operation
  • Sealed Ash Pan
  • Removable Ash Lip
  • Easy-Light
    (Patent pending # GB1305646.0)


  • Downward Draft Secondary Air Control
    (Patent pending No. GB1307428.1)

Options

  • Fireplace available in metallic black or charcoal
  • Fresh air kit
  • Can be installed with a stainless steel liner inside a masonry chimney
  • Can accept up to two hot air ducts to send warm air as far as 30 feet away
  • Block-Off Shield for Four Seasons Configuration (Indoor/Outdoor Installation)

Specifications

SpecificationsSupreme Duet See-Thru Fireplace
Heat Capacity2,000 square feet
Maximum Heat Output100,000 BTUs/hour (based on a 30 lb load of wood)
Firebox Size3.1 cubic feet (EPA)
Glass Viewing Area332 square inches per door
Flue6 inch listed to UL 103/ULC S629
Tested and ApprovedEPA 28 & 5G option 3, CSA B-415.1.10, UL 127-2011 and ULC S610-M87
Emissions:3.6 g/hour with EPA method 28 & 5G 2.2 g/hour with CSA method B-415.1.10
