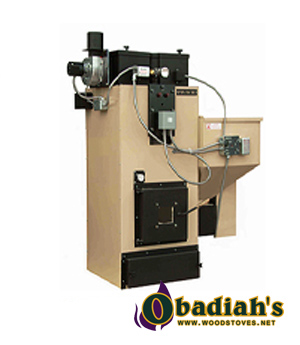

About the PB-150 Traeger/Pinnacle Pellet/Corn Boiler - Discontinued*
*PRODUCT DISCONTINUED - This page is for informational purposes only.
Whether you're replacing an old system, starting from scratch, or adding to an existing system, this boiler is the one for you.
This outstanding water heater operates under the same principles as any other boiler, however it operates on bioenergy. The boiler is wood pellet or corn fired. If you want versatility, we've got it. Use this boiler to heat concrete floors, radiators, duct coils, hot tubs, as well as domestic hot water.
PB-150 Features:
Domestic hot water coil
Triple aquastat
Safety relief valve 535,000 BTU/HR 30 PSI
Hydronic water pump
Safety disc lockout
Temperature/altitude gauge
National Board Stamping
ASME Certified
Low water cut-off switch
Click here for Single Line PEX Pipe
Click here for Dual Line PEX Pipe
Specifications
| Specifications | PB-150 |
| BTU Input | 85,000 to 130,000 BTU/hr |
| Overall Efficiency | 80% |
| Approx Heating Capacity | 2,000 - 4,000 sq ft |
| Height | 62" |
| Width | 47" |
| Depth | 29" |
| Hopper Capacity | 160 lbs standard |
| Weight | 585 lbs |
| Flue Size | 4" Pellet Vent |
| Power Requirements | 110 Volts / 15 Amps Max / Surge Protection Required |
| Supply Tapping | 1.25" N.P.T. |
| Return Tapping | 1.25" N.P.T. |
| Relief Value Tapping | 3/4" |
| Breach | Left Side |
| Domestic Hot Water Coil (Gallons per Minute) | 5 GPM |
| Water Content (Gallons) | 16 Gal |
| Measured From | Standard Non-Combustible Clearances |
| Front | 24" / 610mm |
| Sides | 6" / 152mm |
| Rear | 6" / 152mm |
| Chimney Connector | 18" / 460mm |
