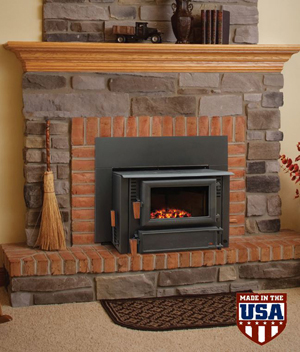

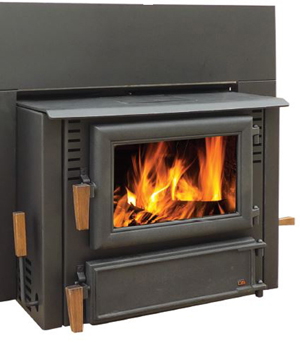

DS High-Efficiency Hopper Fed Coal Insert
DS Stoves · 2 documents
About
Since 1980, DS, a family-owned business in Lancaster, Pennsylvania, has made sincere efforts to have the most competitive and the highest quality product available and it shows in the products they manufacture. Traditional craftsmanship defines each product from wood and coal furnaces to custom metal fabrication. With a goal of high efficiency and low maintenance,
along with superior quality, DS products are built to last a lifetime. Designed for the first floor or basement of a home, the DS Anthra-Max features an innovative smoke and gas re-burn system to heat up to 2,000 square feet of your home. Call Obadiah's for yours today!
- Burns Coal
- Easy Liner Attachment from inside of firebox
- Front loading
- Built from heavy plate steel
- Superior cast Iron Shaker grates
- Cast Iron Airtight doors with knife-edge seals
- Gravity fed coal hopper
- Dust-free exterior Shaker handles
- 24-48 hour burn times
- Removable firebrick retainers (bolt-on)
- SS secondary re-burn baffle
- Adjustable air wash
- Bi-metal draft regulator (proven for 25+ years)
- Extra-wide ashpan (for minimum ash spillage)
- Large 15" x 9" glass viewing window
- Made in the USA
Specifications
| Anthra-Max Coal Stove Insert | Specifications |
| Fuel | Coal |
| Heating Area (square feet) | 2,000 |
| Efficiency | 82% |
| BTU/hr | 90,000 |
| Firebox Size (W x D x H) | 16" x 18" x 11" |
| Firebox Volume (cubic feet) | 1.8 |
| Firebox Height to Hopper | 9 1/2" |
| Firebox Height | 11" |
| Hopper Door Size (W x D) | 7 1/2" x 8 1/2" |
| Top door size (W x H) | 18" x 11 3/4" |
| Ash pan size | 2 3/4" high |
| Top exhaust/size | 6" |
| Coal Hopper Capacity | 20 lbs |
| Coal volume with hopper | 80 lbs |
| U.L tested | Yes |
| Weight | 480 lbs |
| Warranty | 5-year limited |
| Blower | Max CFM 220 |
