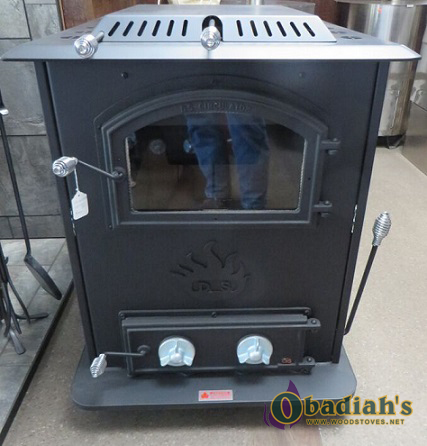

DS Stoves 1400 Circulator Coal Stove

No Electricity Needed - Burn Time 24 to 48 hrs!!!

The DS1400 Circulator is Amish made and is built for natural circulation of heat – no electricity or fan needed!  The stove’s heat is moved by natural convection – heat is transferred by means of currents in the air.  The automatic secondary air makes for a clean and efficient burn and the heat of the DS 1400 stove is easily controlled by one knob.   The 1400 circulator is manufactured in the USA and is UL listed.  UL listing of The DS circulator is for coal use only.

The DS1400 circulator by D.S. Machine Stoves is Amish designed and hand crafted to provide heat for the home and be clean burning and amazingly efficient without the use of fans or electricity.





The heated air from the heat exchanger tubes of the coal stove continues to rise until it has cooled by transferring its thermal energy to the rest of the surrounding air and falls back down to the heat source at which point a convection cycle will begin.





Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS1400 also has the following features.



Features:

• Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)
• Heat exchanger tubes through the firebox
• Gravity fed coal hopper – holds 60 lbs.
• Removable coal hopper

• Cast iron doors and grates

• Burn time 24 to 48 hours
• Exterior shaker handle minimizes ash dust
• Bimetal draft regulator
• Automatic secondary oxygen
• Heat from stove adjusted with only one knob on hot air regulator





Options:

• Available with warming shelf
