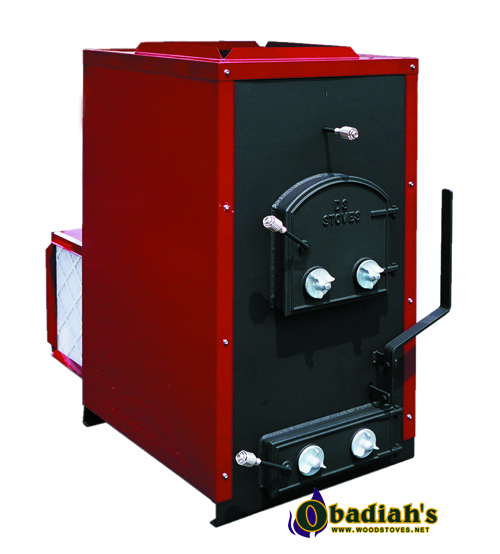

DS Stoves 300-09 Kozy King Furnace

The Kozy King DS300-09 coal furnace is Amish made and is built for maximum efficiency and less fuel consumption. This coal furnace's efficiency is partly due to it being fully automatic with a secondary afterburn. The Kozy King is manufactured in the USA and is UL listed.

The DS300-09 Kozy King coal burning furnace by D.S. Machine Stoves is Amish designed and hand crafted to be clean burning and amazingly efficient - the 300-09 furnace has 85.1% efficiency! Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS300-09 also has the following features.

Features:

• Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)
• Cast iron shaker grates
• Cast Iron, airtight fire and ash door
• Large loading door

• Large ash pan
• 3-speed blower
• 3/16” plate steel
• Fully automatic
• Wall thermostat controlled
• Fan and limit safety controls
• Cast iron baffle
• Special tubes through fire box for maximum heat circulation

• Removable oxygen afterburner
• Forced draft
• Insulated cabinet
• 80/20 combustion bypass
• Filter box left or right intake (18” x 18”)

Specifications	DS Stoves Kozy King DS300-09 Furnace
Fire box size	16" X 22"
Fire Chamber Volume	6.2 cu. ft.
Weight	730 lbs
Width	28.5”
Height	53”
Depth	29”
Depth including filter box	47”
Fuel	Anthracite Coal
Flue size*	8”
Warranty firebox	5 years
Height to center of flue	47”
Ash door size	5.5” X 16.5”
Load door size	14” X 14.5”
Heating sq. ft.	Up to 3,000 sq. ft.
BTU rating	140,000
Blower capacity, 3-speed	1650-1350, 1100 cfm
Blower Static Pressure Low	-1.47 psig
Blower Static Pressure High	-1.42 psig
Plenum outlet size	18” X 18”
Efficiency	85.1%
Clearance from combustibles
Side and rear	18”
Front	48”
Top of plenum to ceiling	2”
Flue to wall	18”
