DS Stoves Comfort Max 75 Furnace

DS Stoves · 1 document

About

NEW PRODUCT from DS STOVES!

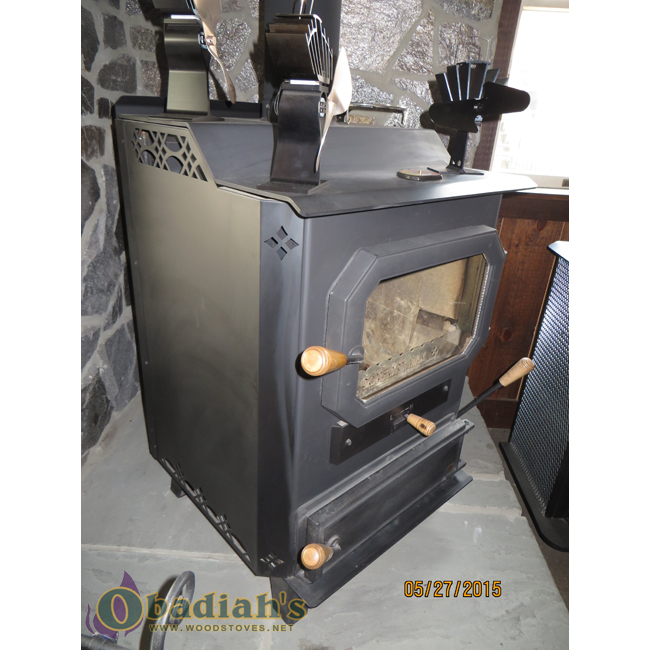

The DS Comfort Max 75 is manufactured with integrity in the USA and would be a comfortable addition to any home.  The glass panel in the door and wood handles also give this stove a unique beauty. The Comfort Max 75 furnace is Amish made and is built for maximum efficiency and less fuel consumption.  This high quality coal furnace heats up to 1800 square feet and is built for a smaller home or workshop.

The Comfort Max 75 furnace by D.S. Machine Stoves is Amish designed and hand crafted to be clean burning and efficient.  The furnace also has some nice optional features including a couple different baffle options to help maximize stove efficiency.

Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS75 also has the following features.



Features:

  • Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)

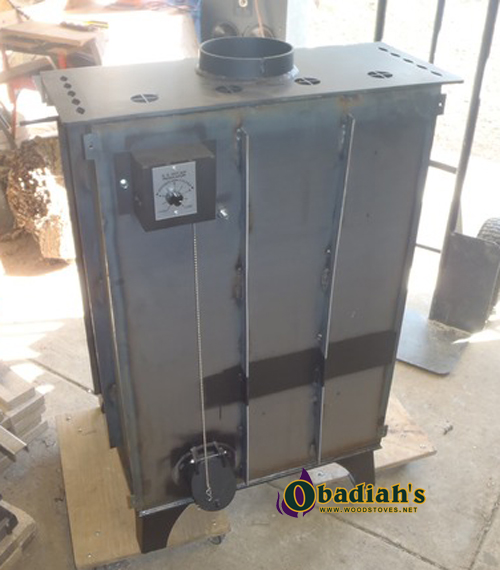

  • Controlled with a bi-metal draft regulator
  • Exterior shaker handle for dust-free shake down

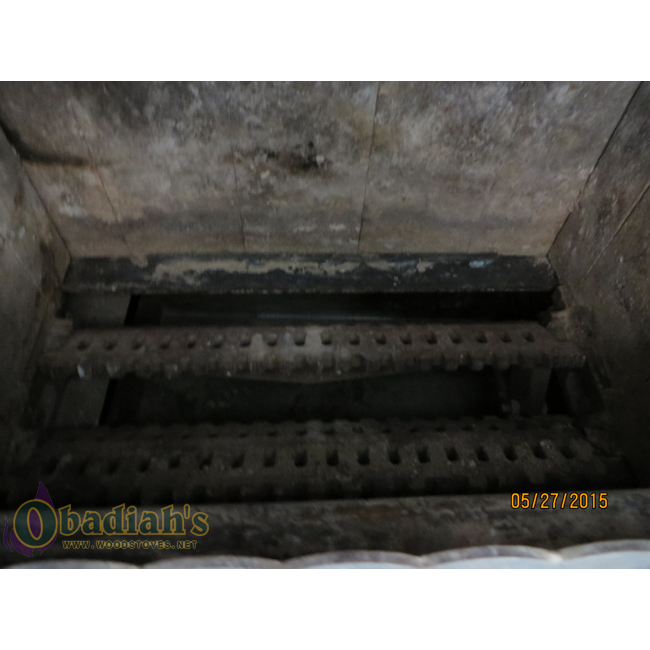

  • Cast iron doors and grates





Options:

  • Blower, 160 CFM
  • Insulated baffle, 10 5/8” X 20 3/16”
  • 2-piece cast iron downdraft baffle







Specifications

SpecificationsDS Stoves Comfort Max 75 Furnace
Width26.25”
Height39"
Depth24"
FuelAnthracite Coal
Heating AreaUp to 2,000 sq. ft.
Heating Output70,000 BTU's
Efficiency92%
Firebox Dimensions19” x 12”
Firebox Door Dimensions18" x 12"
Firebox Volume2.3 cu. ft.
Log Size18”
Ash Door Dimensions19" x 5.5"
Flue6”
Weight595 lbs
Clearances
Rear18"
Sides12"
Front48"
Flue/Stove Pipe18"
Ceiling36"
