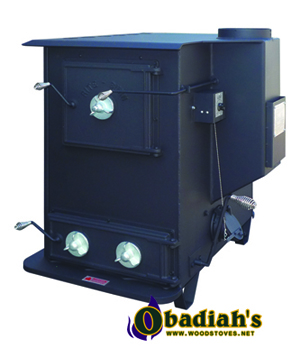

DS Stoves DS1624 Econo Riteburn Coal Stove
DS Stoves · 1 document
About
The DS1624 Riteburn is manufactured in the USA and is UL listed. The DS Stoves DS1624 Econo Riteburn Stove is Amish made and is built for natural circulation of heat – no electricity or fan needed! This coal stove is built based on a time tested design, downdrafting, to extract maximum heat – patented in 1869!
This stove is a downdrafter (also called baseburning). Air is drawn down and the smoke and exhaust pulled through to extract maximum heat. Downdraft stove designs like the 1624 are making a comeback with its efficiency and clean burn properties including less creosote troubles. The DS1624 Econo Riteburn circulator by D.S. Machine Stoves is Amish designed and hand crafted to provide heat for the entire home or workshop and have a clean burn and high efficiency amazingly without the use of fans or electricity.
Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS1624 Econo Riteburn also has the following features.
Features:
- Cast iron door and grate
- Bimetal regulator
- Heavy 7 gauge steel top 10 gauge steel sides
- UL listed
- Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)
- Oxygen reburn
- Downdrafter
Options
- Sheet metal kit
- Door available righthand or lefthand
Specifications
| Specifications | DS Stoves DS1624 Econo Riteburn Stove |
| Width | 29.5" |
| Height | 36" |
| Depth | 30" |
| Fuel | Anthracite Coal |
| Heating Area | Up to 2,600 sq. ft. |
| Heating Output | 140,000 BTU's |
| Efficiency | 71.5% |
| Firebox Dimensions | 16” X 24” |
| Firebox Door Dimensions | 11" x 12" |
| Firebox Volume | 4.9 cu. ft |
| Log Length | 22" |
| Ash Door Dimensions | 16.5" x 5.5" |
| Flue | 7” |
| Weight | 415 lbs |
| Clearances | |
| Side | 24" |
| Side Door | 48" |
| Rear | 30" |
| Front | 24" |
| Flue/Stove Pipe | 18" |
| Ceiling | 36" |
