DS Stoves DS2100WH Basement Coal Stove
DS Stoves · 1 document
About
No Electricity Needed for this Stove with 24 to 48 Burn Time!!!

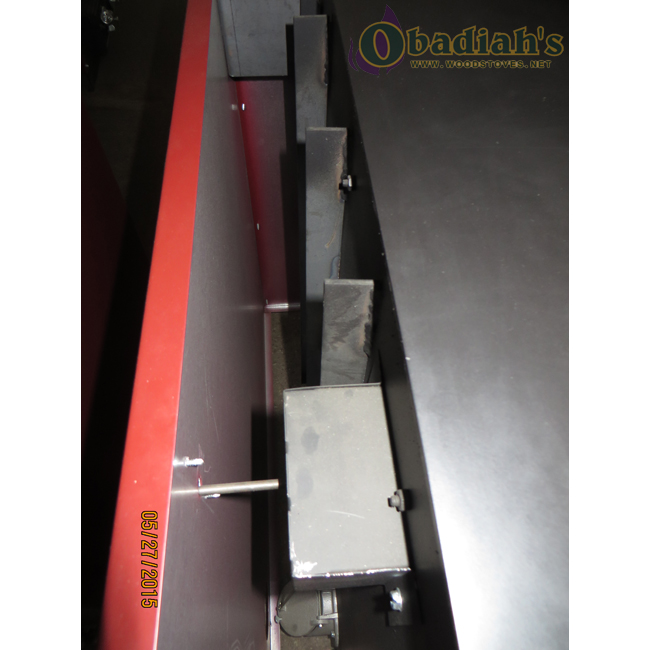

The DS2100WH Basement coal burning stove is Amish made and is built for maximum efficiency and less fuel consumption. This high quality coal stove is built with side jackets that maximize heating efficiency and put the 2100WH stove into the furnace category with the ability to heat the whole home from the basement. The DS2100WH is manufactured with integrity in the USA and is UL listed.
The DS2100WH coal furnace by D.S. Machine Stoves is Amish designed and hand crafted to be clean burning and efficient. The clean coal burning furnace is hopper fed giving it a long lasting 24 to 48 hour burn time and the glass door allows fire viewing.

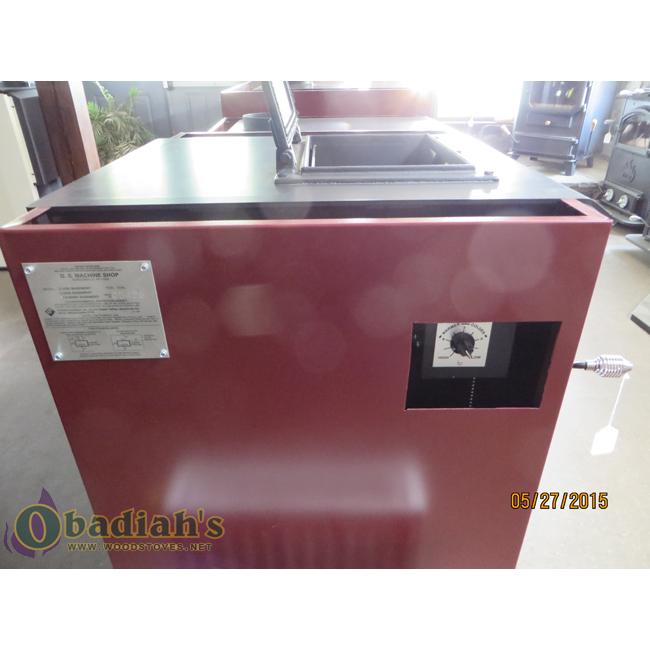

Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the 2100WH also has the following features.
Features:
- UL listed
- Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)

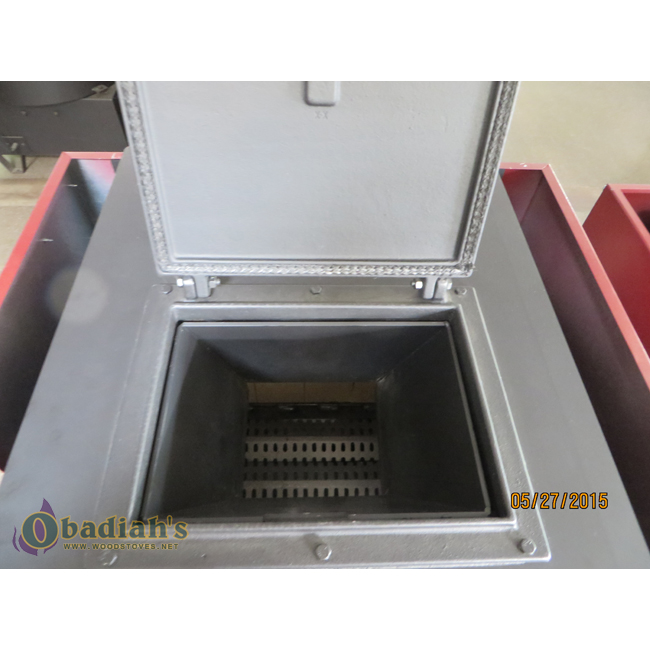

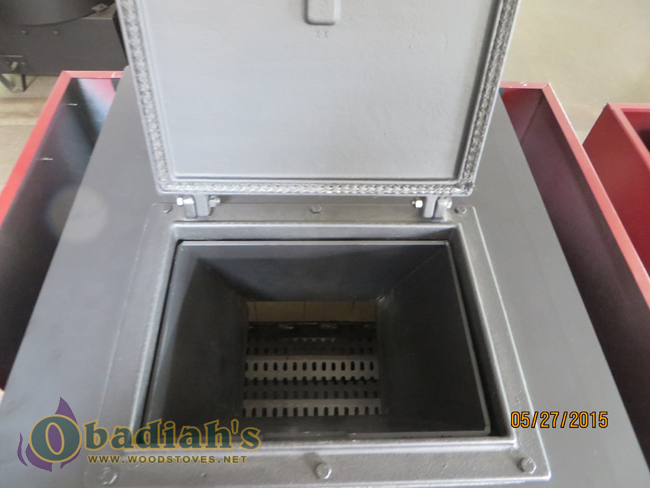

- Removable coal hopper
- Exterior shaker handle for dust-free shake down
- Cast iron doors and grates
- Glass in door
Options:
- Available in burgundy or galvanized sides
Specifications
| Specifications | DS Stoves DS2100WH Basement Stove |
| Width | 27.75" |
| Height | 40" |
| Depth | 27" |
| Fuel | Anthracite Coal |
| Heating Area | Up to 3,000 sq. ft. |
| Heating Output | 130,000 BTU's |
| Efficiency | 80% |

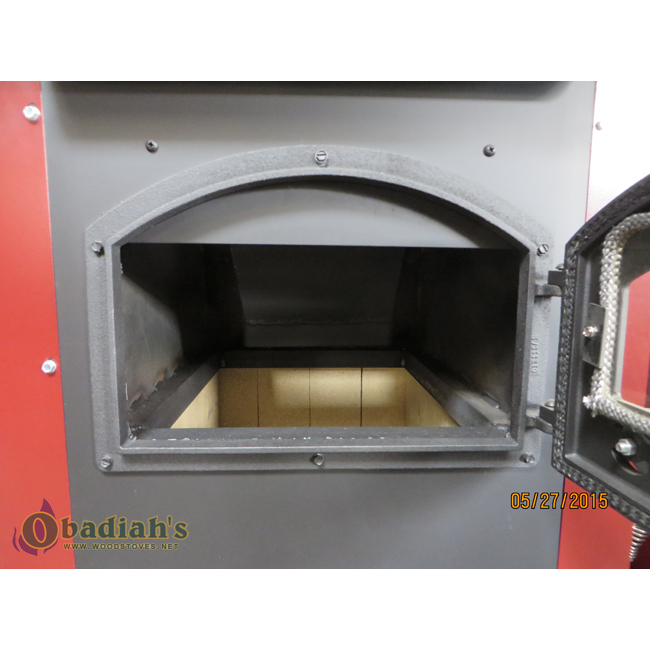

| Firebox Dimensions | 16” x 20” |
| Firebox Door Dimensions | 16" x 10.5" |
| Firebox Volume | 4.0 cu. ft. |
| Log Length | 18" |
| Ash Door Dimensions | 16.5" x 5.5" |
| Flue | 6” |
| Weight | 540 lbs |
| Coal Hopper Capacity | 60 lbs |
| Approximate Coal Volume with Hopper | 135 lbs |
| Clearances | |
| Side | 18" |
| Rear | 24" |
| Front | 48" |
| Flue/Stove Pipe | 18" |
| Ceiling | 36" |

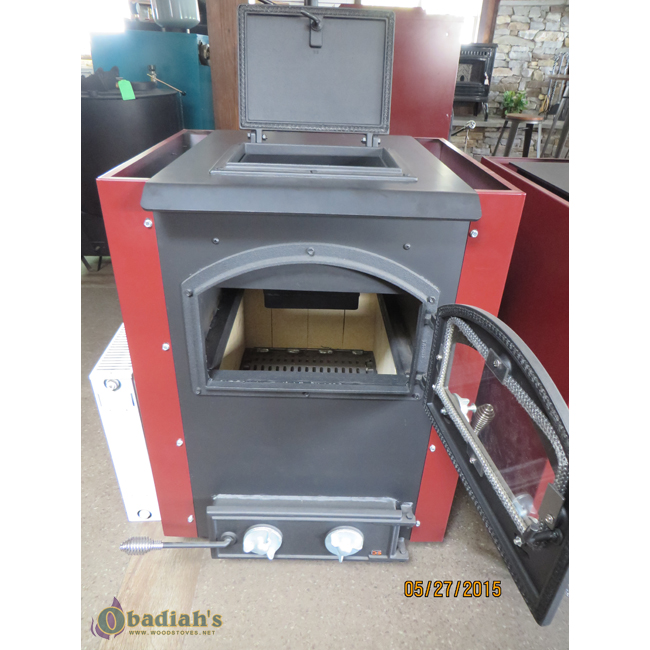

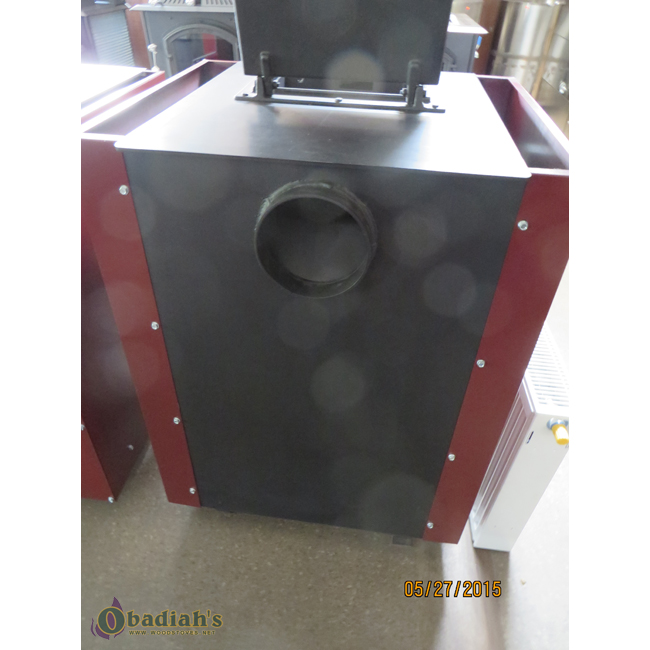

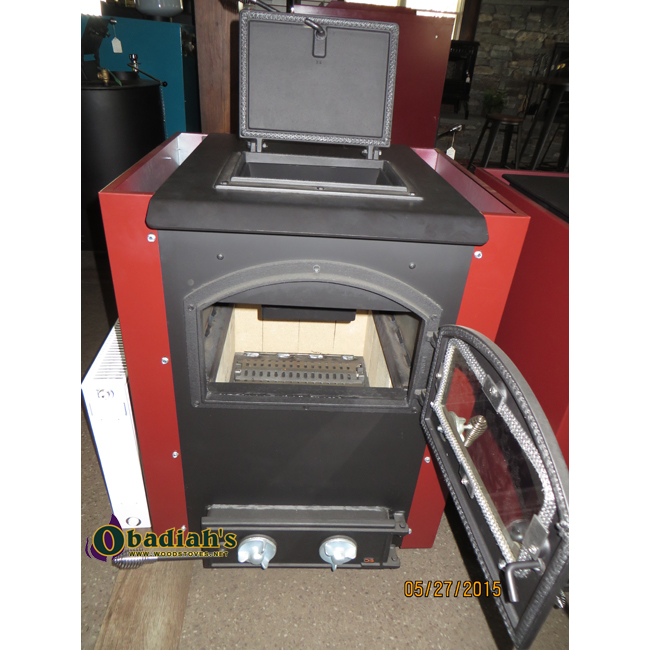

Photos
