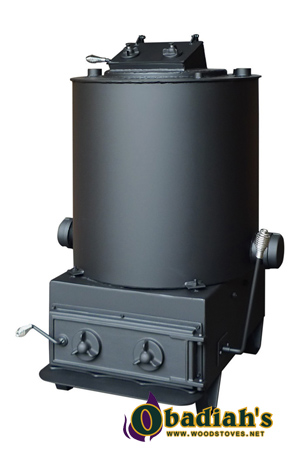

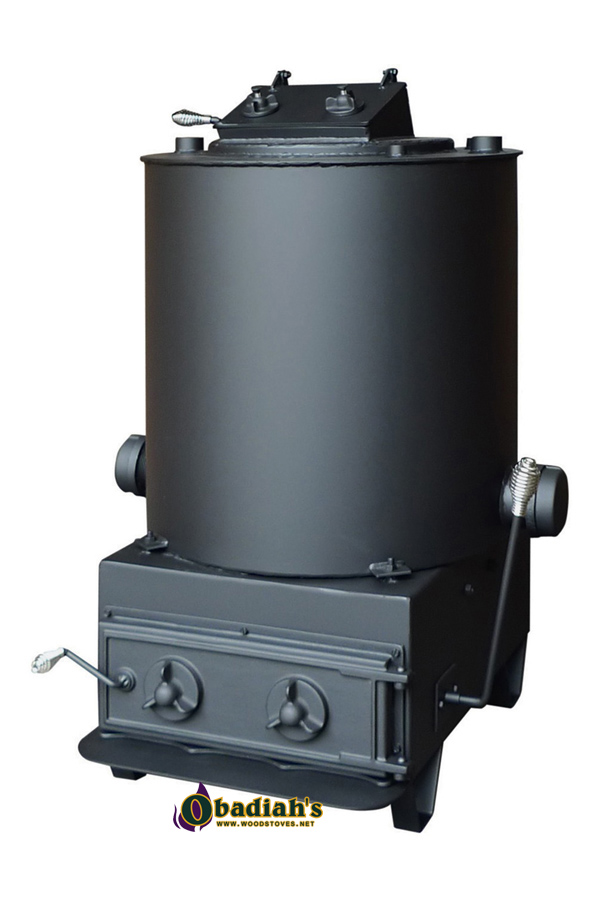

DS Stoves DS1530 Specialty Veal Coal Boiler
DS Stoves · 1 document
About
DS Stoves engineers and fabricates specialty boilers ranging from domestic and home heating to farm related needs. For green houses, veal growers, hog barns or milk houses, burning wood or coal, we have the boiler you need. If you can imagine it, DS Stoves can build it. Hand crafted and made in the USA, this easy to operate coal boiler is built to last. Order yours from Obadiah's Woodstoves today!
Features:
- Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)
- Designed to heat water for veal calves
- Feeds up to 300 calves
- Tank built from 304 stainless steel with lid
- Designed to work with a 500+ gallon tank
- 2-3" clean out parts at bottom of tank
- This unit can also be used for other types of heating
Options:
- Water coil
Specifications
| Specifications | DS Stoves DS1530 Specialty Veal Coal Boiler |
| Fuel | Anthracite Coal |
| Heating Area | Up to 1,800 sq. ft. or 500 gallons of water |
| Heating Output | 73,000 BTU's |
| Width | 24" |
| Height | 35" |
| Depth | 24" |
| Firebox Size | 15" diameter x 24" H |
| Firebox Volume | 4.0 cu. ft. |
| Firebox Door Size | 9.5" x 6.5" |
| Ash Door Size | 16.5" x 5.5" |
| Flue | 6" |
| Water Capacity | 32 Gallons |
| Weight | 360 lbs. |
| Clearances | |
| Side & Rear | 18" |
| Front | 48" |
| Flue/Stove Pipe | 18" |
| Ceiling | 36" |
