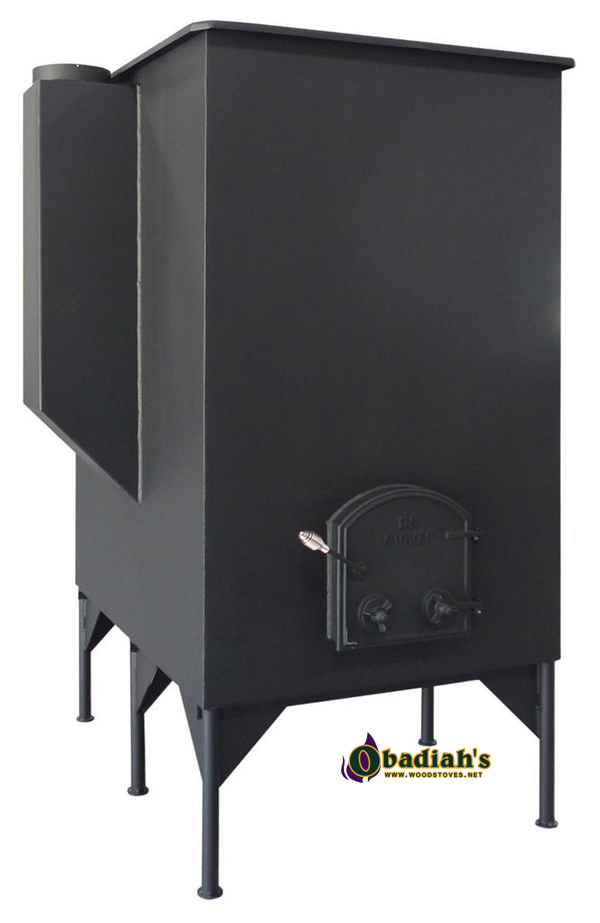

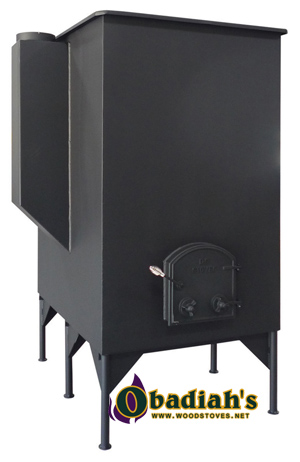

DS Stoves DS300 WVB Specialty Wood Boiler
DS Stoves · 1 document
About
DS Stoves engineers and fabricates specialty boilers ranging from domestic and home heating to farm related needs. For green houses, veal growers, hog barns or milk houses, burning wood or coal, we have the boiler you need. If you can imagine it, DS Stoves can build it. Hand crafted and made in the USA, this easy to operate wood boiler is built to last. Order yours from Obadiah's Woodstoves today!
Features:
- Designed to heat water for veal calves
- Feeds up to 250 calves
- Tank built from 304 stainless steel with lid
- A wood fired boiler that can heat water to 180 degrees in 30 minutes
- 64.5 sq. ft. heating surface
- Exhaust and fittings can be placed on either side
- Firebrick lined firebox
Options:
- Float valve on top (1" NPT)
- Drain 43" from floor (side 1.5" NPT)
Specifications
| Specifications | DS Stoves DS300 WVB Specialty Coal Boiler |
| Fuel | Wood |
| Heating | Veal Boiler |
| Heating Output | 400,000 BTU's |
| Width | 40" |
| Height | 84" |
| Depth | 52" |
| Firebox Size | 40" W x 52" D |
| Firebox Volume | 24.0 cu. ft. |
| Log Size | 48" |
| Firebox Door Size | 14" x 14.5" |
| Flue | 8" |
| Water Capacity | 300 Gallons |
| Weight | 1350 lbs. |
| Clearances | |
| Side & Rear | 24" |
| Front | 48" |
| Flue/Stove Pipe | 18" |
| Ceiling | 24" |
