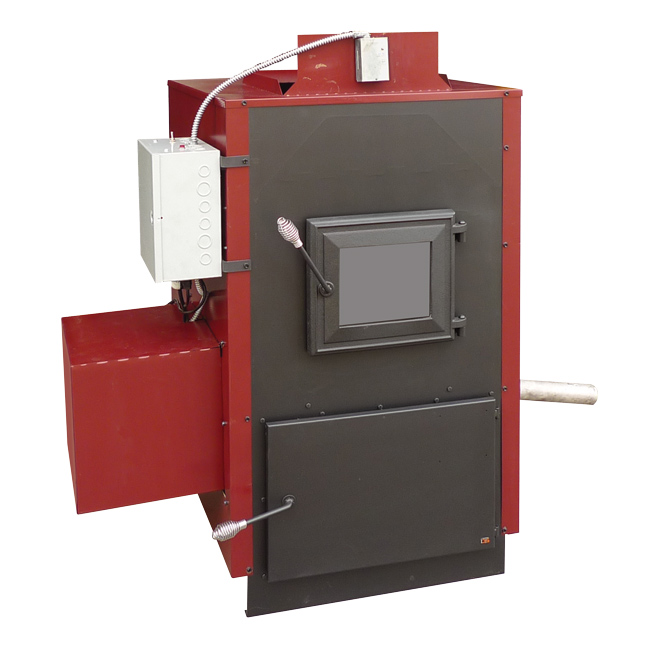

DS Stoves Stoker Forced Air Coal Furnace
DS Stoves · 1 document
About
The DS Stoves Stoker Furnace is a twin to the Stoker Boiler. The difference being “hot air” vs. “hot water”. Constructed with a "built to last" attitude, this auger-fed stoker is designed to work with an optional 500 lb. hopper or coal bin, giving many hours of burn time.
With an output of up to 200,000 BTUs, the DS-SF250 heats up to 5000 sq. ft.
Features
- Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)
- 82.8% Effieciency
- Auger-fed round fire pot with complete breakdown “floating” design
- RH or LH feed option
- Outfire sensor
- Variable speed combustion blower and auger
- Special tubes through the firebox for maximum heat exchange
- Made in the USA
- UL Tested
Options
- 5ft. Auger & Pipe Kit
- 8ft. Auger & Pipe Kit
- Optional Stainless Steel 500lb. Hopper
- Optional 4 or 5 GPM Stainless Steel Domestic Water Loop
Specifications
| DS Coal Furnace | Stoker DS-SF250 |
| Fuel | Anthracite Coal |
| Heating area (recommended) | 1000-5000 sq. ft. |
| BTU Output | 50,000-200,000 |
| Efficiency | 82.8% |
| Rear exhaust/size | 8" |
| Plenum inlet and outlet | 18" x 18" |
| 3-Speed Blower CFM | 1100, 1350, 1600 |
| U.L. Tested | Yes |
| Weight | 850 lbs. |
| Warranty | 5-year limited 1-year electrical |
| Overall Dimensions | 30.75"W x 36"D x 51"H |
Photos
Need help with this?
We have sold and serviced these appliances since 1999. If you need a part or advice, call us.
406-300-1776
