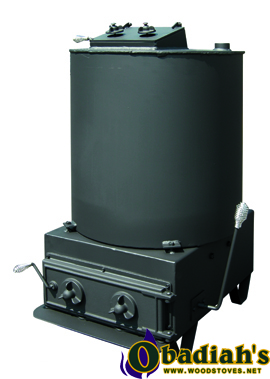

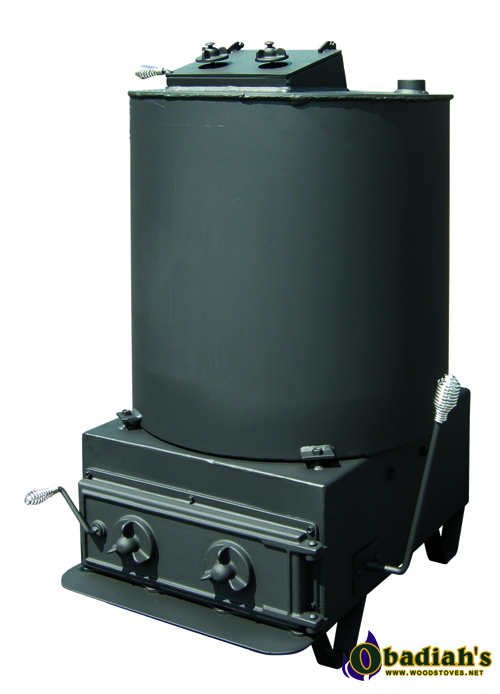

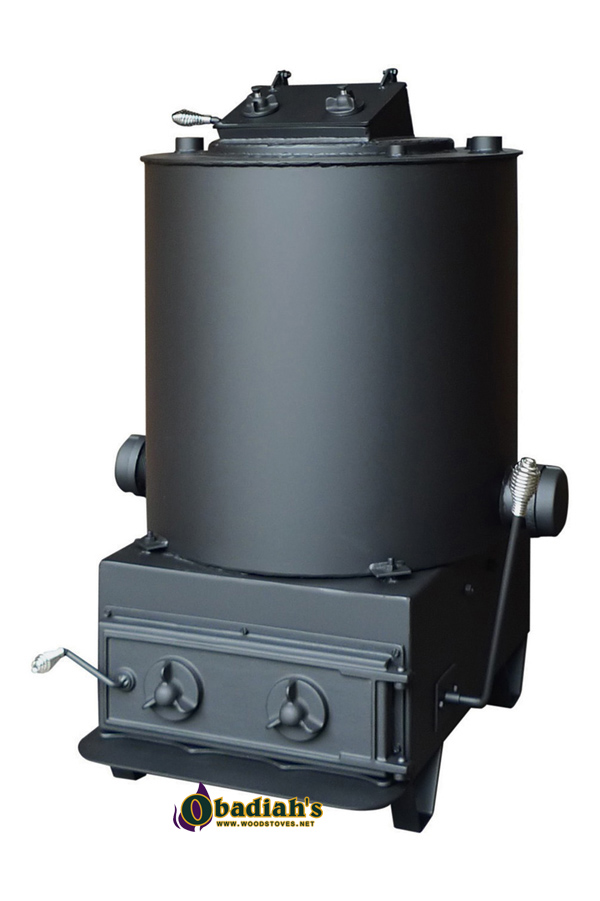

DS Stoves DS9158C Specialty Coal Boiler
DS Stoves · 1 document
About
A good quality low cost boiler by DS Stoves!!!
The DS9158C Coal Boiler by D.S. Machine Stoves is Amish designed and hand crafted for maximum efficiency and less fuel consumption. The superior quality, low cost clean burning coal boiler provides an effective method of heating up to a 2,500 sq.ft. space.
The DS9158C is made with integrity in the USA by an industry leading wood and coal boiler manufacturer, DS Stoves.
DS Machine Stoves coal boiler units are Amish made and built to last. The DS9158C boiler’s design and engineering are based on 30 years of experience and is a nice option for heating small areas. The clean burning and efficient coal boiler, which is also available in stainless steel, has an equally nice lower cost.
Burns Anthracite Coal only. (Note: Does not burn Bituminous Coal.)
Click here for Single Line PEX Pipe
Click here for Dual Line PEX Pipe
Specifications
| Specifications | DS Stoves DS9158C Boiler |
| Fuel | Anthracite Coal |
| Heating Area | Up to 2,400 sq.ft. |
| Heating Output | 105,000 BTU's |
| Efficiency | 78% |
| Width | 29.75” |
| Height | 41.5" |
| Depth | 32" |
| Firebox Size | 18” diameter x 24” H |
| Firebox Volume | 5.0 cu. ft. |
| Firebox Door Size | 9.5" x 6.5" |
| Ash Door Size | 16.5" x 5.5" |
| Flue Size | 6” |
| Water Capacity | 32 gallons |
| Weight approx. | 444 lbs |
| Clearances | |
| Side & Rear | 18" |
| Front | 48" |
| Flue/Stove Pipe | 18" |
| Ceiling | 36" |
