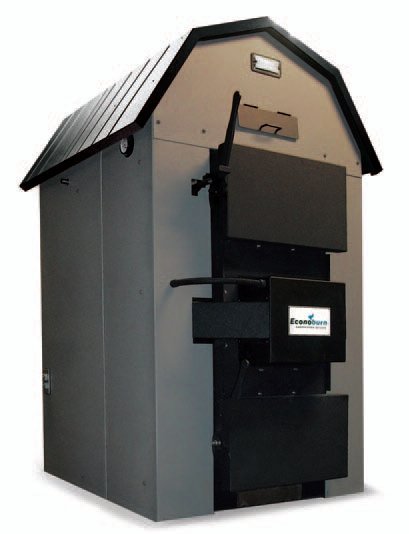

EBW 150 O Econoburn Outdoor Boiler - *Not for Sale in United States*
Econoburn · 2 documents
PDF
Brochure
Brochure-Residential-Commercial-Heating-Solutions.pdf · 793 KB
PDF
Manual
Econoburn-Manual.pdf · 987 KB
About
This product is not available in the United States due to stricter 2016 EPA NSPS regulation. This model has been replaced by the Econoburn 170-200 EPA Certifed Outdoor Wood Boiler for the U.S. Market. Inventory on the non-EPA boilers can no longer be sold in the United States. Remaining inventory can be sold into Canada, and South America.
Setting the standard in fuel efficiency, the Econoburn wood gasification biomass boiler is built to rigorous standards for unbeatable quality, reliability, and ease of use. Able to easily be installed with your existing commercial or residential heating system, Econoburn provides your home with the utmost in convenience, fuel efficiency and savings.
*TO BE DISCONTINUED in United States - JAN. 2016*
Features
- Burns half the wood of a normal wood stove, saving the homeowner money
- Able to integrate into any already existing hot water boiler or furnace system
- Achieves 87% thermal efficiency
- Clean burn, leaving little residual ash, creosote, or ash
- Double-welded 1/4" ASME grade 36 carbon steel
- Sizes available from 100,000 to 500,000 BTU
- Covered with an exceptional 25 year warranty
- This model is available with an ASME certification for commercial applications
Specifications
| Specifications | Econoburn EBW-150-O |
| BTU Output (MBH) | 150,000 |
| Thermal Efficiency | 87% |
| Ship Weight (lbs) | 1,805 |
| Boiler Dimensions | |
| Depth | 54.25" / 137.8cm |
| Width | 48.4" / 122.9cm |
| Height | 80" / 203.2cm |
| Weight Empty | ~1,800lbs / 816kg |
| Firebox Dimensions | |
| Depth | 23" / 58.4cm |
| Width | 16" / 40.6cm |
| Height | 28" / 71.1cm |
| Maximum Log Length | 21" / 53.3cm |
| Firebox Door Height | 12" / 30.5cm |
| Firebox Door Length | 15.75" / 40cm |
| Piping Data | |
| Water Volume | 37 Gal / 140 L |
| Supply Pipe (female connection) | 2" |
| Return Pipe (female connection) | 2" |
| Min Boiler Loop Size | 1-1/2 " |
| Fill / Drain Valve Size | 1-1/2" |
| Flue Dimensions | |
| Flue Outlet Diameter | 8" |
| Height to Center of Flue | 50.75" |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
