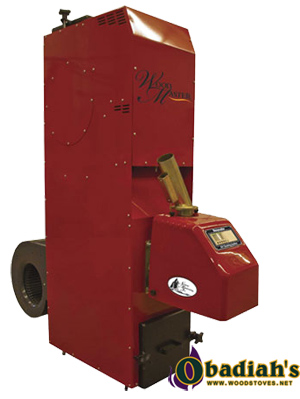

Force 20/30 WoodMaster Pellet Furnace - Discontinued
WoodMaster · 6 documents
PDF
Cleaning Instructions
Force-Cleaning.pdf · 1.1 MB
PDF
Features
Force_20_features_Color.pdf · 5.1 MB
PDF
Installation Manual
Force-Installation.pdf · 1.1 MB
PDF
Owner's Manual
Force-20-Manual-6-6-19.pdf · 8.9 MB
PDF
Owner's Manual
Force-30-Manual-6-6-19.pdf · 6.2 MB
PDF
Warranty
Force-Warranty.pdf · 237 KB
About
THIS PRODUCT HAS BEEN DISCONTINUED, THIS PAGE IS UP FOR INFORMATIONAL PURPOSES ONLY
Powered by the Renovator Pellet Burner, the WoodMaster Force Furnace operates at a high efficiency and requires little space, making it perfect for the garage, workshops and homes.
Features
- Wood pellets offers an efficient heat source
- The 20 kW Renovator unit heats approximately 68,000 BTU
- The 30 kW Renovator unit heats approximately 102,000 BTU
- Automatic ignition for heat on demand
- Air Cleaned Firepot to help keep maintenance to a minimum and retain high efficiency
- Easily connects to existing systems, convert your fossil fuel heat to pellets for independence from foreign oil
- Fully automatic PLC for user friendly operation
- Includes Air Compressor
- Compact design that easily fits into tight areas
- Burn back protection to keep everyone safe
- Includes Hopper for pellet storage/feeding
Specifications
| Specifications | WoodMaster Force 20 Pellet Furnace / Woodmaster Force 30 Pellet Furnace |
| Heat Output | 68,000 BTU/hr / 102,000 BTU/hr |
| Measurement | 53.1"W x 55.1"H x 13.2"D / 61.2"W x 58.3"H x 18"D |
| Connection Hole Diameter (Burner) | 6" / 6" |
| Flue Pipe Diameter | 5" / 6" |
| Power Connection | 120v / 120v |
| Fan Capacity | 1100-1638 CFM / 1100-1638 CFM |
| Ash Box Volume (Cubic Feet) | 1 / 2 |
| Weight | 220 lbs. / 320 lbs. |
This model is no longer sold new. Its manuals stay here, and we still supply parts.
