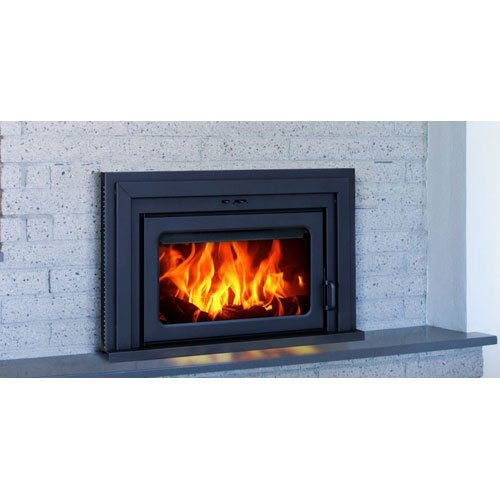

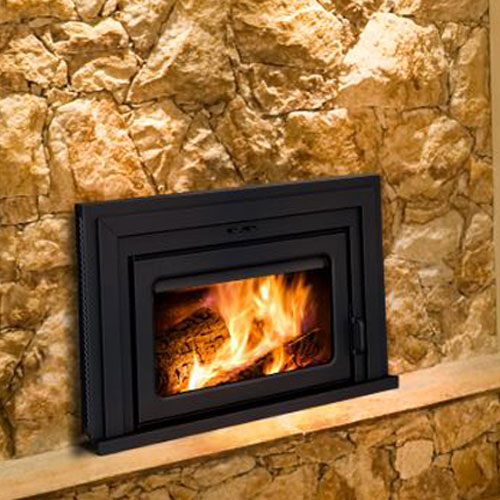

Supreme Fusion 24 Wood Burning Fireplace Insert

Supreme · 1 document

About

The Fusion's cutting-edge style is perfectly paired with the quality of its engineering, which was honed for more than 30 years with research and development. By meeting EPA's highest emission standards, the Fusion 24 is the perfect choice for homeowners wanting to convert an outdated fireplace into an environmentally friendly unit that will efficiently heat space without compromising on any aesthetic appeal.

Fusion's cutting-edge style is perfectly paired with the quality of its engineering, which was honed for more than 30 years with research and development. This fireplace insert has three patented technologies for your convenience. With just the push of a button, you can instantly ignite your fire and produce long-lasting heat that releases fewer emissions. The advanced dual-fan system is hushed yet very powerful as it distributes heat through large areas with ease. One of the most convenient assets to this firebox is that it is completed by its built-in barbecue grill which allows you to cook delicious meals over its embers year-round. By meeting EPA's highest emission standards, the Fusion 24 is the perfect choice for homeowners wanting to convert an outdated fireplace into an environmentally friendly unit that will efficiently heat space without compromising on any aesthetic appeal.





Features

Stainless Steel Firebox

A result of more than 30 years of pioneering research and development, Supreme's combustion chamber provides superior heat transfer; within minutes of lighting, radiant warmth will be permeating your home. Unlike traditional fireboxes built with refractory bricks, prone to cracking, Supreme's heavy-duty chamber will last the test of time. This is guaranteed with a market-leading, 25-year limited lifetime warranty.

....................................

Patented Automatic Air Control

This patented, user-friendly mechanism automatically reduces the amount of combustion air introduced during ignition to the desired burn rate setting. The result is a beautifully consistent fire burning to its full capacity.

2 Premium Blowers

This powerful yet whisper-quiet system effortlessly distributes heat over significant distances. As the combustion progresses, the high-quality blower automatically activates and is set using the variable speed controller.



 Built-In Barbeque Grill

This excellent feature offers the ability to create meals imbued with flavorful smokiness inside the comfort of your own home. Simply lower the grill once the wood has been reduced to embers and place your food inside; the result is memorable barbecued dishes all year-round.

Innovative Baffle Design

Most EPA units on the market feature secondary air tubes that hamper access to the chamber when filling it with wood and require constant maintenance and regular replacement. Instead, Supreme's products have a unique design that allows secondary air to enter through a perforated baffle offering an unimpeded viewing area to the fire all while increasing the efficiency and prolonging the combustion.



Removable Ash Lip

Offering another layer of protection against ashes, this removable accessory can be attached below the door to prevent spills when the fireplace is opened.

Patented Secondary Air Control

This patented control introduces a variable amount of secondary air into the firebox via a downward path that mixes with the rising gases of the wood. The result is a unique, appealing arrangement of flames that prolongs the combustion, increases the efficiency of the fire and minimizes the number of emissions released.



Chimney Sweeping Cap

Located on the baffle, this convenient feature allows the chimney to be easily accessed for cleaning, without requiring the removal of any additional components.

Unique Door Operations

Our finely crafted door handle has an ergonomic design and keeps the door shut by means of a latch for secure operation.





Hot Air System & Dual Air Wash System

Enjoy watching the beauty of your fire for longer thanks to this advanced design feature. Pre-heated air is forced onto the glass viewing pane, keeping it clean from soot even while burning at low temperatures.

Specifications

Supreme Fusion 24Product Specifications
Appliance TypeAdjustable Burn Rate Wood Heater - Non Catalytic
Fuel TypeDry Cordwood
Max Log Length24"
Max Burn Time10 hrs.
Firebox Volume2.4 cu. ft.
Heating area500 - 2,000 sq ft.
Average Particulate Emissions Rate4.4 g/hr
Glass Dimensions22 3/4" x 12 1/4"
EPA ProtocolEPA 28 & 5g option 3 UL 1482 & ULC S628
Efficiency HHV: 65.10%
Optimum Heat Output90,000 BTU/hr
Efficiency ProtocolCSA B-415.1.10
WarrantyLimited Lifetime
This model is no longer sold new. Its manuals stay here, and we still supply parts.
